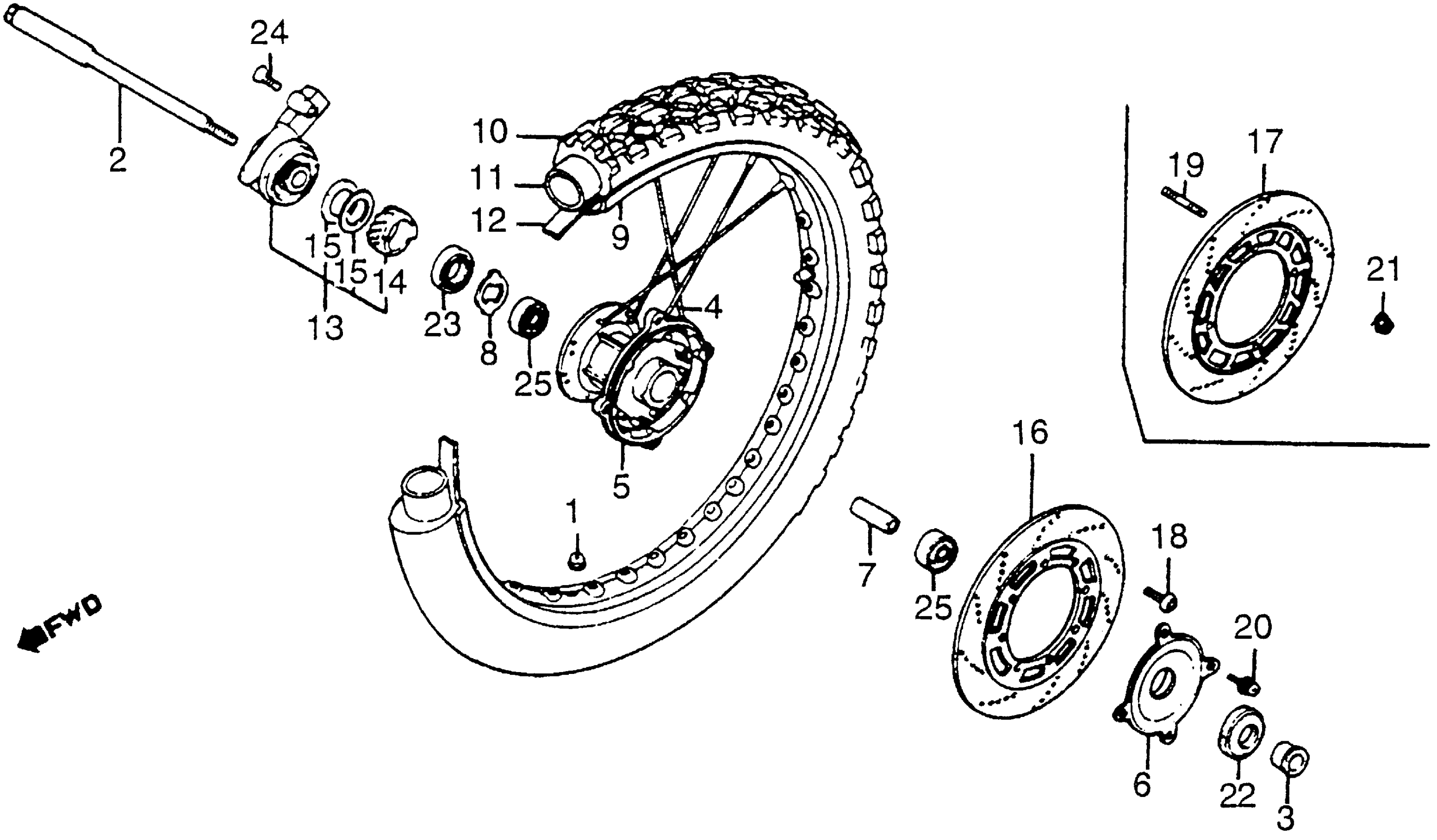

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 FRONT WHEEL Diagram

#

Description
Price

1

CAP, RIM HOLE

42717-329-000

$4.21

2

AXLE, FR. WHEEL This part replaces 44301-KF0-000.

44301-KBR-000

$62.80

3

COLLAR, FR. WHEEL

44311-MG3-000

$18.02

4

SPOKE SET (B9X228.5)

446A0-MG2-000

Unavailable

5

HUB, FR. WHEEL

44601-MG2-830

Unavailable

6

COVER, FR. HUB

44610-KL3-770

$12.50

7

COLLAR, FR. WHEEL DISTANCE

44620-MG3-000

$14.26

8

RETAINER, GEAR BOX

44680-MA0-000

$7.41

9

RIM, FR. WHEEL

44701-MG2-003

Unavailable

10

TIRE, FR. (3.00-21) (51P) (BS)

44711-KCZ-003

Unavailable

10

TIRE, FR. (3.00-21) (51P) (BS) This part replaces 44711-KV6-009.

44711-KCZ-003

Unavailable

10

TIRE, FR. (3.00-21) (51P) (BS) This part replaces 44711-MC4-671.

44711-KCZ-003

Unavailable

10

TIRE, FR. (3.00-21) (4PR) (DUNLOP)

44711-KL3-671

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-009.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-357-004.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

12

FLAP, TIRE (21)

44713-KW8-901

$3.34

12

FLAP, TIRE (21) This part replaces 44713-437-009.

44713-KW8-901

$3.34

12

FLAP, TIRE (1.40/1.60-21) (DUNLOP)

44713-400-004

$6.51

13

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-KF0-013.

44800-KF0-023

$118.23

13

BOX ASSY., SPEEDOMETER GEAR

44800-KF0-023

$118.23

14

GEAR, SPEEDOMETER

44806-KF0-000

$35.39

15

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

16

DISK, FR. BRAKE This part replaces 45351-KE1-760.

45351-KBB-900

$250.82

16

DISK, FR. BRAKE This part replaces 45351-KN5-000.

45351-KBB-900

$250.82

16

DISK, FR. BRAKE This part replaces 45351-MG2-830.

45351-KBB-900

$250.82

18

BOLT, DISK (6X17) This part replaces 90105-KA3-730.

90105-KN5-000

$3.89

18

BOLT, DISK (6X17)

90105-KN5-000

$3.89

20

SCREW-WASHER (4X8) This part replaces 90204-KA3-730.

90204-KPS-900

$1.49

22

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

22

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

23

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

23

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

23

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

24

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

25

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
