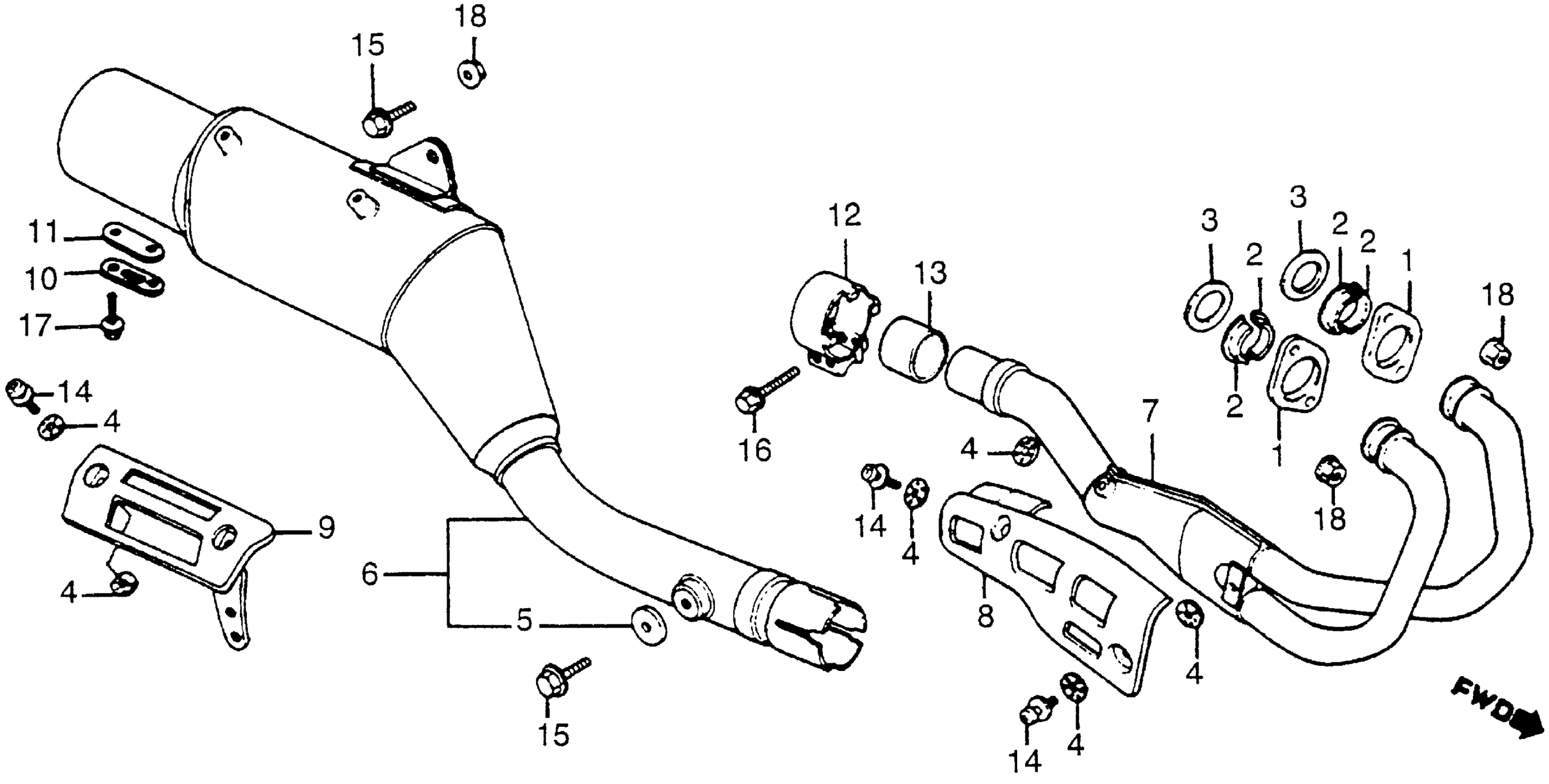

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 EXHAUST MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-KF0-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-435-000

$8.52

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

4

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

4

GASKET, PROTECTOR

18292-MM9-740

$3.03

4

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

5

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

6

MUFFLER (NOT AVAILABLE)

18310-KL3-671

Unavailable

7

PIPE, EX. (NOT AVAILABLE) This part replaces 18320-KL3-670.

18320-KF0-000

Unavailable

8

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-KF0-000

Unavailable

9

PROTECTOR, MUFFLER

18355-KG0-000

Unavailable

10

LID, MUFFLER

18373-429-010

$9.15

11

GASKET, MUFFLER LID

18374-MN1-880

$4.21

11

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

12

BAND, MUFFLER

18376-KG0-003

$18.83

13

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

13

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

13

GASKET, MUFFLER

18392-MK4-000

$13.66

14

SCREW-WASHER (6X12)

90136-MC7-000

$4.66

15

BOLT, FLANGE (8X16) This part replaces 90213-KF0-000.

96300-08016-00

$1.49

15

BOLT, FLANGE (8X16)

96300-08016-00

$1.49

16

BOLT, FLANGE (8X32)

90216-KF0-000

Unavailable

17

BOLT-WASHER (6X12)

93401-06012-07

$1.62

17

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

17

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

18

NUT, FLANGE (8MM)

94050-08000

$1.49
