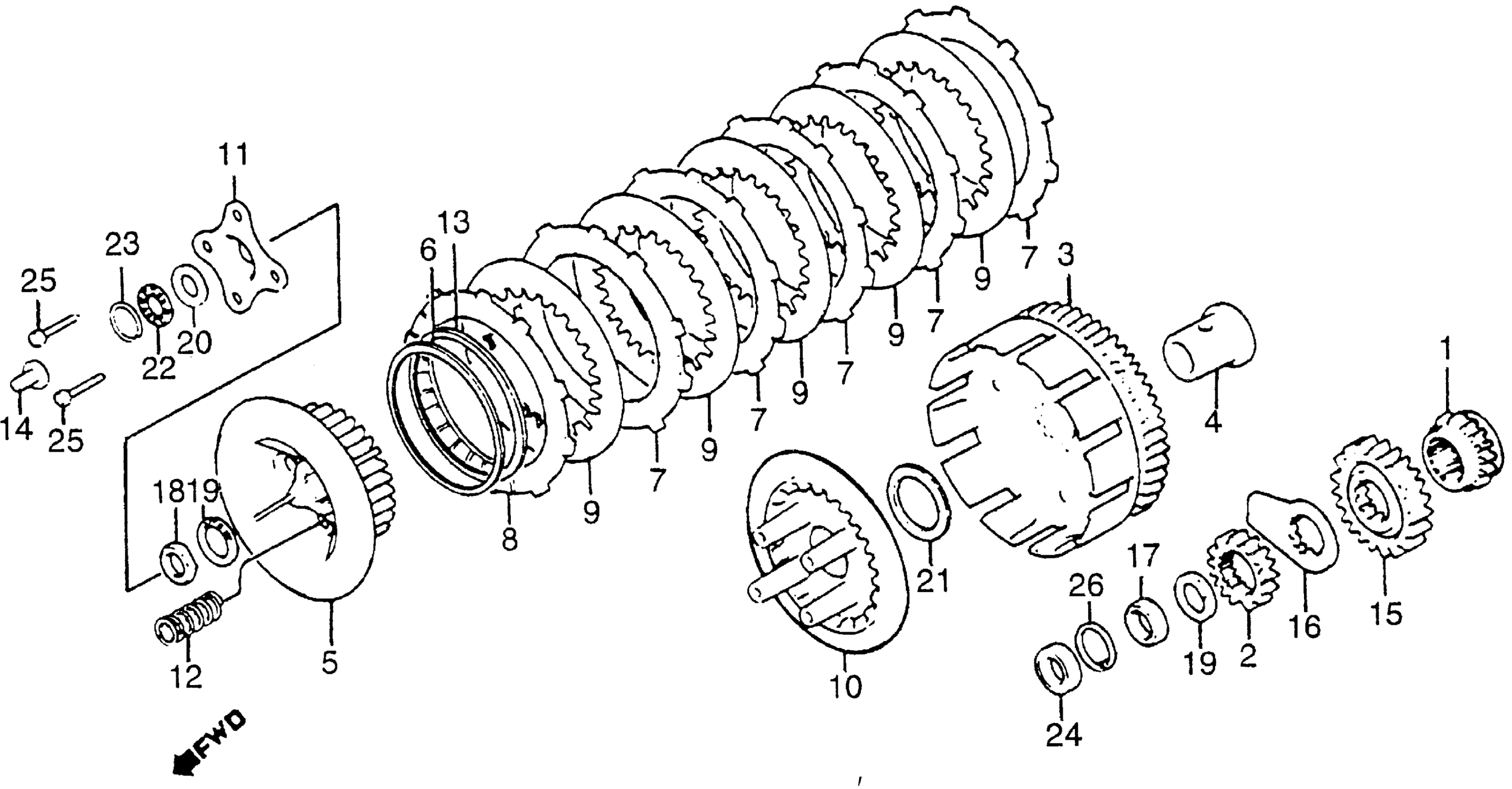

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 CLUTCH Diagram

#

Description
Price

1

SPROCKET, TIMING

14312-KF0-000

$43.72

2

GEAR, OIL PUMP DRIVE (17T)

15130-KF0-000

Unavailable

3

CLUTCH (OUTER) This part replaces 22100-KF0-000.

22100-KN5-671

Unavailable

3

CLUTCH (OUTER)

22100-KN5-671

Unavailable

4

GUIDE, CLUTCH (OUTER)

22116-KF0-000

$29.02

5

CENTER, CLUTCH This part replaces 22120-KF0-010.

22120-KN5-670

Unavailable

5

CENTER, CLUTCH

22120-KN5-670

Unavailable

6

SEAT, JUDDER SPRING

22125-435-000

$9.15

7

DISK, CLUTCH FRICTION This part replaces 22201-KE1-000.

22201-MS6-620

$17.36

7

DISK, CLUTCH FRICTION This part replaces 22201-KG0-980.

22201-MS6-620

$17.36

7

DISK, CLUTCH FRICTION This part replaces 22201-KL3-670.

22201-MS6-620

$17.36

7

DISK, CLUTCH FRICTION

22201-MS6-620

$17.36

8

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

8

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

8

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

9

PLATE, CLUTCH This part replaces 22321-KF0-000.

22321-KF0-770

$14.92

9

PLATE, CLUTCH

22321-KF0-770

$14.92

10

PLATE, CLUTCH PRESSURE This part replaces 22350-KF0-000.

22350-KW3-000

$71.20

10

PLATE, CLUTCH PRESSURE

22350-KW3-000

$71.20

11

PLATE, CLUTCH LIFTER

22361-KF0-000

Unavailable

12

SPRING, CLUTCH

22401-KL3-670

Unavailable

13

SPRING, JUDDER

22402-435-000

$34.37

14

PIN, CLUTCH LIFTER

22820-KF0-000

Unavailable

15

GEAR, PRIMARY DRIVE (24T)

23121-KL3-670

Unavailable

16

ROTOR, PULSE GENERATOR

30220-KG0-013

Unavailable

17

NUT (18MM)

90235-KA4-000

$11.09

18

NUT, LOCK (18MM)

90235-428-000

Unavailable

19

WASHER, LOCK

90432-KF0-000

$9.63

20

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.62

21

WASHER, THRUST (22X45X0.8)

90458-KE8-000

$3.97

22

BEARING, NEEDLE (12MM)

91001-147-003

$12.58

22

BEARING, NEEDLE (12MM) (TOMUSON)

91001-147-006

$13.34

23

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

24

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-003.

91201-HM3-A61

$2.99

24

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-004.

91201-HM3-A61

$2.99

24

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-005.

91201-HM3-A61

$2.99

25

BOLT, HEX. (6X22) This part replaces 92022-06022-0A.

92101-06022-0A

$1.54

25

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

26

CIRCLIP (INNER) (24MM)

94520-24000

$1.49
