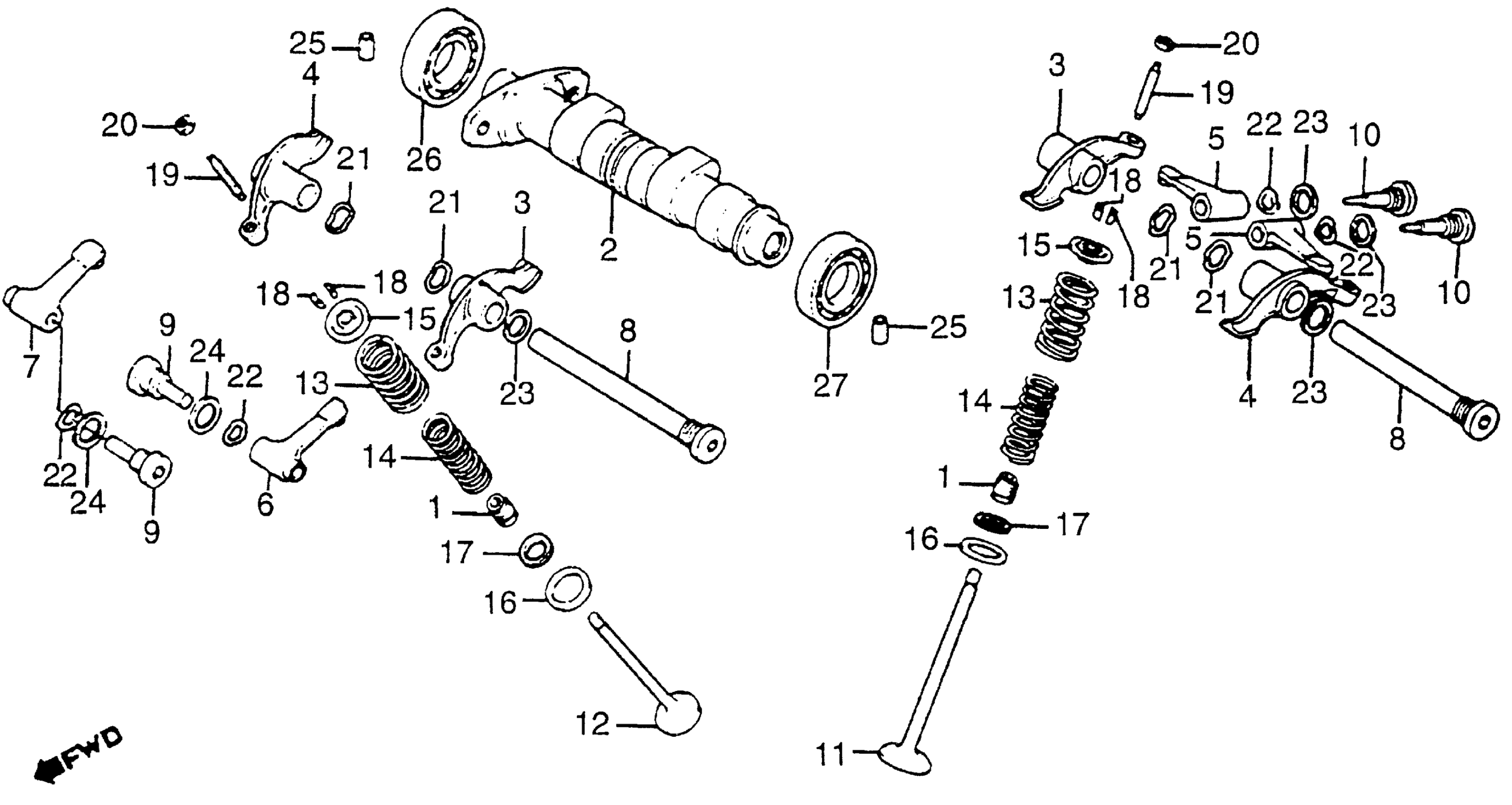

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12209-428-003.

12208-413-003

$10.21

2

CAMSHAFT This part replaces 14100-KF0-000.

14100-KL3-621

Unavailable

2

CAMSHAFT This part replaces 14100-KF0-010.

14100-KL3-621

Unavailable

2

CAMSHAFT

14100-KL3-621

Unavailable

2

CAMSHAFT This part replaces 14100-KL3-670.

14100-KL3-621

Unavailable

2

CAMSHAFT This part replaces 14100-KL3-671.

14100-KL3-621

Unavailable

3

ARM A, ROCKER (NOT AVAILABLE) This part replaces 14431-KF0-000.

14431-KF0-305

Unavailable

3

ARM A, ROCKER (NOT AVAILABLE) This part replaces 14431-KF0-010.

14431-KF0-305

Unavailable

3

ARM A, ROCKER (NOT AVAILABLE) This part replaces 14431-KF0-020.

14431-KF0-305

Unavailable

3

ARM A, ROCKER

14431-KF0-305

Unavailable

4

ARM B, ROCKER This part replaces 14441-KF0-000.

14441-KF0-305

Unavailable

4

ARM B, ROCKER This part replaces 14441-KF0-010.

14441-KF0-305

Unavailable

4

ARM B, ROCKER

14441-KF0-305

Unavailable

5

ARM, IN. VALVE SUB-ROCKER

14445-KE5-003

Unavailable

6

ARM, L. EX. VALVE SUB-ROCKER

14446-KF0-000

$32.17

7

ARM, R. EX. VALVE SUB-ROCKER

14447-KF0-000

$32.17

8

BOLT, ROCKER ARM SHAFT

14451-KF0-000

Unavailable

9

SHAFT A, SUB-ROCKER ARM This part replaces 14455-KF0-000.

14455-MN1-670

$20.68

9

SHAFT A, SUB-ROCKER ARM

14455-MN1-670

$20.68

10

SHAFT B, SUB-ROCKER ARM This part replaces 14456-KF0-000.

14456-KCY-670

$37.22

10

SHAFT B, SUB-ROCKER ARM This part replaces 14456-KF0-010.

14456-KCY-670

$37.22

11

VALVE, IN.

14711-KL3-670

Unavailable

12

VALVE, EX.

14721-KF0-000

Unavailable

13

SPRING, VALVE (OUTER) (NOT AVAILABLE) This part replaces 14751-KF0-000.

14751-KF0-003

Unavailable

13

SPRING, VALVE (OUTER)

14751-KF0-003

Unavailable

14

SPRING, VALVE (INNER) (NOT AVAILABLE) This part replaces 14761-KF0-000.

14761-KF0-003

Unavailable

14

SPRING, VALVE (INNER)

14761-KF0-003

Unavailable

15

RETAINER, VALVE SPRING

14771-107-020

$7.44

16

SEAT, VALVE SPRING (OUTER) (NOT AVAILABLE)

14775-KF0-000

Unavailable

17

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.00

18

COTTER, VALVE

14781-MB4-000

$2.96

19

SCREW, TAPPET ADJ. This part replaces 90012-KF0-003.

90012-415-000

$5.78

19

SCREW, TAPPET ADJ.

90012-415-000

$5.78

20

NUT, TAPPET ADJ.

90206-250-000

$2.80

21

WASHER, ROCKER ARM SIDE WAVE

90405-KF0-003

Unavailable

22

WASHER, WAVE This part replaces 90406-KF0-000.

90406-KF0-003

$2.80

22

WASHER, SUB-ROCKER ARM SIDE WAVE

90406-KF0-003

$2.80

23

WASHER, SEALING (14MM)

90544-KF0-000

$3.03

24

WASHER (12MM)

90545-KF0-000

$2.90

25

PIN, DOWEL (10X18)

90701-KF0-000

$4.47

26

BEARING, RADIAL BALL (6904C)

91002-MK5-008

$35.27

27

BEARING, RADIAL BALL (6904)

91003-KF0-008

$12.75
