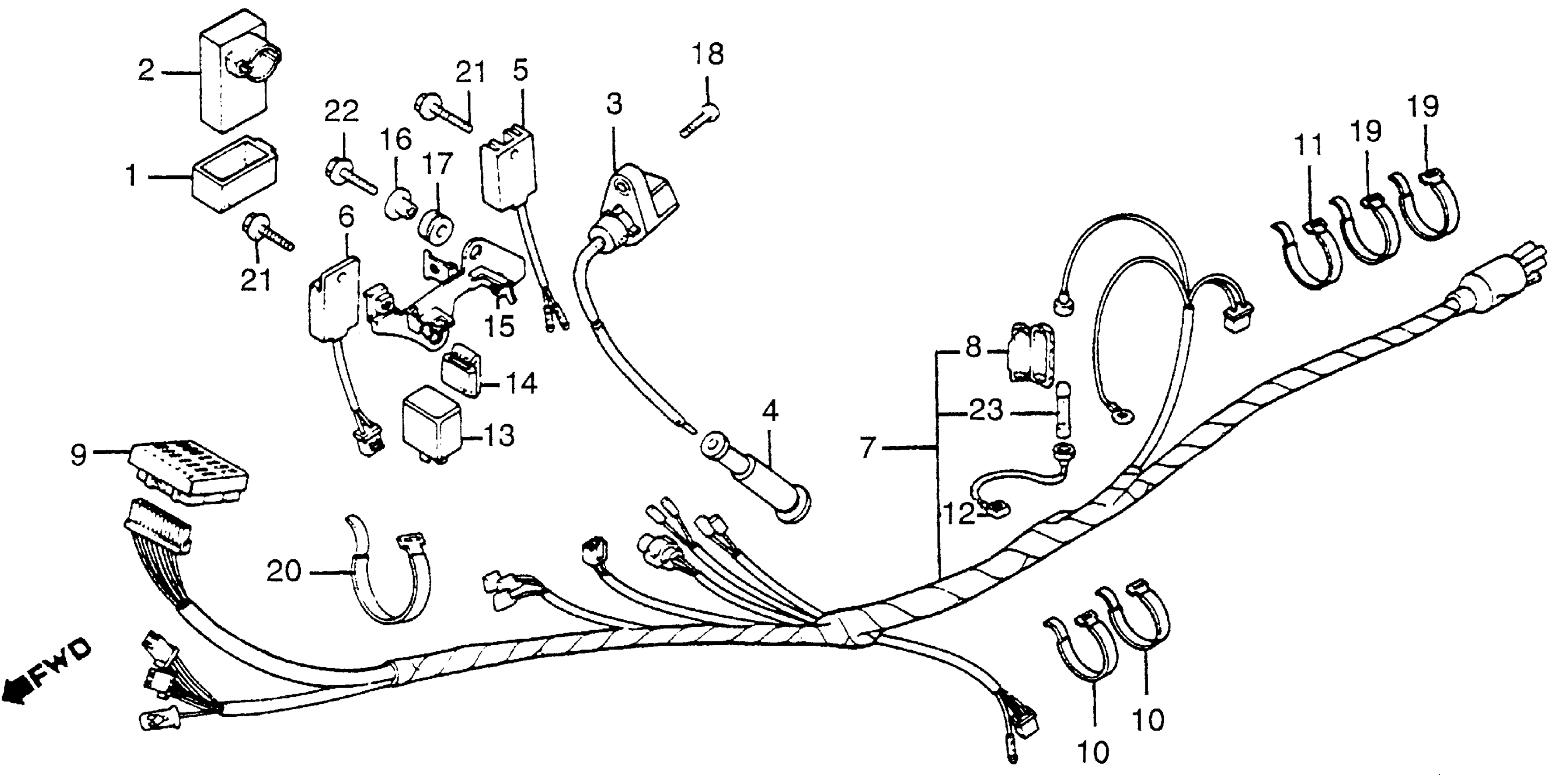

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.30

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-KL3-671

Unavailable

3

COIL, IGNITION

30510-GR2-405

$67.07

3

COIL, IGNITION This part replaces 30510-KG0-003.

30510-GR2-405

$67.07

4

CAP ASSY. This part replaces 30700-KF0-153.

30700-MK4-612

$17.99

4

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$17.99

4

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$17.99

5

REGULATOR, A.C. (SHINDENGEN) This part replaces 31400-KG0-008.

31410-HA5-671

Unavailable

5

REGULATOR, A.C. (SHINDENGEN) This part replaces 31400-KJ2-670.

31410-HA5-671

Unavailable

5

REGULATOR, A.C. (SHINDENGEN)

31410-HA5-671

Unavailable

6

RECTIFIER, REGULATOR (NOT AVAILABLE)

31600-KG0-000

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-KG0-000

Unavailable

8

CASE, FUSE CONNECTOR

32111-230-000

$4.09

9

MULTI-CONNECTOR (10X3)

32150-MG2-003

Unavailable

10

BAND, CABLE

32161-MA0-000

Unavailable

12

COVER, TERMINAL (NOT AVAILABLE)

32412-GB6-700

Unavailable

13

RELAY, TURN SIGNAL (DENSO) This part replaces 38301-KG0-004.

38301-MG2-008

Unavailable

13

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.42

14

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-GE7-008.

38306-GE7-000

$4.42

15

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50301-KG0-000

Unavailable

16

COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)

90501-MC4-000

$3.35

17

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.85

18

SCREW, PAN (5X18)

93500-05018-0A

$0.75

20

BAND A3, CABLE

95014-61300

$1.80

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

22

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

22

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

23

FUSE A (10A)

98200-11000

$1.59
