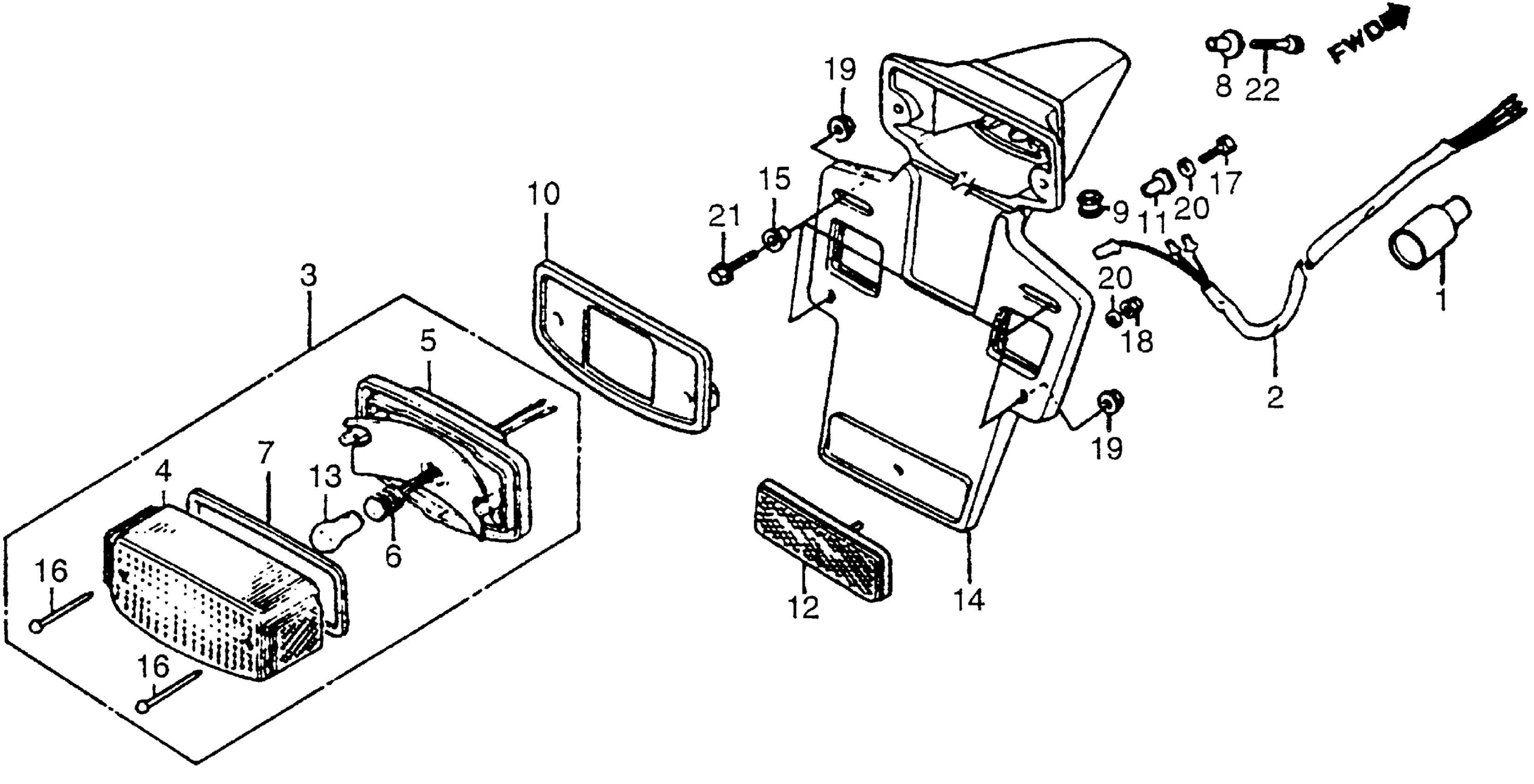

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 TAILLIGHT Diagram

#

Description
Price

2

SUB-CABLE, TAILLIGHT

32200-KG0-000

Unavailable

3

TAILLIGHT UNIT

33701-GAN-671

Unavailable

3

TAILLIGHT UNIT This part replaces 33701-MC4-671.

33701-GAN-671

Unavailable

4

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

5

BASE, TAILLIGHT

33703-MC4-671

Unavailable

6

CABLE, TAILLIGHT

33708-147-003

Unavailable

7

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

8

COLLAR, TAILLIGHT

33713-437-000

Unavailable

9

GROMMET, TAILLIGHT CABLE (NOT AVAILABLE)

33714-MG2-000

Unavailable

10

GASKET, TAILLIGHT (NOT AVAILABLE)

33718-KL3-670

Unavailable

11

COLLAR, TAILLIGHT GASKET

33719-437-970

$6.93

12

REFLECTOR, REFLEX This part replaces 33741-MC7-611.

33741-MC7-612

$14.43

12

REFLECTOR, REFLEX

33741-MC7-612

$14.43

13

BULB, TAILLIGHT (12V27/8W) (STANLEY)

34906-425-771

$4.40

14

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-MG2-670

Unavailable

15

COLLAR, NUMBER PLATE

84706-KG0-000

$3.95

16

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

17

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

17

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

18

NUT, CAP (5MM)

94021-05020-0S

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49

21

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

21

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

22

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

22

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
