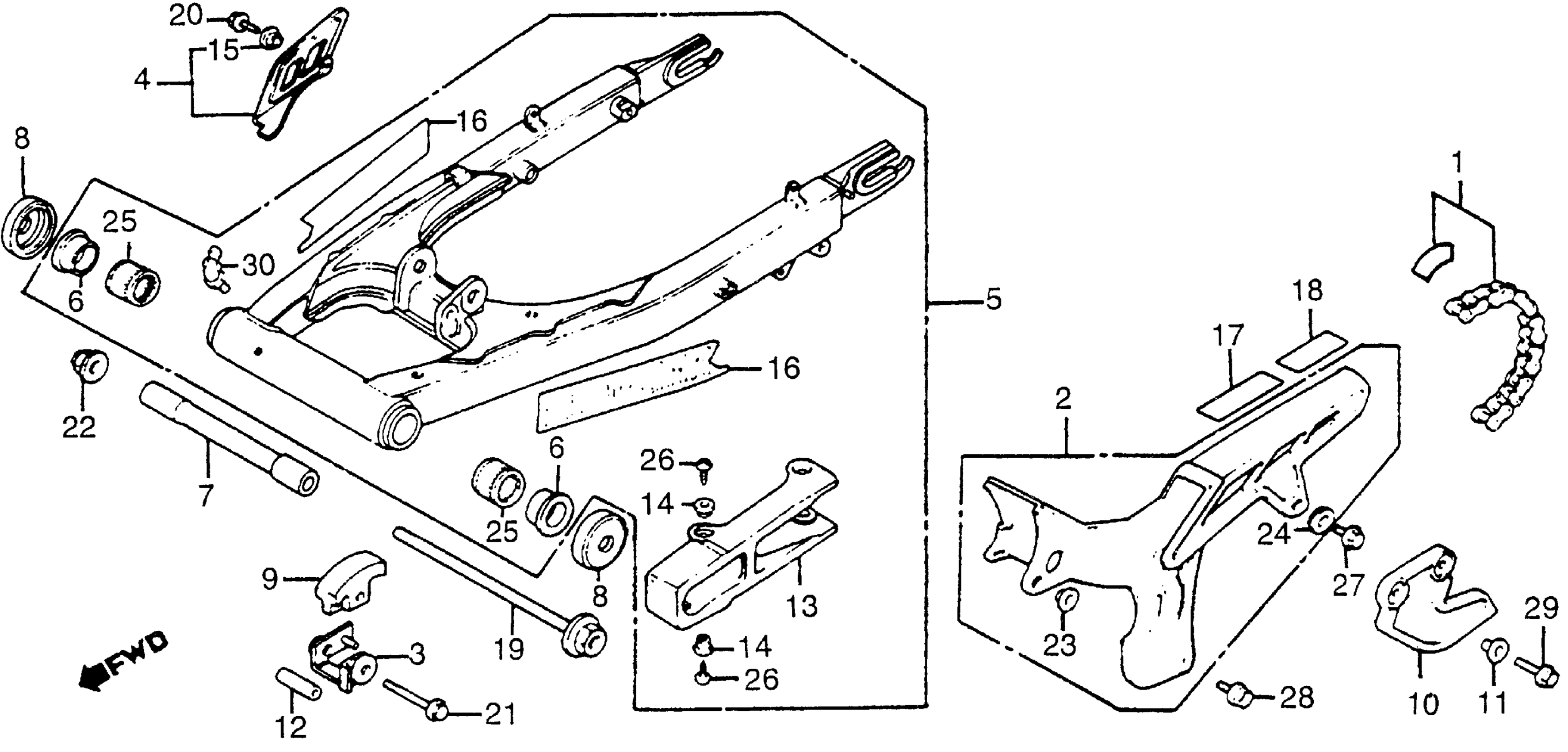

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CHAIN SET, DRIVE (520VC-102LE) (DAIDO) This part replaces 405A3-KB7-672.

405A3-KL3-670

Unavailable

1

CHAIN SET, DRIVE (520S0-102LE) (TAKASAGO)

405A3-KB8-005

Unavailable

1

CHAIN SET, DRIVE (520VC-102LE) (DAIDO)

405A3-KL3-670

Unavailable

2

CASE, DRIVE CHAIN

40510-MG2-000

Unavailable

3

STAY, TENSIONER

50143-MA0-770

Unavailable

4

GUARD, PILLION STEP (NOT AVAILABLE)

50720-MG2-000

Unavailable

5

SWINGARM ASSY. This part replaces 52100-MG2-670.

52100-KL3-760

Unavailable

6

BUSH, PIVOT THRUST

52109-430-300

$16.01

7

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-KF0-000

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

9

SLIDER, CHAIN (NOT AVAILABLE)

52155-KF0-005

Unavailable

10

GUARD, CHAIN

52156-KB7-000

Unavailable

11

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

12

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

13

SLIDER, CHAIN (OIRESU)

52170-KF0-003

Unavailable

13

SLIDER, CHAIN (OIRESU) This part replaces 52170-KF0-005.

52170-KF0-003

Unavailable

14

COLLAR, CHAIN SLIDER

52171-MC4-000

$4.99

15

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

16

EMBLEM, RR. SWINGARM (NOT AVAILABLE)

87121-GC4-300

Unavailable

17

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-KB7-670

Unavailable

18

LABEL, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87509-KL3-670

Unavailable

19

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-KF0-000

Unavailable

20

BOLT, FLANGE (6X10) This part replaces 90170-MG3-000.

95701-06010-00

$1.49

21

BOLT, FLANGE (6X45) This part replaces 90176-MG3-000.

95801-06045-00

$2.06

21

BOLT, FLANGE (6X45)

95801-06045-00

$2.06

22

NUT, U (14MM)

90305-GE8-003

$3.86

23

WASHER (6X20)

90512-300-000

$3.08

24

WASHER (6X9)

90513-323-000

$1.84

25

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

25

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

26

SCREW, TAPPING (6X12)

93901-26110

$1.49

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

27

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

28

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

29

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

29

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

30

FITTING, GREASE (B.76S)

96201-80000

$2.56
