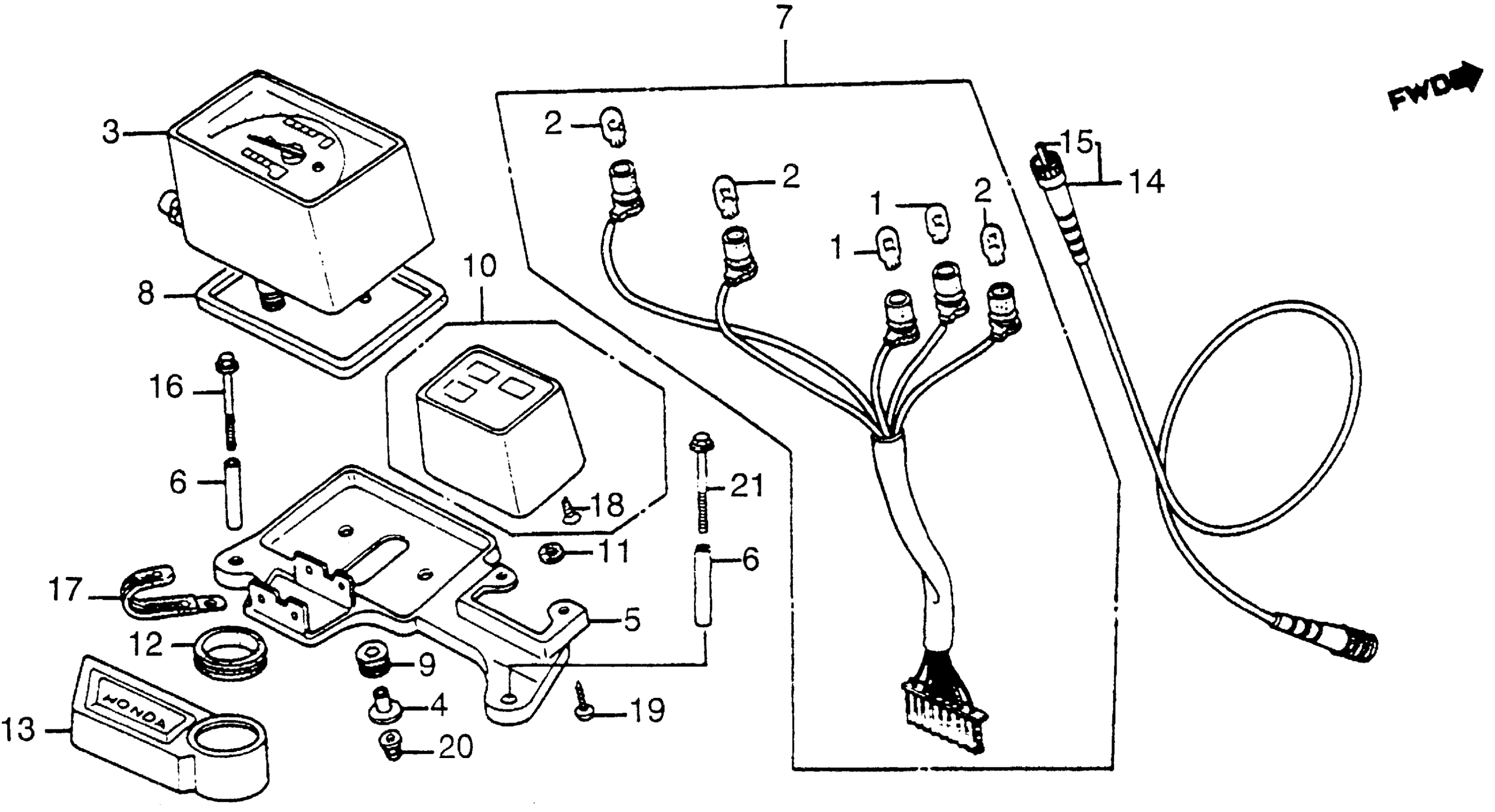

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (12V1.7W) (NIPPON SEIKI)

34908-MB9-871

$2.78

3

SPEEDOMETER ASSY. (NOT AVAILABLE) This part replaces 37200-KL3-671.

37200-KL3-770

Unavailable

4

COLLAR, METER SETTING

37206-471-000

$6.97

5

STAY, METER (NOT AVAILABLE)

37212-MG2-670

Unavailable

6

COLLAR, METER STAY

37213-MG2-000

Unavailable

7

SOCKET (NOT AVAILABLE)

37226-MG2-671

Unavailable

8

RUBBER, SPEEDOMETER

37242-MG2-000

Unavailable

9

RUBBER, SPEEDOMETER SETTING

37243-MG2-000

$4.21

10

CASE ASSY., PILOT

37300-MC4-671

Unavailable

11

RUBBER, PILOT CASE

37301-MG2-671

Unavailable

12

GROMMET, COMBINATION SWITCH

37312-KB7-008

Unavailable

13

COVER, IGNITION SWITCH

37622-MG2-000

Unavailable

14

CABLE ASSY., SPEEDOMETER

44830-KL3-000

Unavailable

15

CABLE (INNER)

44831-KL3-000

Unavailable

16

BOLT-WASHER (6X45)

90102-MG2-000

Unavailable

18

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-14120

Unavailable

19

SCREW, TAPPING (4X20)

93901-34520

$1.49

20

NUT, CAP (6MM)

94021-06070-0S

$1.62

21

BOLT, FLANGE (6X45) This part replaces 96000-06045-07.

96001-06045-07

$2.16

21

BOLT, FLANGE (6X45)

96001-06045-07

$2.16
