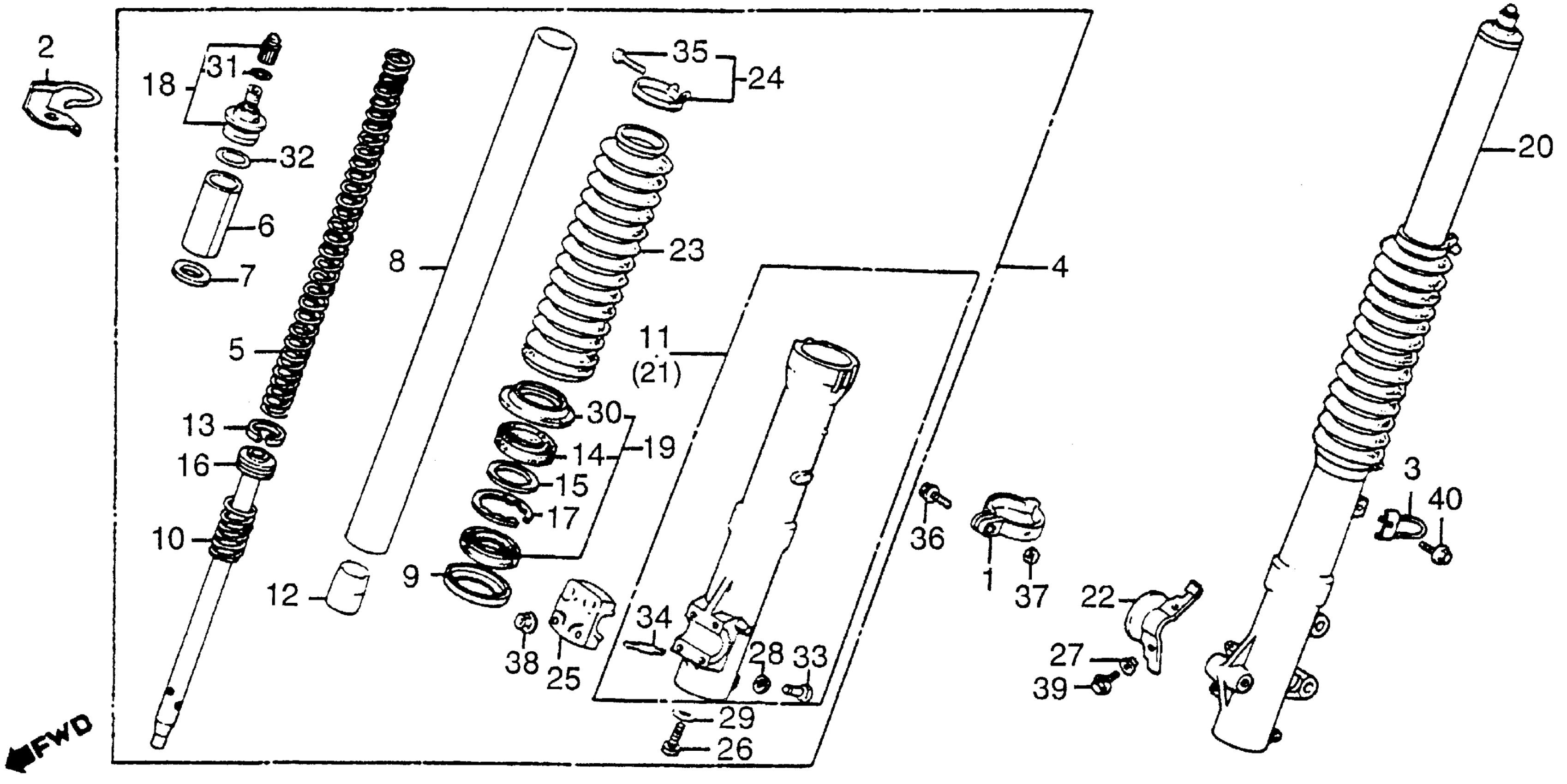

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-MG2-000

$7.72

2

CLIP, BRAKE HOSE (UPPER) (NOT AVAILABLE)

45461-MG2-000

Unavailable

3

CLIP, BRAKE HOSE (LOWER)

45463-MG2-000

Unavailable

4

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE)

51400-KL3-671

Unavailable

5

SPRING, FR. FORK (NOT AVAILABLE)

51401-KL3-671

Unavailable

6

COLLAR, SPRING (NOT AVAILABLE)

51402-KL3-671

Unavailable

7

PLATE, SPRING JOINT

51403-ME5-003

Unavailable

8

PIPE, FR. FORK

51410-KL3-671

Unavailable

9

RING, BACK-UP

51412-463-003

$7.22

9

RING, BACK-UP This part replaces 51412-463-305.

51412-463-003

$7.22

10

SPRING, REBOUND (NOT AVAILABLE)

51416-MG2-003

Unavailable

11

CASE, R. (LOWER)

51420-MG2-003

Unavailable

12

PIECE, OIL LOCK

51432-MG2-003

Unavailable

13

RING, PISTON (NOT AVAILABLE)

51437-MG2-003

Unavailable

14

HOLDER, GREASE (NOT AVAILABLE)

51438-MB9-781

Unavailable

15

WASHER, HOLDER (NOT AVAILABLE)

51439-MB9-781

Unavailable

16

PIPE, SEAT

51440-KL3-671

Unavailable

17

CIRCLIP (INNER)

51447-463-003

$4.20

18

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MG2-003

Unavailable

19

SEAL SET, FR. FORK This part replaces 51490-MG2-871.

51490-MG2-872

$36.27

19

SEAL SET, FR. FORK

51490-MG2-872

$36.27

20

SHOCK ABSORBER ASSY., L. FR. This part replaces 51500-KL3-671.

51500-KL3-672

Unavailable

20

SHOCK ABSORBER ASSY., L. FR.

51500-KL3-672

Unavailable

21

CASE, L. (LOWER)

51520-MG2-871

Unavailable

22

GUARD, FR. FORK

51551-MG3-000

Unavailable

23

BOOT, FR. FORK (NOT AVAILABLE)

51611-MG2-003

Unavailable

24

BAND, FR. FORK BOOT (NOT AVAILABLE)

51612-MG2-003

Unavailable

25

HOLDER, AXLE

51634-MA0-003

$33.64

26

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$4.77

26

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

27

WASHER, NUMBER BRACKET SETTING

90402-GB0-900

$3.20

28

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

29

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

30

DUST SEAL

91254-MG2-871

Unavailable

31

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.80

31

O-RING (5.8X1.9)

91305-323-000

$2.80

31

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.42

32

O-RING (29.2X3.5)

91356-MA3-661

$3.44

33

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

33

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

34

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$0.94

34

BOLT, STUD (6X25)

92900-06025-0E

$0.94

35

SCREW, PAN (3X20)

93500-03020-0A

$0.75

36

SCREW, PAN (5X20)

93500-05020-0A

$0.75

37

NUT, HEX. (5MM)

94001-05000-0S

$2.42

38

NUT, FLANGE (6MM)

94050-06000

$0.59

39

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.48

39

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

40

BOLT, FLANGE (6X12) This part replaces 96000-06012-07.

96001-06012-07

Unavailable

40

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable
