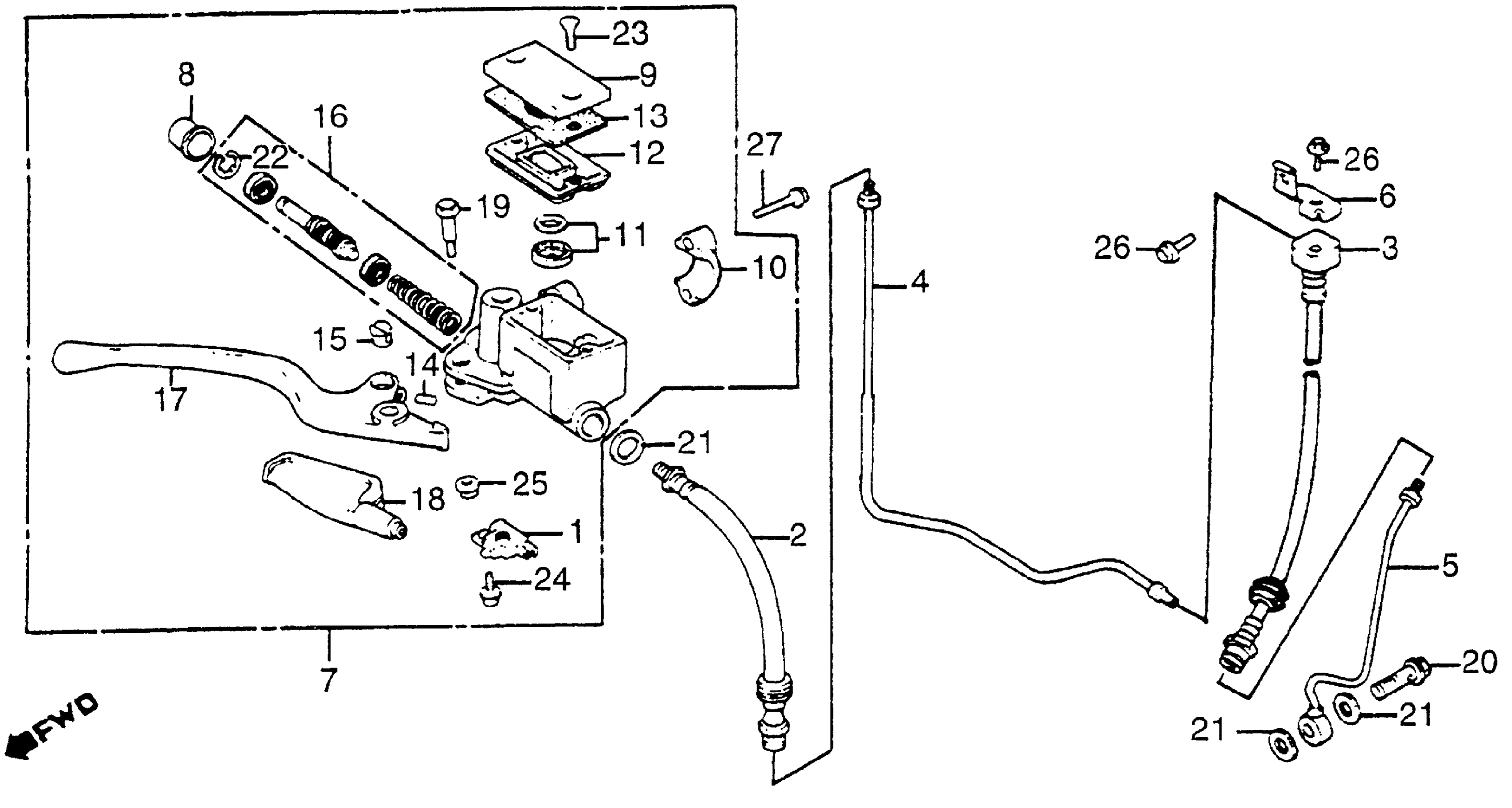

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 FRONT BRAKE MASTER + CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, BRAKE (UPPER) (NOT AVAILABLE)

45125-KL3-672

Unavailable

3

HOSE, BRAKE (LOWER) This part replaces 45126-KL3-671.

45126-KL3-672

Unavailable

3

HOSE, BRAKE (LOWER)

45126-KL3-672

Unavailable

4

PIPE, BRAKE (UPPER)

45135-MG2-000

Unavailable

5

PIPE, BRAKE (LOWER) (NOT AVAILABLE)

45136-MG2-000

Unavailable

6

STAY, BRAKE HOSE

45462-MG2-010

Unavailable

7

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-KK1-305) This part replaces 45500-MG3-641.

45500-MG3-642

Unavailable

7

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-KK1-305)

45500-MG3-642

Unavailable

8

BOOT

45504-410-003

$12.16

9

CAP, MASTER CYLINDER (NOT AVAILABLE) This part replaces 45513-MG3-671.

45513-MG3-672

Unavailable

9

CAP, MASTER CYLINDER (NOT AVAILABLE)

45513-MG3-672

Unavailable

10

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

11

SEPARATOR This part replaces 45518-MG3-006.

45518-MG3-016

$12.02

11

SEPARATOR

45518-MG3-016

$12.02

12

DIAPHRAGM

45520-GE2-006

$9.58

12

DIAPHRAGM

45520-MG7-006

$10.61

14

ROD, PUSH This part replaces 45526-MG3-006.

45526-KK1-771

Unavailable

14

ROD, PUSH

45526-KK1-771

Unavailable

15

PIN, ADJ.

45527-MG3-006

Unavailable

16

MASTER CYLINDER SET

45530-HB9-006

Unavailable

16

MASTER CYLINDER SET This part replaces 45530-MG3-305.

45530-HB9-006

Unavailable

17

LEVER, R. HANDLEBAR

53175-MG3-640

Unavailable

18

COVER, R. HANDLEBAR

53176-MG3-641

Unavailable

19

BOLT, HANDLEBAR PIVOT

90114-166-006

$6.51

20

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

20

BOLT, OIL

90145-300-010

$9.68

20

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

CIRCLIP

90651-MA5-671

$2.66

23

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

26

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

27

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

27

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
