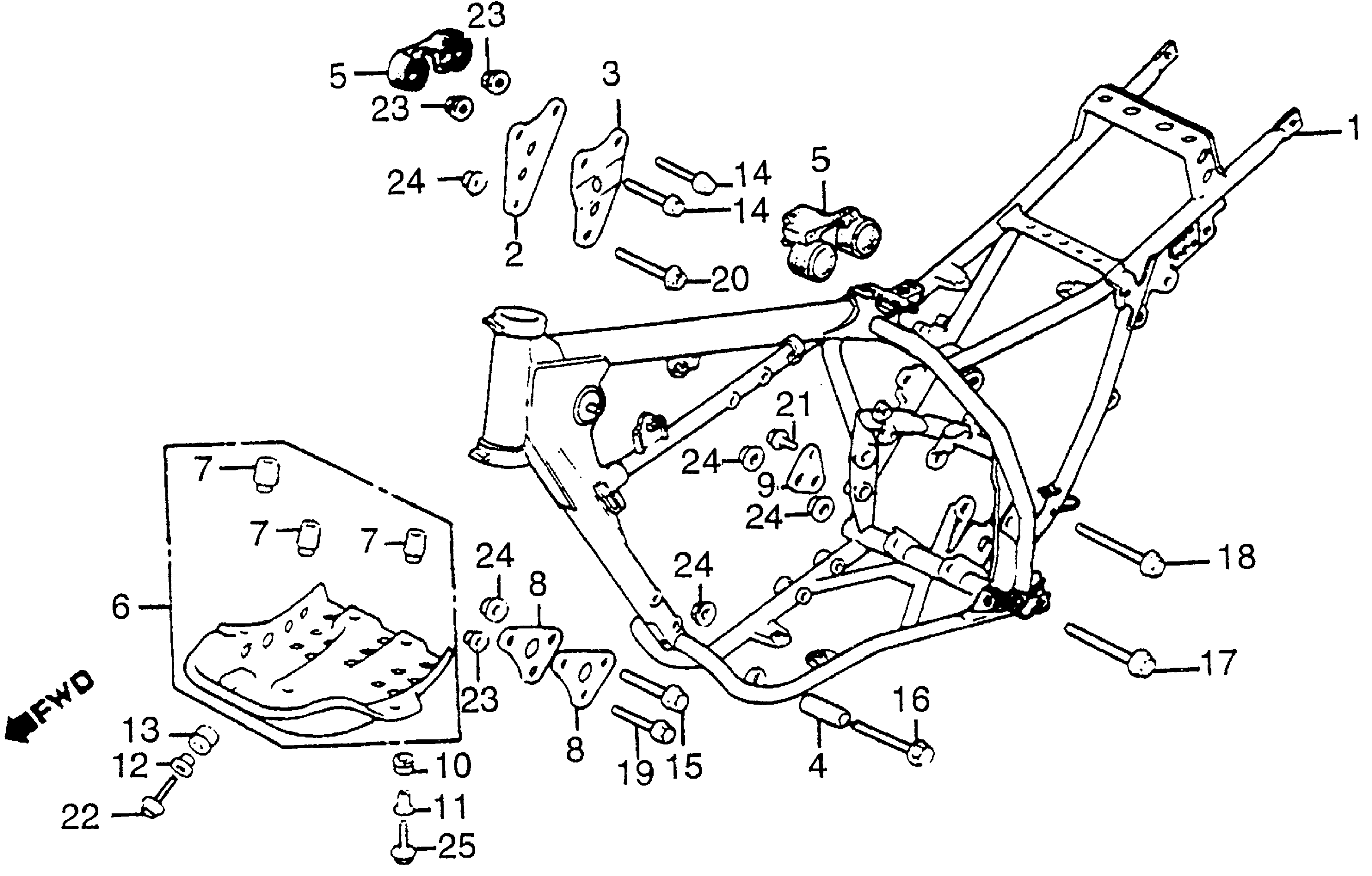

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 FRAME Diagram

#

Description
Price

1

FRAME *R110* (MONZA RED)

50100-KL3-670ZA

Unavailable

2

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50138-KF0-000

Unavailable

3

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50139-KF0-000

Unavailable

4

COLLAR, ENGINE HANGER (LOWER)

50140-KF0-000

Unavailable

5

RUBBER, TANK GUARD (NOT AVAILABLE)

50211-KL3-670

Unavailable

6

PLATE, SKID

50351-KG0-000

Unavailable

7

RUBBER A, STOPPER

50352-434-000

$5.17

8

PLATE, FR. ENGINE HANGER (NOT AVAILABLE)

50531-KF0-000

Unavailable

9

PLATE, R. RR. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50532-KF0-000

Unavailable

10

RUBBER, FR. FENDER SETTING

61103-357-000

Unavailable

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.22

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

11

COLLAR, RR. FENDER

61105-428-000

Unavailable

12

COLLAR (8X15)

80101-KB7-000

$5.61

13

RUBBER, SETTING

80102-KB7-000

Unavailable

14

BOLT, FLANGE (8X60)

90111-KF0-000

Unavailable

15

BOLT, HANDLEBAR PIVOT This part replaces 90113-KK0-000.

90114-KF0-770

Unavailable

15

BOLT, FLANGE (10X72) This part replaces 90114-KF0-000.

90150-KF0-000

$14.28

15

BOLT, HANDLEBAR PIVOT

90114-KF0-770

Unavailable

15

BOLT, FLANGE (10X72)

90150-KF0-000

$14.28

16

BOLT, FLANGE (10X85) This part replaces 90115-KF0-000.

90101-KK6-000

$6.62

17

BOLT, FLANGE (10X112)

90116-KF0-000

$13.30

18

BOLT, FLANGE (10X107)

90117-KF0-000

Unavailable

19

BOLT, FLANGE (8X70)

90156-MG3-000

Unavailable

20

BOLT, FLANGE (10X70)

90158-MG3-000

$11.33

21

BOLT, FLANGE (8X16) This part replaces 90213-KF0-000.

96300-08016-00

$1.28

21

BOLT, FLANGE (8X16)

96300-08016-00

$1.28

22

BOLT, FLANGE (8X28) This part replaces 90215-KF0-000.

96400-08028-00

$1.68

22

BOLT, FLANGE (8X28)

96400-08028-00

$1.68

23

NUT, FLANGE (8MM)

94050-08000

$0.86

24

NUT, FLANGE (10MM)

94050-10000

$1.41

25

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.13

25

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
