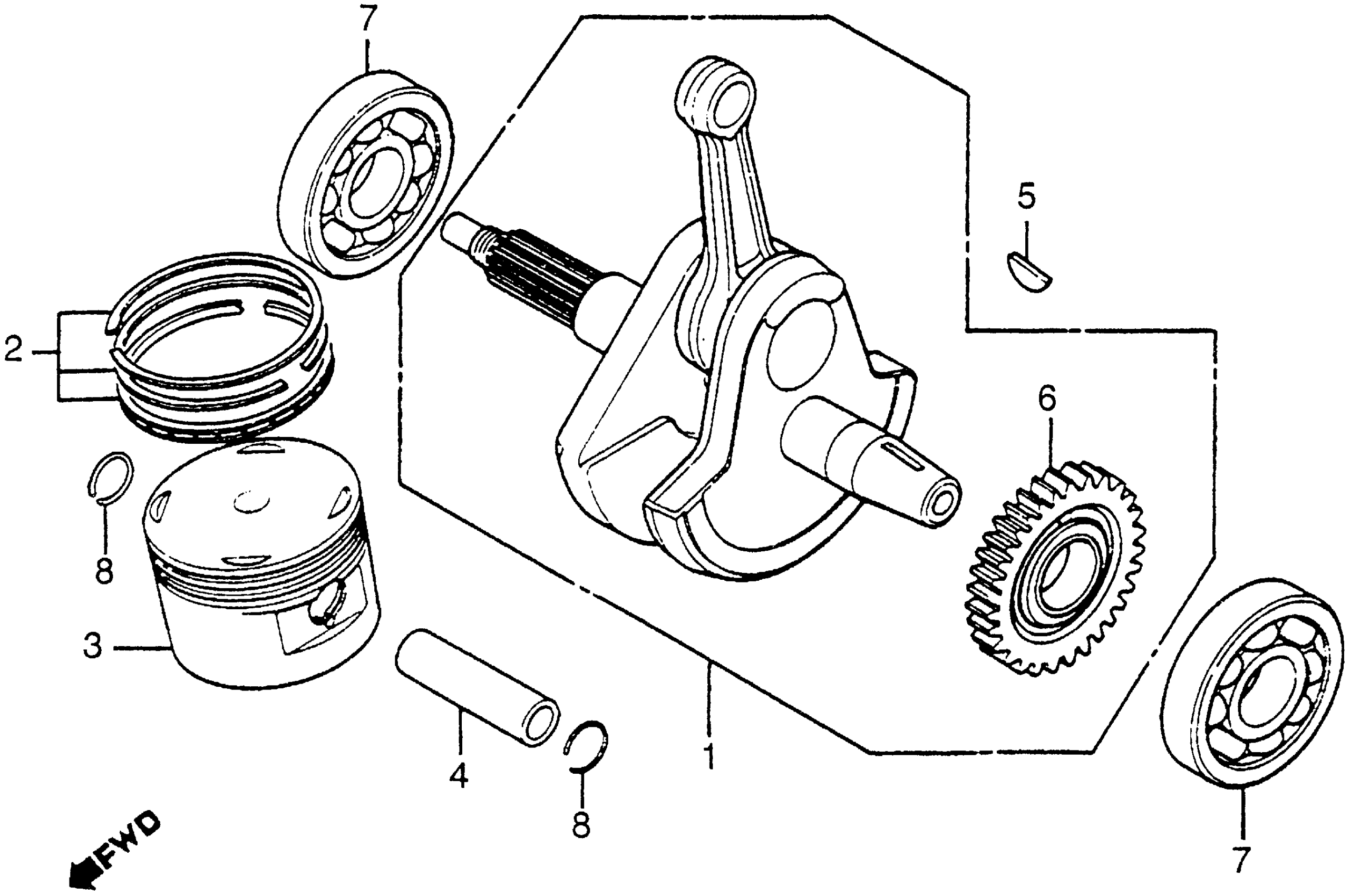

Honda XL350RA (84) MOTORCYCLE, JPN, VIN# JH2ND030-EM000001 TO JH2ND030-EM004164 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT | Use up to Engine SN 5005713 This part replaces 13000-KL3-670.

13000-KV2-901

Unavailable

1

CRANKSHAFT | Use up to Engine SN 5005713 This part replaces 13000-KL3-671.

13000-KV2-901

Unavailable

1

CRANKSHAFT This part replaces 13000-KL3-671.

13000-KV2-901

Unavailable

1

CRANKSHAFT | Use up to Engine SN 5005713

13000-KV2-901

Unavailable

1

CRANKSHAFT

13000-KV2-901

Unavailable

2

RING SET, PISTON (STD)

13011-KV2-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-KV2-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-KV2-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-KF0-003.

13012-KV2-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-KF0-003.

13013-KV2-305

Unavailable

2

RING SET, PISTON (STD) This part replaces 131A0-KN8-003.

13011-KV2-305

Unavailable

2

RING SET, PISTON (STD) This part replaces 131A1-KF0-003.

13011-KV2-305

Unavailable

3

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-KL3-670.

13101-KN5-671

Unavailable

3

PISTON (STD)

13101-KN5-670

Unavailable

3

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-KL3-770.

13101-KN5-671

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-KN5-671

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-KL3-305.

13102-KN5-305

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-KN5-305

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional). This part replaces 13103-KL3-305.

13103-KN5-305

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-KN5-305

Unavailable

4

PIN, PISTON This part replaces 13111-KL3-670.

13111-HN0-A00

$21.21

5

KEY, SPECIAL WOODRUFF (25X18)

13331-357-000

$3.60

7

BEARING, RADIAL BALL

91001-KF0-018

$83.73

8

CLIP, PISTON PIN (19MM)

94601-19000

$1.49
