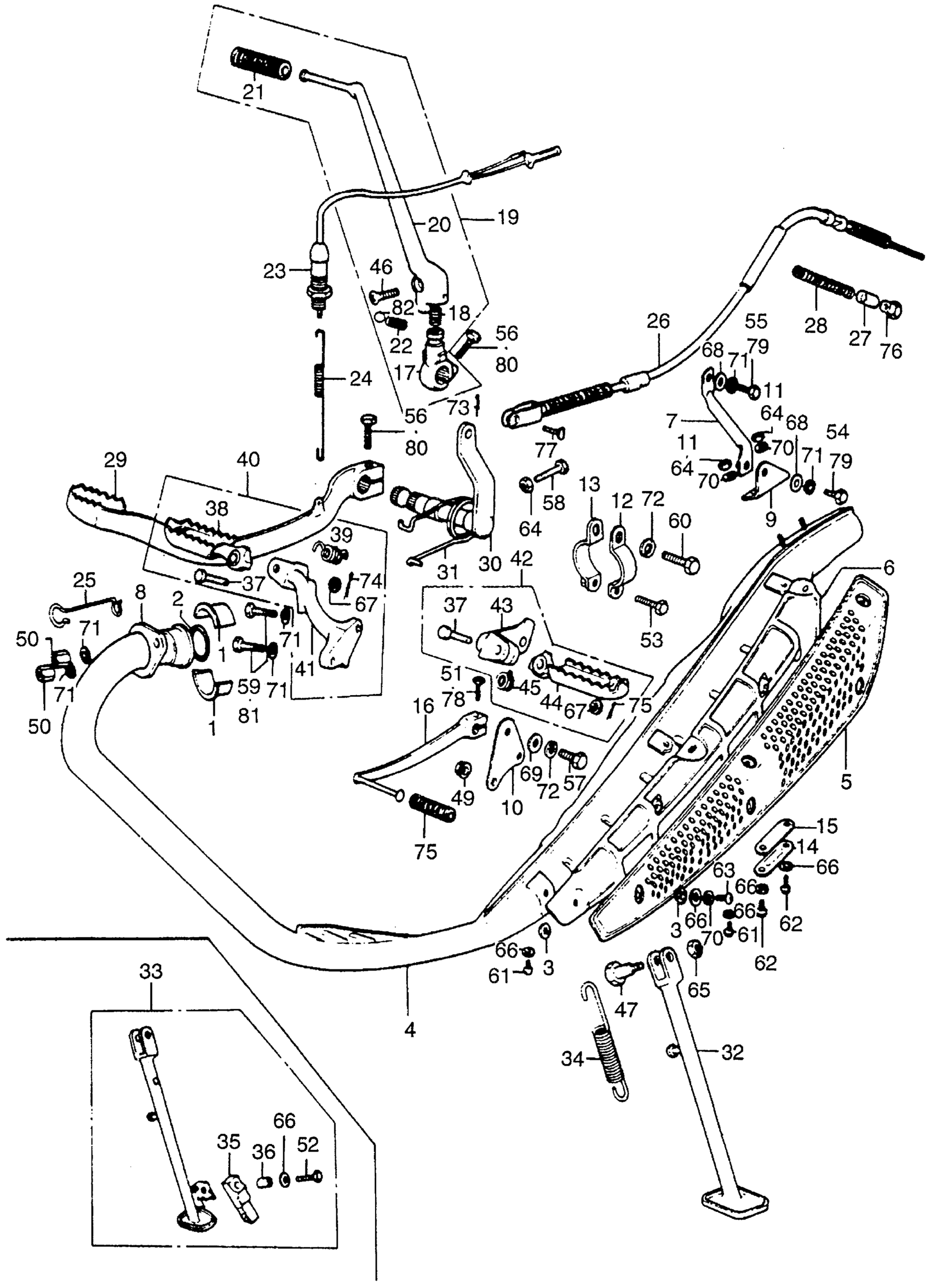

Honda XL350K1A MOTORCYCLE, JPN, VIN# XL350-2000001 TO XL350-2016790 MUFFLER + PEDAL Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-283-010

$11.43

2

GASKET, EX. PIPE

18291-MM8-880

$6.65

2

GASKET, EX. PIPE This part replaces 18291-283-010.

18291-MM8-880

$6.65

2

GASKET, EX. PIPE This part replaces 18291-283-306.

18291-MM8-880

$6.65

3

GASKET, PROTECTOR

18292-167-890

$1.80

3

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.80

4

MUFFLER, EX. (NOT AVAILABLE) | Use up to Frame SN 2016739 This part replaces 18300-356-000.

18300-356-317

Unavailable

4

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-356-315.

18300-356-317

Unavailable

4

MUFFLER, EX. (NOT AVAILABLE)

18300-356-317

Unavailable

5

PROTECTOR, MUFFLER

18318-356-000

Unavailable

6

PROTECTOR, MUFFLER (INNER) (NOT AVAILABLE)

18319-356-000

Unavailable

7

STAY, RR. MUFFLER (NOT AVAILABLE)

18321-356-000

Unavailable

8

JOINT, EX. PIPE

18322-356-000

Unavailable

9

BRACKET, RR. MUFFLER (NOT AVAILABLE)

18323-356-000

Unavailable

10

BRACKET, FR. MUFFLER

18326-356-000

Unavailable

11

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$0.59

11

NUT, FLANGE (6MM)

94050-06000

$0.59

12

BAND A, MUFFLER

18371-356-701

Unavailable

13

BAND B, MUFFLER (NOT AVAILABLE)

18372-356-701

Unavailable

14

LID, MUFFLER This part replaces 18373-310-000.

18373-446-010

Unavailable

14

LID, MUFFLER This part replaces 18373-446-000.

18373-446-010

Unavailable

14

LID, MUFFLER

18373-446-010

Unavailable

15

GASKET, MUFFLER

18374-KR8-900

Unavailable

15

GASKET, MUFFLER This part replaces 18374-310-000.

18374-KR8-900

Unavailable

16

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-356-000

Unavailable

17

JOINT, KICK ARM (NOT AVAILABLE) This part replaces 28241-356-300.

28241-385-300

Unavailable

18

SPRING, KICK STARTER KNUCKLE (NOT AVAILABLE) | Use up to Frame SN 2013645

28292-312-300

Unavailable

18

SPRING, KICK STARTER KNUCKLE | Use from Frame SN 2013646

28292-312-310

Unavailable

19

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-356-000

Unavailable

20

ARM, KICK STARTER (NOT AVAILABLE) | Use up to Frame SN 2013645 This part replaces 28301-356-300.

28301-356-310

Unavailable

20

ARM, KICK STARTER (NOT AVAILABLE)

28301-356-310

Unavailable

21

RUBBER, KICK STARTER

28311-329-000

$5.15

22

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

23

SWITCH ASSY., RR. STOP

35350-KJ9-405

$15.24

23

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$15.24

24

SPRING, STOP SWITCH

35357-KE5-000

Unavailable

24

SPRING, STOP SWITCH This part replaces 35357-303-010.

35357-KE5-000

Unavailable

25

CLAMP A, TACHOMETER CABLE (NOT AVAILABLE)

37262-356-000

Unavailable

26

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-356-000

Unavailable

27

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$0.86

27

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$0.86

27

JOINT, BRAKE ARM

95015-32001

$0.86

28

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

29

PEDAL, BRAKE

46500-356-000

Unavailable

30

SHAFT, RR. BRAKE PIVOT

46510-356-000

Unavailable

31

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-356-000

Unavailable

33

BAR ASSY., SIDE STAND

50540-356-700

Unavailable

34

SPRING, SIDE STAND

50542-310-010

Unavailable

35

RUBBER, STAND

50548-356-700

$9.41

36

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.46

37

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.07

37

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.07

38

STEP, R. (NOT AVAILABLE)

50616-356-000

Unavailable

39

SPRING, R. STEP RETURN

50617-MM9-000

$4.20

39

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.20

40

BAR ASSY., R. STEP (NOT AVAILABLE)

50620-356-000

Unavailable

41

BAR, R. STEP

50625-329-000

Unavailable

42

BAR ASSY., L. STEP (NOT AVAILABLE)

50630-356-000

Unavailable

43

BAR, L. STEP

50635-329-000

Unavailable

44

STEP, L.

50642-356-000

Unavailable

45

SPRING, L. STEP RETURN

50644-MM9-000

$4.20

45

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.20

46

BOLT, KICK ARM

90101-329-000

$3.42

47

SCREW, SIDE STAND PIVOT

90108-283-000

$7.19

49

NUT, HEX. (8MM)

90309-357-000

$3.16

50

NUT, EX. PIPE JOINT (NOT AVAILABLE)

90323-356-000

Unavailable

52

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.06

52

BOLT, HEX. (6X28)

92101-06028-0A

$1.06

53

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

53

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

57

BOLT, HEX. (10X25) This part replaces 92000-10025-0A.

92101-10025-0A

$2.09

57

BOLT, HEX. (10X25)

92101-10025-0A

$2.09

58

BOLT, HEX. (6X25) This part replaces 92023-06025.

92025-06025-0A

$0.96

58

BOLT, HEX. (6X25) This part replaces 92023-06025-0A.

92025-06025-0A

$0.96

58

BOLT, HEX. (6X25)

92025-06025-0A

$0.96

60

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.)

92200-10040-0A

Unavailable

60

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.) This part replaces 92213-10040-0A.

92200-10040-0A

Unavailable

61

SCREW, PAN (6X8) | Use up to Frame SN 2016739 This part replaces 90053-371-980.

93500-06008-0H

$1.00

61

SCREW, PAN (6X8) | Use up to Frame SN 2016739

93500-06008

$1.00

61

SCREW, PAN (6X8) | Use up to Frame SN 2016739

93500-06008-0A

$1.00

61

SCREW, PAN (6X8) | Use up to Frame SN 2016739

93500-06008-0H

$1.00

61

SCREW, PAN (6X8) | Use up to Frame SN 2016739 This part replaces 93500-06008-1H.

93500-06008-0H

$1.00

62

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$0.90

62

SCREW, PAN (6X12)

93500-06012-0A

$0.90

62

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$0.90

63

SCREW, PAN (6X14)

93500-06014-02

$1.20

64

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM)

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

65

NUT, HEX. (10MM)

94030-10000

$1.29

66

WASHER, PLAIN (6MM) | Use from Frame SN 2016740 to 2016739 This part replaces 94101-06000.

94101-06800

Unavailable

66

WASHER, PLAIN (6MM) | Use from Frame SN 2016740 to 2016739 This part replaces 94101-06080.

94101-06800

Unavailable

66

WASHER, PLAIN (6MM) | Use from Frame SN 2016740 to 2016739

94101-06800

Unavailable

67

WASHER, PLAIN (8MM)

94101-08000

$0.75

68

WASHER, PLAIN (8MM)

94102-08000

$0.86

69

WASHER, PLAIN (10MM)

94102-10000

$0.68

70

WASHER, SPRING (6MM)

94111-06000

$0.86

71

WASHER, SPRING (8MM)

94111-08000

$0.90

72

WASHER, SPRING (8MM)

94111-10000

$1.22

73

PIN, COTTER (1.6X12)

94201-16120

$0.94

74

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

74

PIN, COTTER (1.6X25)

94201-16250

$0.94

75

RUBBER, SHIFT PEDAL

95011-40000

$1.14

76

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

77

PIN B, BRAKE ROD JOINT

95015-52000

$1.94

78

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

78

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

79

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.70

79

BOLT, FLANGE (8X20)

95701-08020-00

$1.70

80

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.26

80

BOLT, FLANGE (8X28)

95701-08028-00

$1.26

81

BOLT, FLANGE (8X28)

95801-08028-00

$1.62

81

BOLT, FLANGE (8X28) This part replaces 95814-08028.

95801-08028-00

$1.62

82

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
