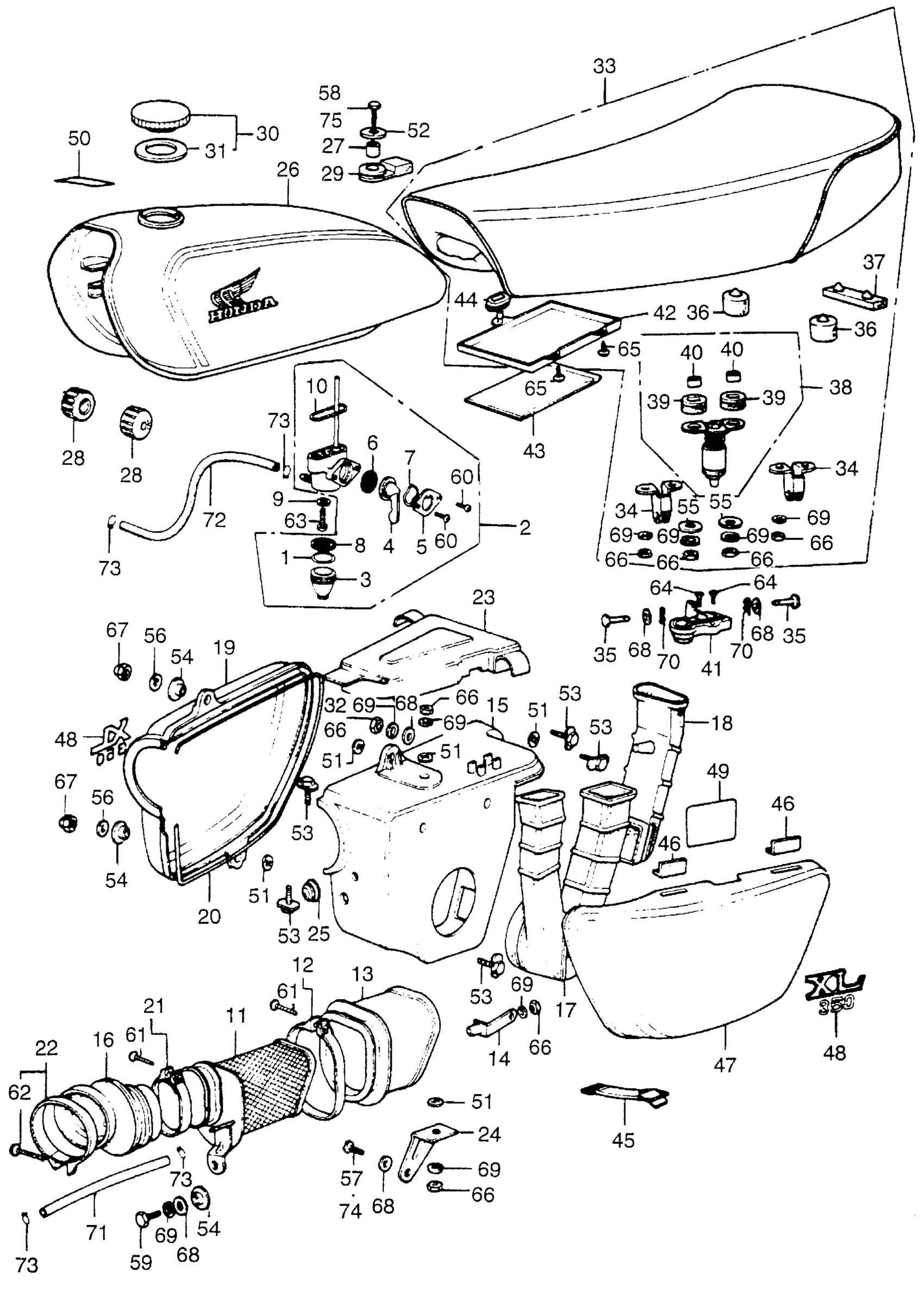

Honda XL350K1A MOTORCYCLE, JPN, VIN# XL350-2000001 TO XL350-2016790 FUEL TANK + SEAT Diagram

#

Description
Price

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$20.32

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.81

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.35

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.35

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.35

2

PETCOCK ASSY. (NOT AVAILABLE)

16950-356-700

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

6

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$2.85

6

GASKET, VALVE

16957-ZE1-812

$2.85

7

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.01

7

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.01

7

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.01

7

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.01

8

SCREEN, FUEL STRAINER

16957-028-000

$14.57

10

GASKET, PETCOCK BODY

16997-273-006

$6.47

11

BODY, AIR CLEANER (NOT AVAILABLE)

17211-356-000

Unavailable

12

BAND, AIR CLEANER ELEMENT (NOT AVAILABLE)

17212-356-000

Unavailable

13

ELEMENT, AIR CLEANER

17213-356-000

Unavailable

14

STAY, AIR CLEANER BODY

17214-356-000

Unavailable

15

HOUSING, AIR CLEANER (INNER) (NOT AVAILABLE)

17221-356-000

Unavailable

16

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-356-000

Unavailable

17

DUCT A, AIR (NOT AVAILABLE)

17224-356-000

Unavailable

18

DUCT B, AIR (NOT AVAILABLE)

17225-356-000

Unavailable

19

HOUSING, AIR CLEANER (OUTER) *B53L* (EXCEL BLUE) (NOT AVAILABLE)

17231-356-000UN

Unavailable

20

SEAL, AIR CLEANER COVER

17222-MN4-405

$6.80

20

SEAL, AIR CLEANER COVER This part replaces 17226-ME8-000.

17222-MN4-405

$6.80

20

SEAL, AIR CLEANER COVER This part replaces 17233-356-000.

17222-MN4-405

$6.80

21

BAND, CONNECTING TUBE (NOT AVAILABLE)

17254-356-000

Unavailable

22

BAND, INSULATOR

16223-KS5-000

$12.75

22

BAND, INSULATOR This part replaces 17255-329-000.

16223-KS5-000

$12.75

23

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17257-356-000

Unavailable

24

STAY C, AIR CLEANER HOUSING (NOT AVAILABLE)

17260-356-000

Unavailable

25

GROMMET, AIR CLEANER HOUSING (NOT AVAILABLE)

17261-356-000

Unavailable

26

TANK, FUEL *B53L* (EXCEL BLUE) (NOT AVAILABLE)

17500-356-305UN

Unavailable

27

COLLAR, FUEL TANK

17503-329-770

Unavailable

28

RUBBER, FR. FUEL TANK

17611-KE8-000

$3.92

28

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$3.92

29

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-329-020

Unavailable

30

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$13.33

30

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$13.33

30

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$13.33

30

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$13.33

30

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$13.33

31

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.59

31

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.59

32

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$0.59

32

NUT, FLANGE (6MM)

94050-06000

$0.59

33

SEAT ASSY. (NOT AVAILABLE)

77100-356-670

Unavailable

34

HINGE, SEAT (NOT AVAILABLE)

77201-356-000

Unavailable

35

PIN, SEAT HINGE (NOT AVAILABLE)

77203-356-000

Unavailable

36

RUBBER A, SEAT SETTING

77204-286-020

$9.01

37

RUBBER, SEAT SETTING

77204-312-000

$4.70

38

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

38

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

38

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

39

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$3.95

39

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$3.95

39

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$3.95

40

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.80

40

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.80

40

COLLAR, SEAT LOCK BAR

77229-340-003

$2.80

41

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

41

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-347-003.

77230-107-711

Unavailable

42

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

43

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.00

44

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

45

BAND, SIDE COVER

83606-356-000

$20.88

46

GROMMET, SIDE COVER

83621-333-000

$5.41

47

COVER, L. SIDE *B53L* (EXCEL BLUE) (NOT AVAILABLE)

83750-356-000UN

Unavailable

48

MARK, SIDE COVER (NOT AVAILABLE)

87123-356-700

Unavailable

49

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-356-670

Unavailable

50

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$2.96

51

CIRCLIP (5MM) | Use from Frame SN 1014908

90605-230-000

$2.80

52

WASHER (8MM)

90501-819-000

$1.36

53

BOLT, AIR CLEANER HOUSING MOUNT (NOT AVAILABLE)

90511-329-000

Unavailable

54

WASHER (6X20)

90512-300-000

$2.87

55

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$0.71

55

WASHER, PLAIN (6MM)

94103-06800

$0.71

56

WASHER, CRANK ARM

90545-044-000

$1.67

59

BOLT, HEX. (6X20) This part replaces 92100-06020-09.

92101-06020-0A

$0.94

59

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

59

BOLT, HEX. (6X20) This part replaces 92101-06020-0J.

92101-06020-0A

$0.94

60

SCREW, PAN (3X6)

93500-03006-0A

$0.83

61

SCREW, PAN (4X20)

93500-04020-0G

$0.71

62

SCREW, PAN (5X20)

93500-05020-0G

$0.75

63

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.29

63

SCREW, PAN (6X40)

93500-06040-0A

$1.29

64

SCREW, FLAT (6X12)

93600-06012-0G

$0.97

64

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$0.97

65

SCREW, TAPPING (5X8)

93901-25080

$0.83

66

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

66

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

66

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

66

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

66

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

66

NUT, HEX. (6MM)

94001-06200-0S

$1.19

66

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

67

NUT, CAP (6MM) This part replaces 94021-06220.

94021-06220-0S

$1.46

67

NUT, CAP (6MM)

94021-06220-0S

$1.46

68

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

68

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

68

WASHER, PLAIN (6MM)

94101-06800

Unavailable

69

WASHER, SPRING (6MM)

94111-06000

$0.86

70

PIN, LOCK (6MM)

94251-06000

$0.94

71

BULK HOSE, FUEL (4.5X3000) (4.5X115) | Use from Frame SN 1017070

95001-45003-60M

$32.93

72

BULK HOSE, FUEL (4.5X3000) (4.5X140)

95001-45003-60M

$32.93

72

BULK HOSE, FUEL (4.5X3000) (4.5X150)

95001-45003-60M

$32.93

72

BULK HOSE, FUEL (4.5X3000) (4.5X200)

95001-45003-60M

$32.93

73

CLIP, TUBE (B8)

95002-02080

$1.59

74

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

74

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

75

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.26

75

BOLT, FLANGE (8X28)

95701-08028-00

$1.26
