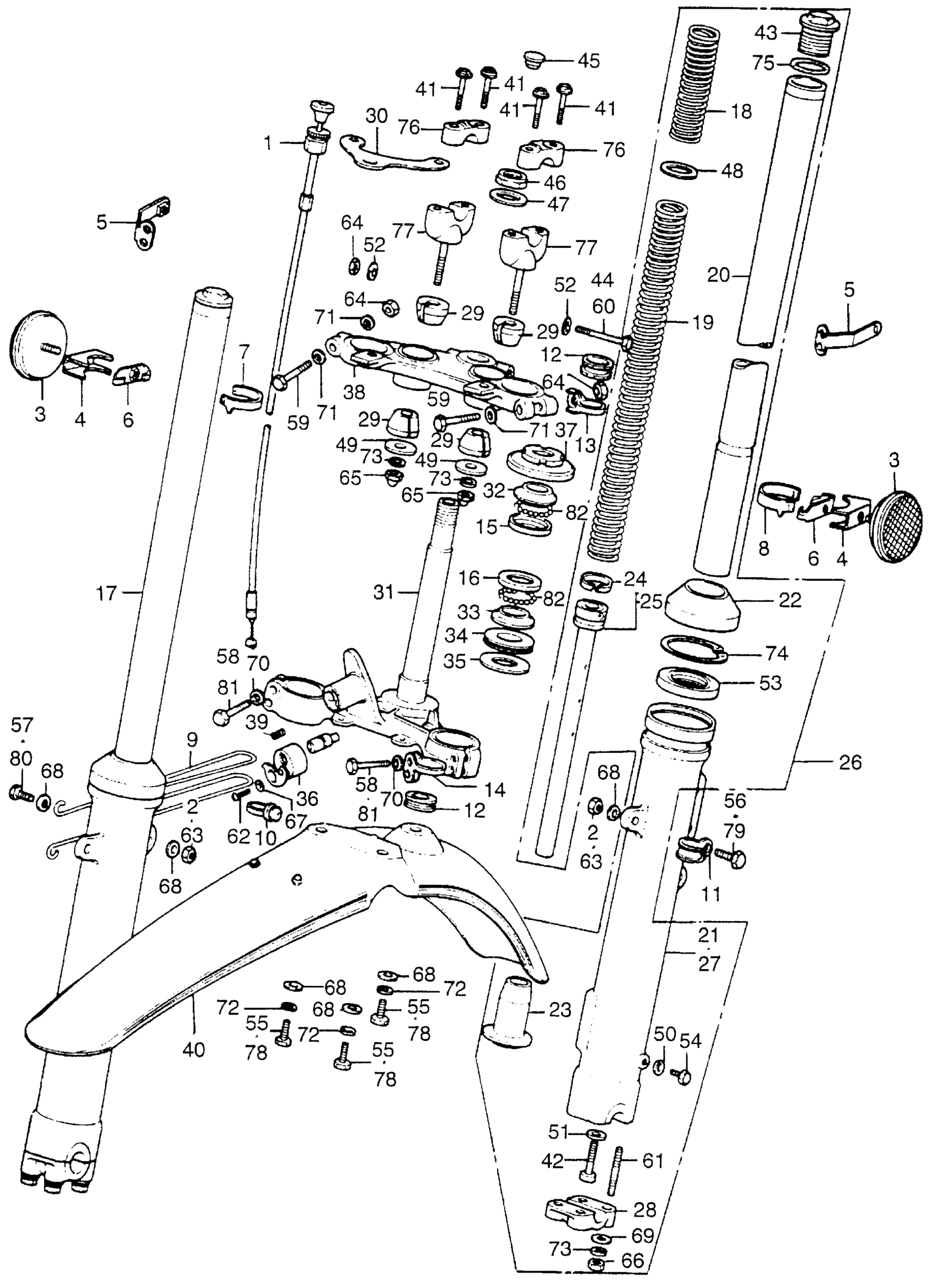

Honda XL350K1A MOTORCYCLE, JPN, VIN# XL350-2000001 TO XL350-2016790 FRONT FORK + STEERING STEM Diagram

#

Description
Price

1

CABLE, CHOKE

17950-356-700

Unavailable

2

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

2

NUT, FLANGE (6MM)

94050-06000

$1.49

3

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

5

STAY, FR. REFLEX REFLECTOR

33750-362-000

Unavailable

9

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-329-000

Unavailable

10

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$4.04

10

GROMMET, CABLE

45451-367-690

$4.04

11

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

12

GUIDE, CABLE (INNER)

45466-329-000

$2.95

13

GUIDE A, FR. BRAKE CABLE (NOT AVAILABLE)

45467-329-000

Unavailable

14

GUIDE B, FR. BRAKE CABLE

45468-329-000

Unavailable

15

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

15

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

15

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

15

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

15

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

15

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

16

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

16

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

16

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

18

SPRING A, FR. FORK

51401-356-000

Unavailable

19

SPRING B, FR. FORK (NOT AVAILABLE)

51402-356-000

Unavailable

20

PIPE, FORK (NOT AVAILABLE)

51420-356-000

Unavailable

21

CASE, R. FORK (LOWER) (NOT AVAILABLE)

51421-340-300

Unavailable

22

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

22

DUST SEAL, FR. FORK

91254-435-003

$15.40

23

PIECE, OIL LOCK (NOT AVAILABLE)

51432-357-000

Unavailable

24

RING, PISTON

51437-329-010

$7.14

25

PIPE (LOWER) (NOT AVAILABLE)

51440-356-000

Unavailable

27

CASE, L. FR. FORK (LOWER)

51521-356-300

Unavailable

28

HOLDER, FR. AXLE

51634-340-000

Unavailable

29

RUBBER, HANDLEBAR CUSHION

53133-303-000

$6.04

30

PLATE, HOLDER (NOT AVAILABLE)

53137-329-000

Unavailable

31

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-329-020B

Unavailable

32

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

33

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

34

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

35

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

36

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

37

THREAD, STEERING HEAD TOP

53220-303-000

Unavailable

38

BRIDGE SET, FORK TOP (NOT AVAILABLE) This part replaces 53230-340-000.

53230-340-305

Unavailable

38

BRIDGE SET, FORK TOP (NOT AVAILABLE)

53230-340-305

Unavailable

39

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

40

FENDER, FR. *B53L* (EXCEL BLUE) (NOT AVAILABLE)

61100-329-700UN

Unavailable

41

BOLT, FLANGE (8X36)

90111-362-000

$4.80

42

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

42

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

43

BOLT, FR. FORK

90123-300-000

$47.61

44

BOLT, FLANGE (8X72) (NOT AVAILABLE)

90124-458-000

Unavailable

45

CAP, STEM NUT (NOT AVAILABLE)

90303-329-670

Unavailable

46

NUT, STEERING STEM (NOT AVAILABLE)

90304-329-000

Unavailable

47

WASHER, STEERING STEM (NOT AVAILABLE)

90503-222-000

Unavailable

48

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

50

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

51

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

52

WASHER, PLAIN (8MM) | Use up to Frame SN 1020659

90518-921-000

$1.49

52

WASHER, PLAIN (8MM) | Use up to Frame SN 1020659 This part replaces 90518-931-000.

90518-921-000

$1.49

52

WASHER, PLAIN (8MM) | Use up to Frame SN 1020659 This part replaces 90555-283-000.

90518-921-000

$1.49

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821 This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821 This part replaces 91255-300-023.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821 This part replaces 91255-300-025.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) This part replaces 91255-300-025.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821 This part replaces 91255-300-033.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821 This part replaces 91255-323-013.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821 This part replaces 91255-434-003.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) | Use up to Frame SN 1020821 This part replaces 91255-434-013.

91255-KBH-003

$13.24

53

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

54

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

54

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

59

BOLT, HEX. (8X56) This part replaces 92000-08056-0B.

92101-08056-0B

Unavailable

61

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

61

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

61

BOLT, STUD (8X50)

92900-08028-3B

$1.59

62

SCREW, PAN (3X8)

93500-03008-0A

$1.49

64

NUT, HEX. (8MM) This part replaces 94001-08020.

94001-08020-0S

$1.49

64

NUT, HEX. (8MM)

94001-08020-0S

$1.49

65

NUT, CAP (8MM)

94021-08000-0S

$1.55

66

NUT, HEX. (8MM)

94030-08000

$1.49

67

WASHER, PLAIN (3MM)

94101-03000

$1.49

69

WASHER, PLAIN (8MM)

94101-08000

$1.49

73

WASHER, SPRING (8MM)

94111-08000

$1.49

74

CIRCLIP (INNER) (48MM) (NOT AVAILABLE)

94521-48000

Unavailable

75

O-RING (23X2.8)

94608-50000

$1.49

76

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

77

HOLDER C2, HANDLEBAR

95014-33200

Unavailable

78

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

78

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

79

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

79

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

80

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

80

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

81

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

81

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

82

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
