Description

Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22872-356-000

Unavailable

3

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-356-000

Unavailable

4

CONDENSER ASSY.

30250-329-305

Unavailable

5

COIL, IGNITION This part replaces 30500-356-003.

30500-950-405

$118.02

5

COIL, IGNITION

30500-950-405

$118.02

6

CAP ASSY. B, NOISE SUPPRESSOR (NOT AVAILABLE)

30710-356-000

Unavailable

7

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

8

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

8

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

8

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

8

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

8

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable

9

COVER, BATTERY (NOT AVAILABLE)

31532-356-000

Unavailable

10

RECTIFIER ASSY. (NOT AVAILABLE)

31700-356-000

Unavailable

11

WIRE HARNESS A

32100-356-000

Unavailable

12

WIRE HARNESS B (NOT AVAILABLE)

32105-329-010

Unavailable

13

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

32106-356-000

Unavailable

14

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

15

CASE, FUSE (10A) (NOT AVAILABLE)

32120-329-000

Unavailable

16

COVER, CONNECTOR (NOT AVAILABLE)

32138-329-300

Unavailable

17

CLIP, WIRE HARNESS (NOT AVAILABLE)

32171-329-000

Unavailable

18

REGULATOR ASSY., POINTLESS (KOKUSAN)

33140-121-003

Unavailable

19

LOCK SET (NOT AVAILABLE)

35010-361-007

Unavailable

19

LOCK SET (NOT AVAILABLE) This part replaces 35011-356-305.

35010-361-007

Unavailable

20

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

20

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

20

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

20

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

20

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

20

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

22

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

24

FRAME NH1 (BLACK)

50100-356-000B

Unavailable

25

BUSH, CENTER PIPE (NOT AVAILABLE)

50157-286-300

Unavailable

26

HOLDER, CONNECTOR

50201-356-000

Unavailable

27

PLUG

50318-041-600

$2.11

28

COLLAR, BATTERY BOX (NOT AVAILABLE)

50328-292-010

Unavailable

29

PLATE, SKID (NOT AVAILABLE)

50351-356-000

Unavailable

30

PLATE A, R. ENGINE HANGER NH1 (BLACK) (NOT AVAILABLE)

50352-329-010B

Unavailable

31

HOLDER, SKID PLATE (NOT AVAILABLE)

50352-356-000

Unavailable

32

PLATE A, L. ENGINE HANGER NH1 (BLACK) (NOT AVAILABLE)

50353-329-010B

Unavailable

33

PLATE C, L. ENGINE HANGER

50356-356-000

Unavailable

34

BRACKET, MAIN SWITCH NH1 (BLACK) (NOT AVAILABLE)

50375-329-000B

Unavailable

34

BRACKET, MAIN SWITCH NH1 (BLACK) (NOT AVAILABLE) This part replaces 50375-356-000B.

50375-329-000B

Unavailable

35

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

36

BOX, BATTERY (NOT AVAILABLE)

83600-356-000

Unavailable

37

STAY, BATTERY (UPPER) (NOT AVAILABLE)

83603-356-000

Unavailable

38

STAY, BATTERY (LOWER) (NOT AVAILABLE)

83604-356-000

Unavailable

39

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

83605-356-000

Unavailable

40

COLLAR, BATTERY (LOWER)

83607-356-000

$2.92

41

RUBBER, BATTERY BOX

83618-323-000

$2.47

42

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

44

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

46

TOOL SET (NOT AVAILABLE)

89010-329-000

Unavailable

47

BAG, TOOL | Use from Frame SN 1017660

89101-ME5-670

Unavailable

47

BAG, TOOL | Use from Frame SN 1017660 This part replaces 99008-02000.

89101-ME5-670

Unavailable

48

WRENCH, SPARK PLUG (NOT AVAILABLE)

89216-329-000

Unavailable

49

BOLT, FLANGE (10X110) This part replaces 90102-356-000.

90105-MG3-000

$9.23

49

BOLT, FLANGE (10X110)

90105-MG3-000

$9.23

50

BOLT, HEX. (10X90) (NOT AVAILABLE)

90103-356-000

Unavailable

51

BOLT, HEX. (8MM) (NOT AVAILABLE)

90103-358-000

$11.20

52

NUT, HEX. (10MM)

90308-357-000

$4.85

53

NUT, HEX. (8MM)

90309-357-000

$3.40

54

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

56

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

56

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

62

SCREW, PAN (5X20)

93500-05020-0A

$1.49

63

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-24110

Unavailable

64

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

64

NUT, HEX. (5MM)

94001-05000-0S

$2.74

65

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

65

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

65

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

65

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

65

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

65

NUT, HEX. (6MM)

94001-06200-0S

$1.49

65

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

66

WASHER, PLAIN (4MM)

94101-04000

$1.49

71

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

71

BAND B2, BATTERY

95012-13001

$5.28

72

BAND B1, CABLE

95014-62100

$1.64

73

BAND B3, CABLE HARNESS

95014-62300

$2.25

74

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

74

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

75

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

75

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

76

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

76

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

77

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

77

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

78

FUSE A (10A)

98200-11000

$1.80

79

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

80

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

81

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

82

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

83

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

84

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

85

LEVER, TIRE

99003-40000

$1.49

86

GRIP

99003-50000

$3.27

87

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

88

WRENCH, EYE (26MM) (NOT AVAILABLE)

99006-26000

Unavailable

89

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

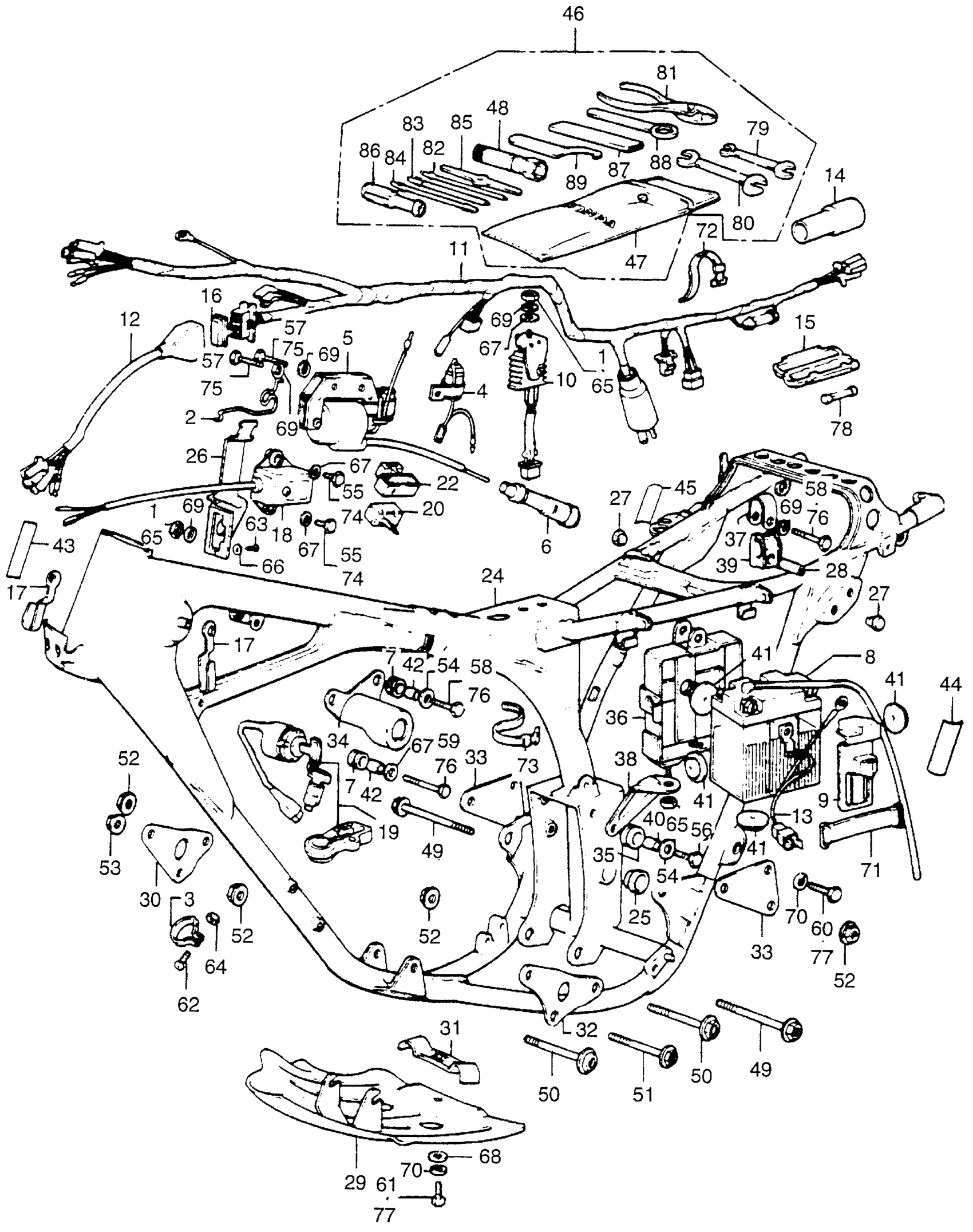

Honda XL350K1A MOTORCYCLE, JPN, VIN# XL350-2000001 TO XL350-2016790 FRAME + BATTERY Diagram

NUT, FLANGE (6MM) This part replaces 18362-720-000.

NUT, FLANGE (6MM)

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

CONDENSER ASSY.

COIL, IGNITION This part replaces 30500-356-003.

COIL, IGNITION

CAP ASSY. B, NOISE SUPPRESSOR (NOT AVAILABLE)

RUBBER, REGULATOR CUSHION

BATTERY (6N6-3B) This part replaces 31500-324-601.

BATTERY (6N6-3B) This part replaces 31500-329-677.

BATTERY (6N6-3B) This part replaces 98202-63260.

BATTERY (6N6-3B) This part replaces 98203-63250.

BATTERY (6N6-3B) This part replaces 98203-63260.

COVER, BATTERY (NOT AVAILABLE)

RECTIFIER ASSY. (NOT AVAILABLE)

WIRE HARNESS A

WIRE HARNESS B (NOT AVAILABLE)

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

COVER, WIRE HARNESS CONNECTOR

CASE, FUSE (10A) (NOT AVAILABLE)

COVER, CONNECTOR (NOT AVAILABLE)

CLIP, WIRE HARNESS (NOT AVAILABLE)

REGULATOR ASSY., POINTLESS (KOKUSAN)

LOCK SET (NOT AVAILABLE)

LOCK SET (NOT AVAILABLE) This part replaces 35011-356-305.

RELAY ASSY., TURN SIGNAL

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

FRAME *NH1* (BLACK)

BUSH, CENTER PIPE (NOT AVAILABLE)

HOLDER, CONNECTOR

PLUG

COLLAR, BATTERY BOX (NOT AVAILABLE)

PLATE, SKID (NOT AVAILABLE)

PLATE A, R. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

HOLDER, SKID PLATE (NOT AVAILABLE)

PLATE A, L. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

PLATE C, L. ENGINE HANGER

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE)

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50375-356-000B.

RUBBER, RR. FENDER CUSHION

BOX, BATTERY (NOT AVAILABLE)

STAY, BATTERY (UPPER) (NOT AVAILABLE)

STAY, BATTERY (LOWER) (NOT AVAILABLE)

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

COLLAR, BATTERY (LOWER)

RUBBER, BATTERY BOX

COLLAR, NUMBER BRACKET SETTING

LABEL, MUFFLER CAUTION

TOOL SET (NOT AVAILABLE)

BAG, TOOL | Use from Frame SN 1017660

BAG, TOOL | Use from Frame SN 1017660 This part replaces 99008-02000.

WRENCH, SPARK PLUG (NOT AVAILABLE)

BOLT, FLANGE (10X110) This part replaces 90102-356-000.

BOLT, FLANGE (10X110)

BOLT, HEX. (10X90) (NOT AVAILABLE)

BOLT, HEX. (8MM) (NOT AVAILABLE)

NUT, HEX. (10MM)

NUT, HEX. (8MM)

WASHER B, HANDLE HOLDER SETTING

BOLT, HEX. (6X20) This part replaces 92000-06020.

BOLT, HEX. (6X20)

SCREW, PAN (5X20)

SCREW, TAPPING (4X8) (NOT AVAILABLE)

NUT, HEX. (5MM) This part replaces 94001-05000.

NUT, HEX. (5MM)

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

NUT, HEX. (6MM) This part replaces 94001-06000.

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

NUT, HEX. (6MM)

NUT, HEX. (6MM) This part replaces 94030-06000.

WASHER, PLAIN (4MM)

FRAME NH1 (BLACK)

PLATE A, R. ENGINE HANGER NH1 (BLACK) (NOT AVAILABLE)

PLATE A, L. ENGINE HANGER NH1 (BLACK) (NOT AVAILABLE)

BRACKET, MAIN SWITCH NH1 (BLACK) (NOT AVAILABLE)

BRACKET, MAIN SWITCH NH1 (BLACK) (NOT AVAILABLE) This part replaces 50375-356-000B.
