- XL350K1A MOTORCYCLE, JPN, VIN# XL350-2000001 TO XL350-2016790
CRANKCASE

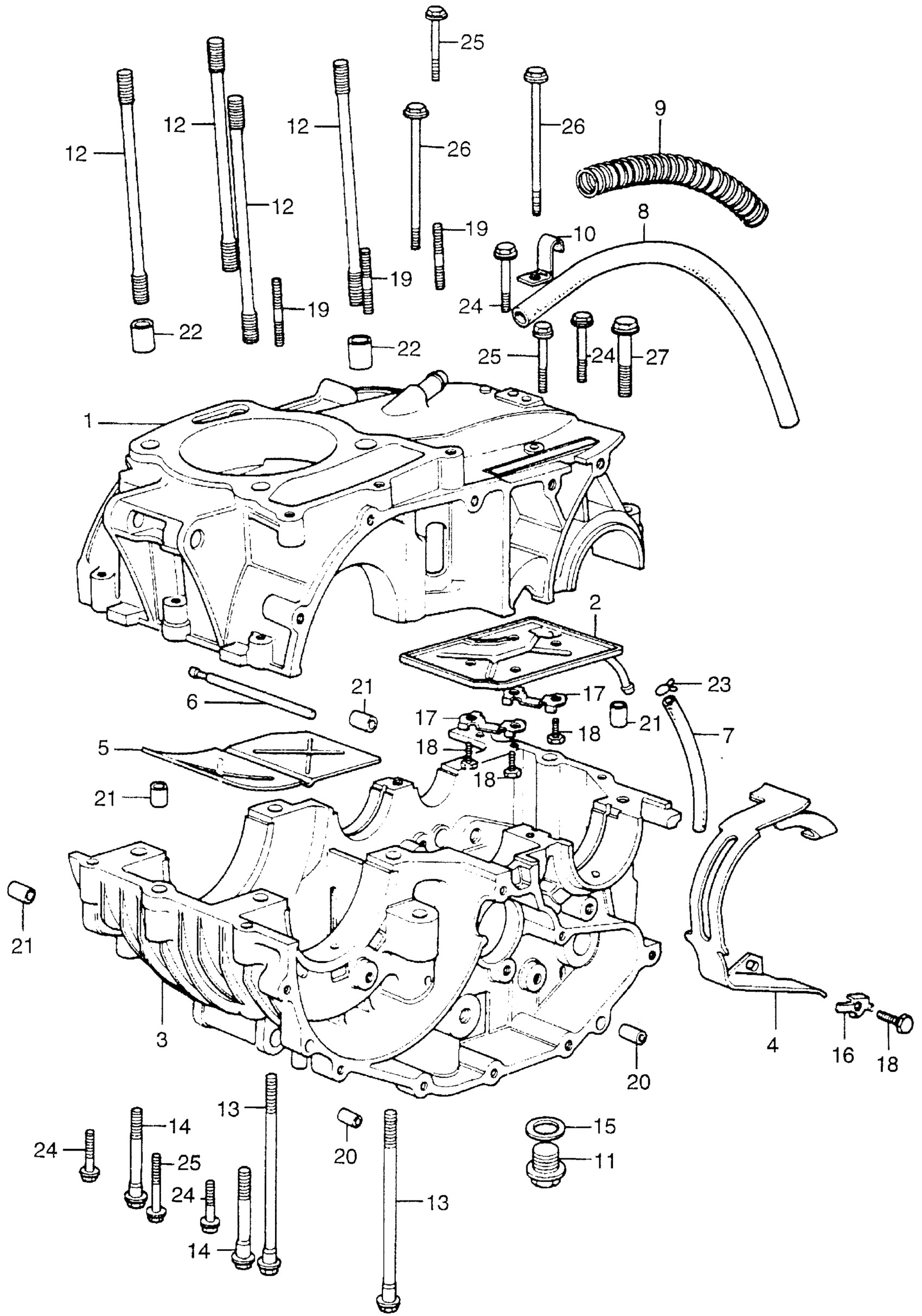

Honda XL350K1A MOTORCYCLE, JPN, VIN# XL350-2000001 TO XL350-2016790 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE (UPPER) (NOT AVAILABLE)
11100-356-020
Unavailable
2
PLATE, BREATHER (NOT AVAILABLE)
11110-356-000
Unavailable
3
CRANKCASE (LOWER) (NOT AVAILABLE)
11200-356-020
Unavailable
4
PROTECTOR, CASE (NOT AVAILABLE)
11353-356-000
Unavailable
5
SEPARATOR, OIL (NOT AVAILABLE)
11761-356-000
Unavailable
6
BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)
11762-329-000
Unavailable
7
TUBE, OIL RETURN (NOT AVAILABLE)
15713-356-000
Unavailable
8
TUBE, BREATHER (NOT AVAILABLE)
15771-356-000
Unavailable
9
PROTECTOR, BREATHER TUBE (NOT AVAILABLE)
15773-356-000
Unavailable
10
CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)
32112-329-000
Unavailable
11
BOLT, DRAIN VALVE
90013-230-000
Unavailable
12
BOLT, CYLINDER STUD (10MM) (NOT AVAILABLE)
90031-356-000
Unavailable
13
BOLT, UBS (8X160) (NOT AVAILABLE)
90044-356-000
Unavailable
14
BOLT, UBS (8X114) (NOT AVAILABLE)
90045-329-000
Unavailable
16
WASHER, LOCK (6MM) (NOT AVAILABLE)
90434-329-000
Unavailable
17
WASHER (6MM) (NOT AVAILABLE)
90484-329-000
Unavailable
