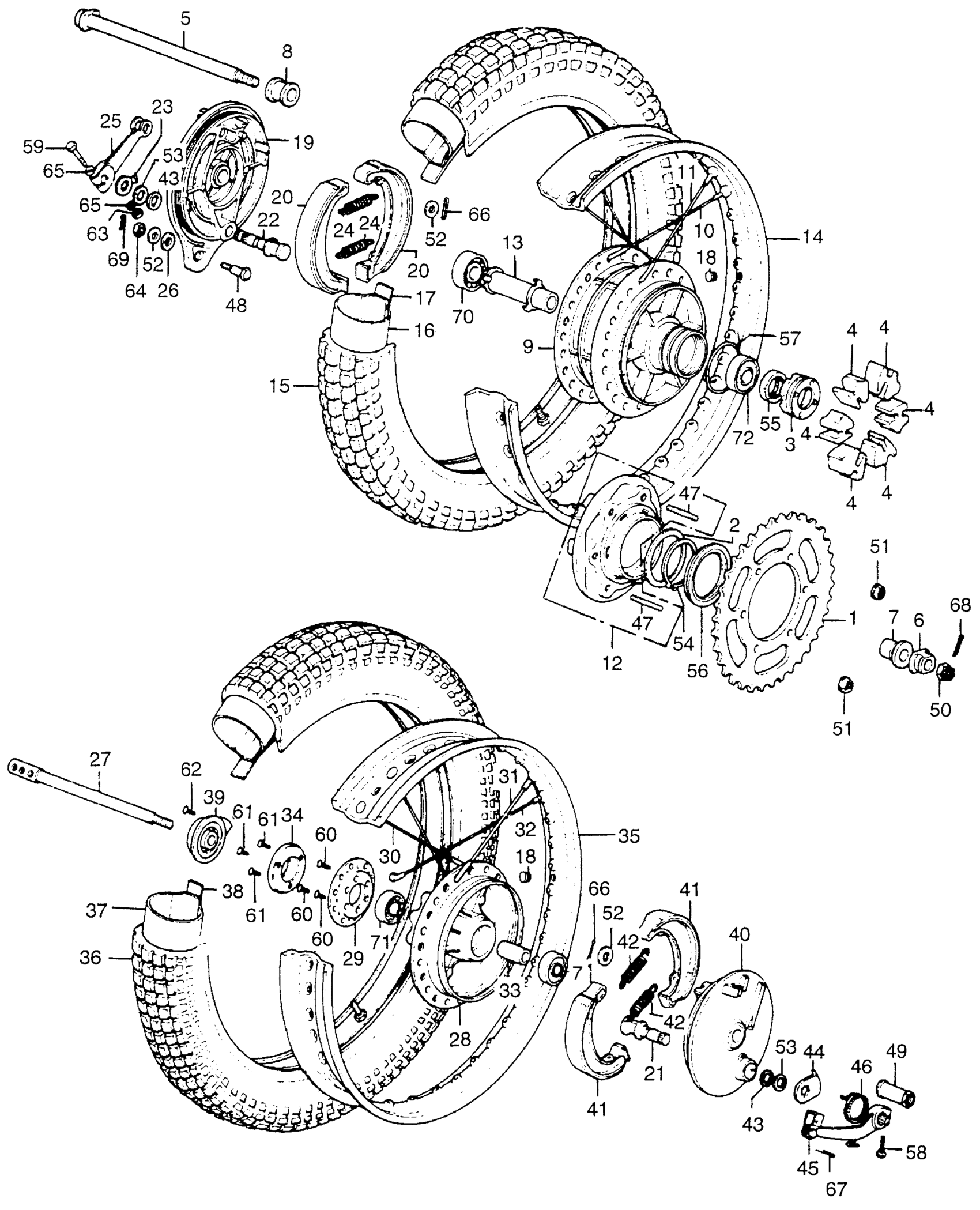

Honda XL350A MOTORCYCLE, JPN, VIN# XL350-1000001 TO XL350-1021659 WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (45T) (NOT AVAILABLE)

41201-356-000

Unavailable

2

WASHER (66MM) (NOT AVAILABLE)

41202-329-010

Unavailable

3

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-356-000

Unavailable

4

DAMPER, RR. WHEEL

41242-356-000

Unavailable

5

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-356-000

Unavailable

6

COLLAR, RR. AXLE (NOT AVAILABLE)

42306-356-000

Unavailable

7

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-356-000

Unavailable

8

COLLAR, RR. BRAKE PANEL SIDE

42313-356-000

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE)

42601-356-000

Unavailable

10

SPOKE A, RR. (8X160.5)

42606-356-000

Unavailable

11

SPOKE B, RR. (8X159.5)

42607-356-000

Unavailable

12

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42615-356-000

Unavailable

13

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-356-000

Unavailable

14

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 42701-357-000.

42701-385-741

Unavailable

14

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 42701-381-003.

42701-385-741

Unavailable

14

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE)

42701-385-741

Unavailable

15

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) | Use up to Frame SN 1022687 This part replaces 42711-329-671.

42711-329-672

Unavailable

15

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE)

42711-329-672

Unavailable

15

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-356-671.

42711-329-672

Unavailable

16

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

16

TUBE, TIRE | Use from Frame SN 1022688 This part replaces 42712-300-000.

42712-KT1-673

$37.60

16

TUBE, TIRE | Use from Frame SN 1022688 This part replaces 42712-300-003.

42712-KT1-673

$37.60

16

TUBE, TIRE | Use from Frame SN 1022688 This part replaces 42712-310-004.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

16

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

17

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE) | Use from Frame SN 1022688

42713-300-003

$5.69

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

18

CAP, RIM HOLE

42717-329-000

$4.21

19

PANEL, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1016909

43100-356-000

Unavailable

20

SHOE SET, BRAKE (ASK) | Use up to Frame SN 1021819 This part replaces 43120-329-000.

06450-KC2-680

$42.29

20

SHOE SET, BRAKE (ASK) | Use up to Frame SN 1021819 This part replaces 43120-329-670.

06450-KC2-680

$42.29

21

CAM, RR. BRAKE | Use up to Frame SN 1021819

43141-286-010

Unavailable

21

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1021820

45141-329-770

Unavailable

22

CAM, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1021819

43141-312-000

Unavailable

22

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1021820

43141-329-770

Unavailable

23

INDICATOR, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1021820

43145-329-770

Unavailable

24

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

25

ARM, RR. BRAKE | Use up to Frame SN 1021819

43410-KC5-000

Unavailable

25

ARM, RR. BRAKE | Use from Frame SN 1021820

43410-KC5-000

Unavailable

25

ARM, RR. BRAKE | Use up to Frame SN 1021819 This part replaces 43410-312-000.

43410-KC5-000

Unavailable

25

ARM, RR. BRAKE | Use up to Frame SN 1021819 This part replaces 43410-329-770.

43410-KC5-000

Unavailable

25

ARM, RR. BRAKE | Use from Frame SN 1021820 This part replaces 43410-329-770.

43410-KC5-000

Unavailable

26

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

27

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-329-000

Unavailable

28

HUB, FR. WHEEL (NOT AVAILABLE)

44601-356-000

Unavailable

28

HUB, FR. WHEEL

44601-356-670

Unavailable

29

FLANGE, FR. SPOKE (NOT AVAILABLE)

44603-329-000

Unavailable

30

SPOKE A ASSY., FR. (NOT AVAILABLE) This part replaces 44606-356-000.

44606-358-305

Unavailable

30

SPOKE A ASSY., FR. (NOT AVAILABLE)

44606-358-305

Unavailable

31

SPOKE B ASSY., FR. (NOT AVAILABLE) This part replaces 44607-356-000.

44607-358-305

Unavailable

31

SPOKE B ASSY., FR. (NOT AVAILABLE)

44607-358-305

Unavailable

32

SPOKE C, FR. (8X236)

44608-356-000

$2.67

33

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

34

RETAINER, GEAR BOX (NOT AVAILABLE)

44641-356-000

$16.41

35

RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 44701-356-000.

44701-385-405

Unavailable

35

RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE)

44701-385-405

Unavailable

35

RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 44701-385-741.

44701-385-405

Unavailable

36

TIRE, FR. (3.00-21) (NITTO) (NOT AVAILABLE) | Use up to Frame SN 1022687

44711-356-006

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

37

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

38

FLAP, TIRE (1.4X21) (BS) (NA USE ALT:44713-MG7-003) | Use up to Frame SN 1022687

44713-329-003

Unavailable

38

FLAP, TIRE (21) (NITTO) (NOT AVAILABLE) | Use up to Frame SN 1022687

44713-331-671

Unavailable

38

FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE) | Use from Frame SN 1022688

44713-340-003

Unavailable

38

FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE) | Use from Frame SN 1022688 This part replaces 44713-340-006.

44713-340-003

Unavailable

39

BOX, SPEEDOMETER GEAR

44800-329-000

Unavailable

40

PANEL, FR. BRAKE | Use up to Frame SN 1021820

45100-329-770

Unavailable

40

PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1021819

45100-356-000

Unavailable

41

SHOE, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1021819 This part replaces 45120-329-000.

45120-329-670

Unavailable

41

SHOE, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1021819

45120-329-670

Unavailable

42

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

43

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

44

INDICATOR, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1021820

45145-329-770

Unavailable

45

ARM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1021819

45410-329-010

Unavailable

45

ARM, FR. BRAKE | Use from Frame SN 1021820

45410-329-770

Unavailable

46

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45435-329-000

Unavailable

47

BOLT, STUD (8X45)

90125-329-010

$3.26

48

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

48

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

49

NUT, FR. WHEEL AXLE (NOT AVAILABLE)

90305-329-000

Unavailable

50

NUT, RR. WHEEL AXLE | Use up to Frame SN 1016400 This part replaces 90306-268-000.

90306-329-770

$7.58

50

NUT, RR. WHEEL AXLE | Use up to Frame SN 1016400

90306-329-770

$7.58

50

NUT, RR. WHEEL AXLE | Use from Frame SN 1016401

90306-329-770

$7.58

51

NUT, HEX. (8MM)

90309-357-000

$3.40

52

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

53

WASHER (14MM)

90549-121-000

Unavailable

54

CIRCLIP (OUTER) (65MM)

90665-329-000

Unavailable

55

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

55

DUST SEAL (30X45X9.5) This part replaces 91253-356-005.

91253-286-013

$6.81

56

DUST SEAL (65X85X7.5) (NOT AVAILABLE)

91256-356-005

Unavailable

57

O-RING (62X2)

91262-329-010

Unavailable

58

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

58

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

59

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

59

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

59

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

60

SCREW, FLAT (5X16)

93600-05016-0A

$1.49

61

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

61

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

62

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

63

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM)

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

64

NUT, HEX. (8MM)

94001-08000-0S

$1.49

65

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

65

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

65

WASHER, PLAIN (6MM)

94101-06800

$1.49

66

PIN, COTTER (2.0X15)

94201-20150

$1.49

67

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

67

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

67

PIN, COTTER (2.0X22)

94201-20220

$1.49

67

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

67

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

67

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

67

PIN, COTTER (2.0X35)

94201-20350

$1.49

67

PIN, COTTER (2.0X22)

94201-29220

$1.49

68

PIN, COTTER (4.0X30)

94201-40300

$1.49

69

PIN, LOCK (8MM)

94251-08000

$1.49

70

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

71

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

71

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

72

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
