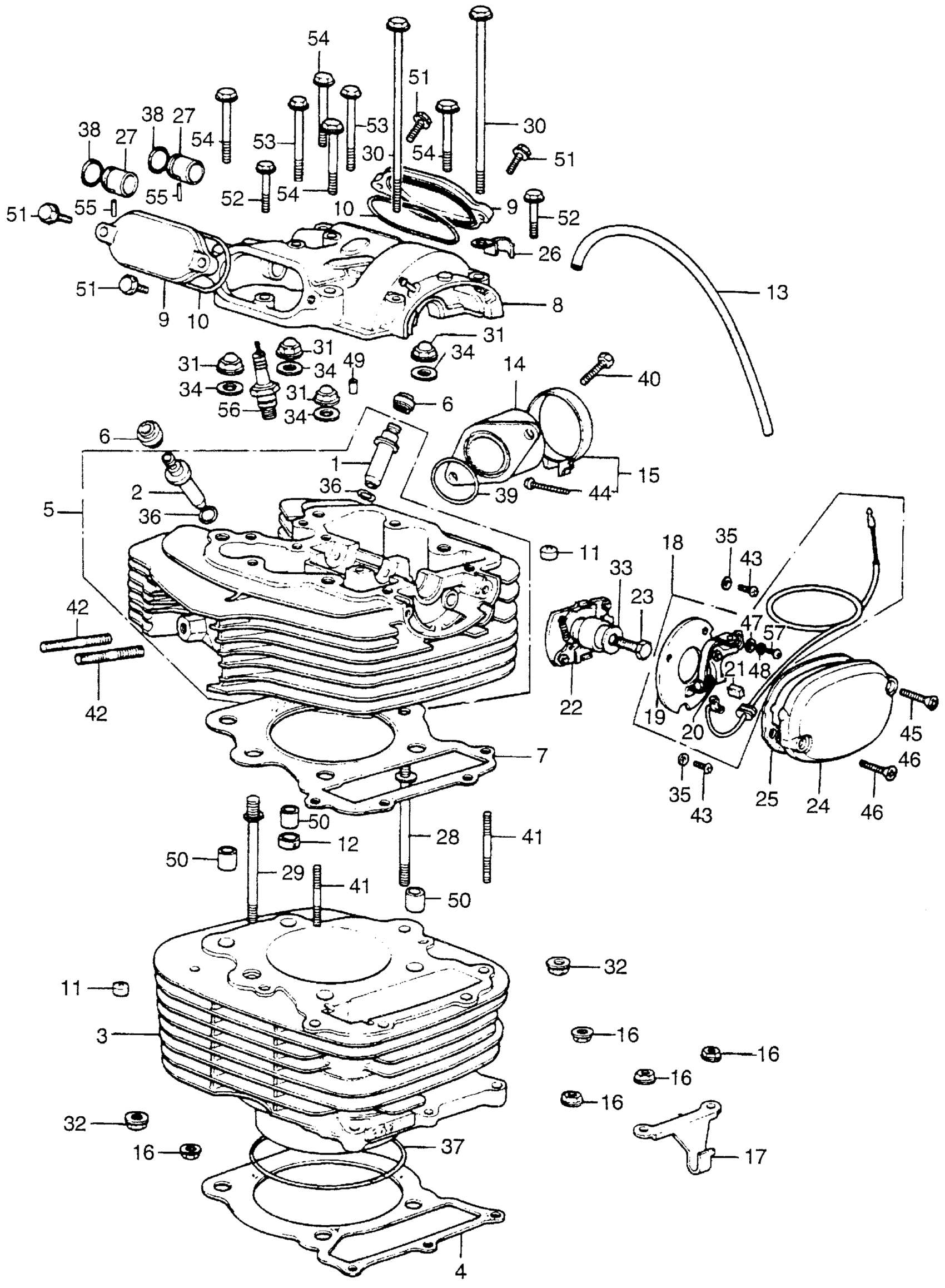

Honda XL350A MOTORCYCLE, JPN, VIN# XL350-1000001 TO XL350-1021659 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

GUIDE, EX. VALVE This part replaces 12021-329-300.

12021-329-405

Unavailable

1

GUIDE, EX. VALVE

12021-329-405

Unavailable

2

GUIDE, EX. VALVE

12021-329-405

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-356-305.

12021-329-405

Unavailable

3

CYLINDER (NOT AVAILABLE)

12100-356-010

Unavailable

4

GASKET, CYLINDER This part replaces 12191-356-000.

12191-356-306

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-356-010

Unavailable

6

SEAL, VALVE STEM (NIPPON)

12209-333-005

$10.65

7

GASKET, CYLINDER HEAD This part replaces 12251-356-010.

12251-356-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-356-306

Unavailable

8

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-356-000

Unavailable

9

COVER, VALVE ADJ. (NOT AVAILABLE) This part replaces 12351-329-000.

12351-329-770

Unavailable

9

COVER, VALVE ADJ. (NOT AVAILABLE)

12351-329-770

Unavailable

10

GASKET, VALVE ADJ. CAP

12392-329-000

Unavailable

11

RUBBER, INSERT (NOT AVAILABLE)

12620-329-000

Unavailable

12

GASKET, CYLINDER HEAD This part replaces 12909-333-000.

12909-428-003

Unavailable

12

GASKET, CYLINDER HEAD

12909-428-003

Unavailable

13

TUBE, POINT BREATHER (NOT AVAILABLE)

15772-356-000

Unavailable

14

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-356-000

Unavailable

15

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-356-000.

95018-56200

$9.55

15

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

15

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

16

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

RECEIVER, CLUTCH CABLE (NOT AVAILABLE) This part replaces 22821-356-000.

22821-356-010

Unavailable

17

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

22821-356-010

Unavailable

18

POINTS ASSY. (DENSO) (NOT AVAILABLE)

30200-329-004

Unavailable

19

PLATE, POINTS BASE (DENSO) (NOT AVAILABLE)

30201-329-004

Unavailable

20

POINTS (DENSO)

30202-107-004

$43.04

20

POINTS (TOYO)

30202-107-154

$27.89

21

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

22

ADVANCER ASSY., SPARK (DENSO) | Use up to Engine SN 1016455

30220-329-024

Unavailable

22

ADVANCER ASSY., SPARK | Use from Engine SN 1016456

30220-356-004

Unavailable

23

BOLT, SPARK ADVANCER SETTING (NOT AVAILABLE)

30225-246-004

Unavailable

24

COVER, POINTS

30370-329-000

Unavailable

25

GASKET, POINTS COVER This part replaces 30372-329-000.

30372-329-306

Unavailable

25

GASKET, POINTS COVER

30372-329-306

Unavailable

26

CLAMP A, CABLE (NOT AVAILABLE) This part replaces 32111-333-000.

32117-371-000

Unavailable

27

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE)

90011-356-000

Unavailable

28

BOLT, CYLINDER FLANGE (8MM) (NOT AVAILABLE)

90032-356-000

Unavailable

29

BOLT, CYLINDER FLANGE (12X8) (NOT AVAILABLE)

90033-356-000

Unavailable

30

BOLT, FLANGE (6X130) This part replaces 90048-329-000.

95701-06130-00

$3.06

30

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

31

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

32

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

32

NUT, FLANGE (8MM)

94050-08000

$1.49

32

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

33

WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 90417-035-303.

90417-302-000

Unavailable

34

WASHER, SEAL (10MM)

90441-329-000

$3.60

35

WASHER (5MM)

90482-028-000

$2.09

36

O-RING (10X1.6)

91301-200-000

$3.01

37

O-RING (88X2)

91302-356-000

$9.63

38

O-RING (16X1.9)

91306-329-000

$2.92

39

O-RING (42X2.4)

91304-704-000

$3.21

39

O-RING (42X2.4) This part replaces 91325-568-000.

91304-704-000

$3.21

40

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

40

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

40

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

40

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

40

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

40

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

41

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

41

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

41

BOLT, STUD (6X28)

92900-06028-0B

$1.89

41

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

42

BOLT, STUD (8X28) This part replaces 92700-08045.

92900-08028-0B

$2.16

42

BOLT, STUD (8X28) This part replaces 92700-08045-0B.

92900-08028-0B

$2.16

42

BOLT, STUD (8X28)

92900-08028-0B

$2.16

43

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

$1.49

43

SCREW, PAN (5X10)

93500-05010-0A

$1.49

43

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

43

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

44

SCREW, PAN (5X20)

93500-05020-0G

$1.49

46

SCREW, OVAL (5X22) (SOURCE: VINTAGE PARTS INC.)

93700-05022-0A

Unavailable

47

WASHER, PLAIN (4MM)

94101-04000

$1.49

48

WASHER, SPRING (4MM)

94111-04000

$1.49

49

PIN A, DOWEL (6X10)

94301-06100

$2.25

50

PIN A, DOWEL (12X20)

94301-12200

$2.29

51

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

51

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

52

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

52

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

53

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

53

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

54

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

54

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

55

ROLLER (6X16) (NOT AVAILABLE)

96220-60160

Unavailable

56

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

56

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57711.

98069-57717

$2.44

56

SPARK PLUG (D7EA) (NGK)

98069-57717

$2.44

56

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57723.

98069-57717

$2.44

56

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

56

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

56

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

56

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

56

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44

57

SCREW, PAN (4X6) This part replaces 99500-04006-0A.

93500-04006-0A

$1.49

57

SCREW, PAN (4X6) This part replaces 99500-04007-0A.

93500-04006-0A

$1.49
