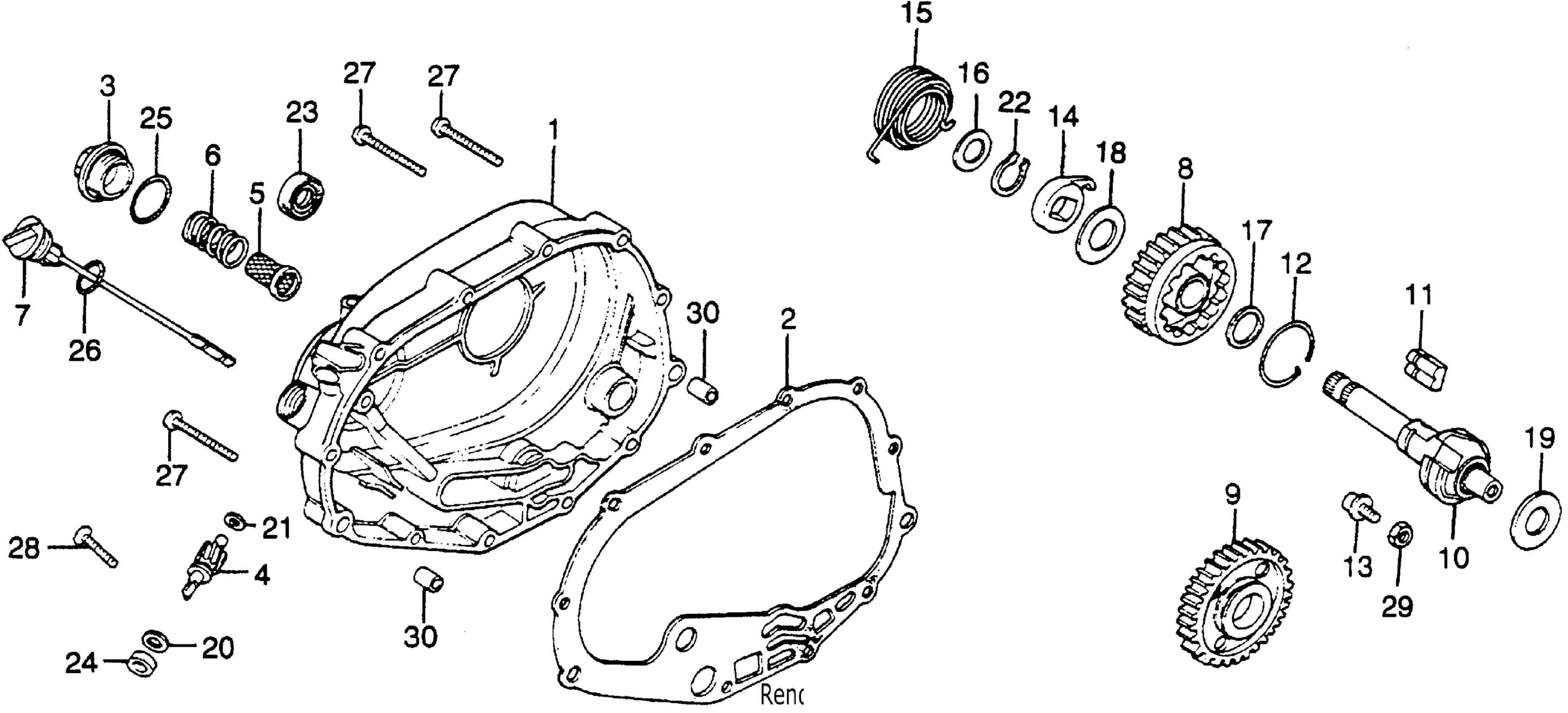

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 RIGHT CRANKCASE COVER + KICK STARTER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-385-000

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-356-000.

11394-356-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-356-306

Unavailable

3

CAP, VALVE ADJ. This part replaces 12361-107-000.

12361-383-000

$6.43

3

CAP, VALVE ADJ.

12361-383-000

$6.43

4

GEAR, TACHOMETER (10T)

12431-385-000

Unavailable

5

SCREEN, OIL FILTER (NOT AVAILABLE)

15421-329-000

Unavailable

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

7

DIPSTICK, OIL (NOT AVAILABLE)

15650-376-000

Unavailable

8

PINION, KICK STARTER (NOT AVAILABLE)

28210-356-020

Unavailable

9

GEAR, KICK STARTER IDLE (35T) (NOT AVAILABLE)

28220-385-000

Unavailable

10

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-376-000

Unavailable

11

PAWL, KICK STARTER (NOT AVAILABLE)

28252-356-000

Unavailable

12

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28253-300-000

Unavailable

13

PIN, KICK STOPPER (NOT AVAILABLE)

28254-356-000

Unavailable

14

RETAINER, KICK STARTER SPRING (NOT AVAILABLE)

28258-329-000

Unavailable

15

SPRING, KICK STARTER (NOT AVAILABLE)

28261-376-000

Unavailable

16

WASHER (18MM)

90451-357-000

Unavailable

17

WASHER A, THRUST (22MM)

90452-504-010

Unavailable

18

WASHER, THRUST (22.5MM) (NOT AVAILABLE) This part replaces 90453-704-000.

90453-426-000

Unavailable

19

WASHER (16MM) (NOT AVAILABLE)

90454-329-000

Unavailable

20

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

21

WASHER, SPEEDOMETER PINION

90539-011-000

Unavailable

22

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

23

OIL SEAL (18X29X7)

91204-286-003

$4.31

23

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

24

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

24

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

25

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

26

O-RING (23X2)

91354-371-000

$3.19

26

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

27

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

27

SCREW, PAN (6X40)

93500-06040-0A

$1.49

28

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

28

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

29

NUT, HEX. (10MM)

94002-10000-0S

$4.06

30

PIN A, DOWEL (10X14)

94301-10140

$2.28
