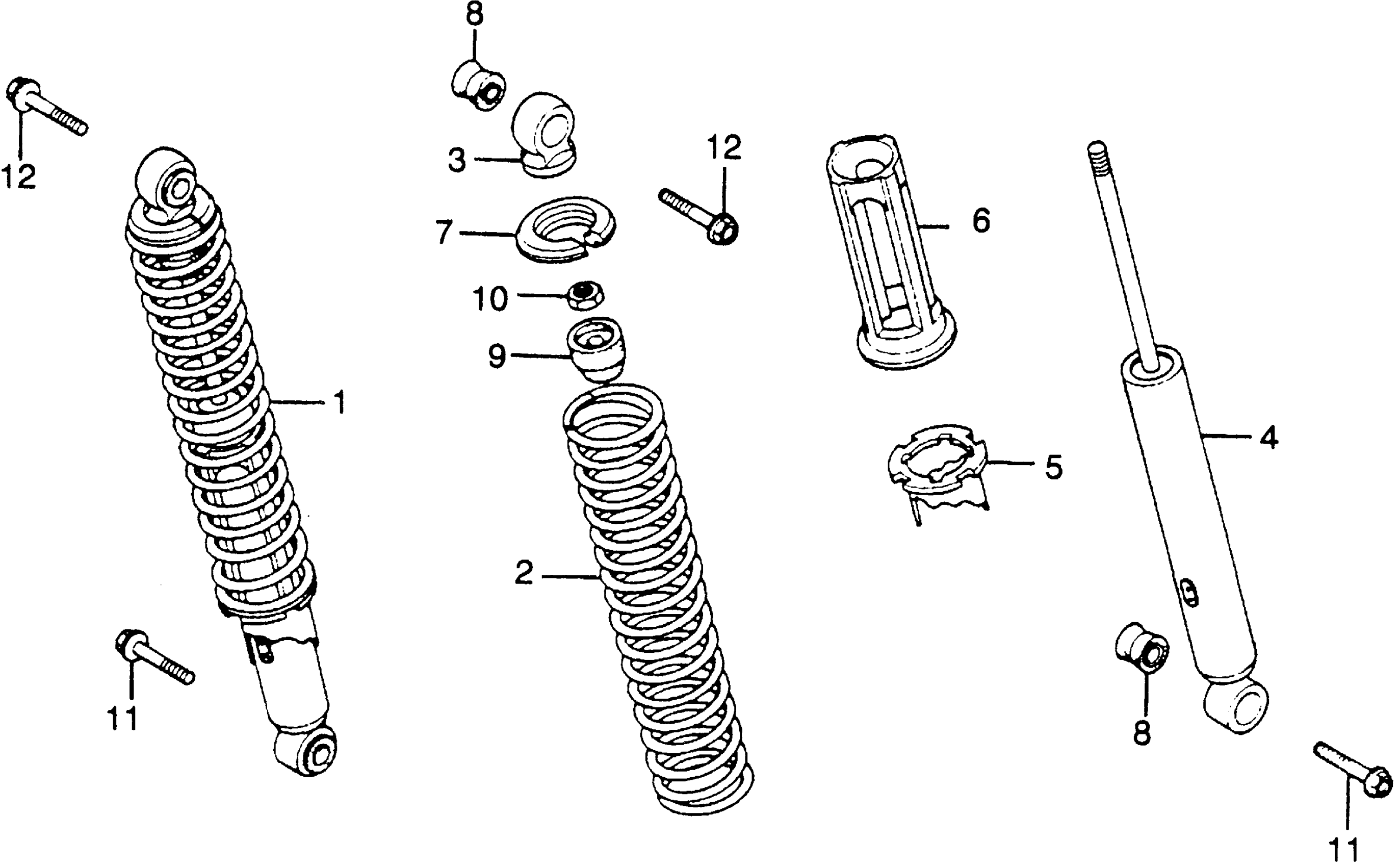

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-385-700

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-385-700

Unavailable

JOINT (UPPER) (SHOWA)

52403-385-003

Unavailable

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-385-003

Unavailable

ADJUSTER, SPRING (SHOWA) (NOT AVAILABLE)

52422-390-003

Unavailable

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

SPACER, RR. SHOCK ABSORBER (NOT AVAILABLE)

52457-356-000

Unavailable

GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52458-385-000

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

BUSH, SHOCK ABSORBER

52489-361-000

Unavailable

RUBBER, STOPPER (NOT AVAILABLE)

52517-385-000

Unavailable

NUT, HEX. (11MM) (NOT AVAILABLE)

90301-376-003

Unavailable

BOLT, HEX. (10X50) This part replaces 92000-10050-0A.

92101-10050-0A

$2.88

BOLT, HEX. (10X50)

92101-10050-0A

$2.88

WASHER, PLAIN (10MM)

94101-10000

$1.49

BOLT, FLANGE (10X32) This part replaces 95700-10032-00.

95701-10032-00

$1.49

BOLT, FLANGE (10X32)

95701-10032-00

$1.49
