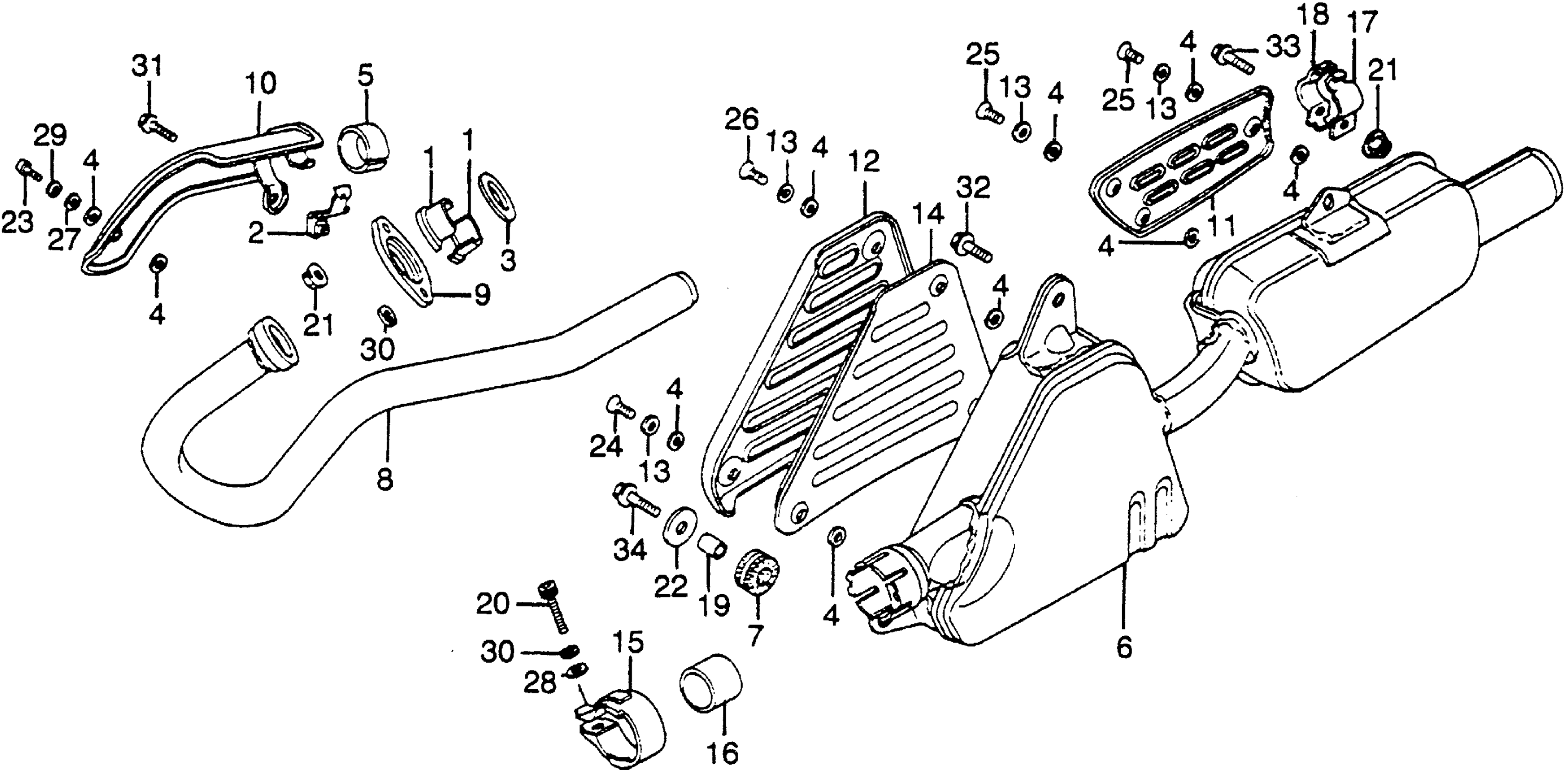

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-283-010

Unavailable

2

BAND, EX. PIPE (NOT AVAILABLE)

18282-385-000

Unavailable

3

GASKET, EX. PIPE

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-010.

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-306.

18291-MM8-880

$7.16

4

GASKET, PROTECTOR

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

5

GASKET, MUFFLER This part replaces 18293-385-000.

18392-MK4-000

$13.66

5

GASKET, MUFFLER

18392-MK4-000

$13.66

6

MUFFLER This part replaces 18300-385-000.

18300-386-405

Unavailable

6

MUFFLER This part replaces 18300-385-007.

18300-386-405

Unavailable

7

RUBBER, MUFFLER MOUNT (NOT AVAILABLE)

18313-385-000

Unavailable

8

PIPE, EX. (NOT AVAILABLE)

18320-385-000

Unavailable

9

JOINT, EX. PIPE

18322-356-000

Unavailable

10

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-385-000

Unavailable

11

PROTECTOR, SUB-MUFFLER

18335-385-000

Unavailable

12

PROTECTOR, MUFFLER (NOT AVAILABLE)

18340-385-000

Unavailable

13

WASHER, MUFFLER PROTECTOR (NOT AVAILABLE)

18341-385-000

Unavailable

14

PROTECTOR B, MUFFLER (NOT AVAILABLE)

18345-386-000

Unavailable

15

BAND, MUFFLER (NOT AVAILABLE)

18371-385-000

Unavailable

16

GASKET, MUFFLER This part replaces 18391-318-000.

18391-290-306

Unavailable

17

STAY A, SKID PLATE (NOT AVAILABLE)

50358-313-010

Unavailable

18

STAY B, SKID PLATE

50359-313-010

Unavailable

19

COLLAR, TOP BRIDGE

53236-041-000

Unavailable

20

BOLT, SOCKET

90116-391-670

Unavailable

21

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

21

NUT, FLANGE (8MM)

94050-08000

$1.49

21

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

22

WASHER (8MM) This part replaces 90428-816-000.

90428-844-650

$3.75

22

WASHER (8MM)

90428-844-650

$3.75

23

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

23

SCREW, PAN (6X12)

93500-06012-0A

$1.49

23

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

24

SCREW, OVAL (6X12) (SOURCE: VINTAGE PARTS INC.)

93700-06012-0B

Unavailable

24

SCREW, OVAL (6X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-06012-02.

93700-06012-0B

Unavailable

25

SCREW, OVAL (6X12) (NOT AVAILABLE)

93700-06012-07

Unavailable

26

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

26

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

31

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

32

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

32

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

33

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

33

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

34

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

34

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
