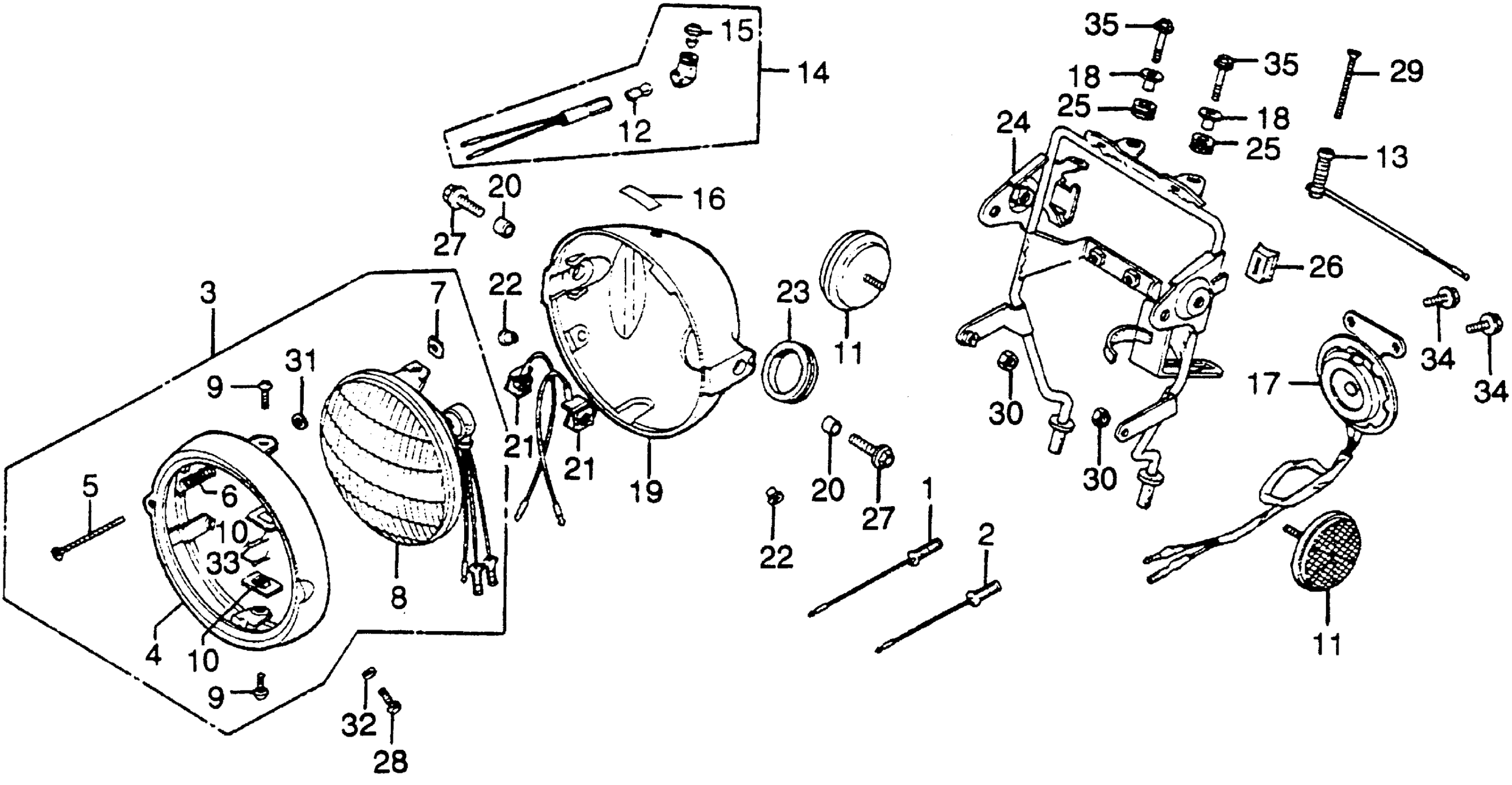

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 HEADLIGHT + HORN Diagram

#

Description
Price

1

CABLE A, SUB (NOT AVAILABLE)

32101-385-000

Unavailable

2

CABLE B, SUB (WHITE) (NOT AVAILABLE)

32102-385-000

Unavailable

3

HEADLIGHT ASSY. (6V 35/25W) (NOT AVAILABLE)

33100-329-671

Unavailable

4

RIM, HEADLIGHT (NOT AVAILABLE)

33101-329-671

Unavailable

5

SCREW, HEADLIGHT BEAM ADJUSTING

33103-329-003

Unavailable

5

SCREW, HEADLIGHT BEAM ADJUSTING This part replaces 33103-329-671.

33103-329-003

Unavailable

6

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

6

SPRING, HEADLIGHT BEAM ADJUSTING This part replaces 33107-283-023.

33107-200-023

$3.01

7

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

8

HEADLIGHT UNIT

33120-329-671

Unavailable

9

SCREW, UNIT HOLDER (NOT AVAILABLE)

33125-329-003

Unavailable

10

NUT, UNIT HOLDER

33128-200-033

Unavailable

11

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

12

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

13

RESISTOR (NOT AVAILABLE)

35400-329-671

Unavailable

14

LIGHT ASSY., BEAM PILOT (IMASEN) This part replaces 37550-329-005.

37550-329-015

Unavailable

14

LIGHT ASSY., BEAM PILOT (IMASEN)

37550-329-015

Unavailable

15

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE) This part replaces 37551-329-005.

37551-329-015

Unavailable

15

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE)

37551-329-015

Unavailable

16

LABEL, BEAM PILOT LAMP

37555-370-740

Unavailable

17

HORN ASSY. (NOT AVAILABLE)

38100-358-000

Unavailable

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

18

COLLAR, RR. FENDER

61105-428-000

Unavailable

19

CASE, HEADLIGHT *NH43* (PHANTOM BLACK) (NOT AVAILABLE)

61301-336-000NR

Unavailable

20

COLLAR, HEADLIGHT CASE

61302-292-000

Unavailable

21

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

22

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

23

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61304-336-003

Unavailable

24

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

61311-385-000

Unavailable

25

RUBBER, SETTING (22MM)

61315-358-000

$5.34

26

RUBBER, BRACKET SETTING

61316-361-000

Unavailable

27

BOLT, FLANGE (10X25)

90124-369-000

Unavailable

28

SCREW, PAN (5X16)

93500-05016-0B

$1.49

29

SCREW, FLAT (5X55) (SOURCE: VINTAGE PARTS INC.)

93600-05055-0A

Unavailable

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

WASHER, PLAIN (4MM)

94101-04000

$1.49

32

WASHER, SPRING (5MM)

94111-05000

$1.49

33

PIN, LOCK (5MM)

94251-05000

$1.49

34

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

34

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

35

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

35

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
