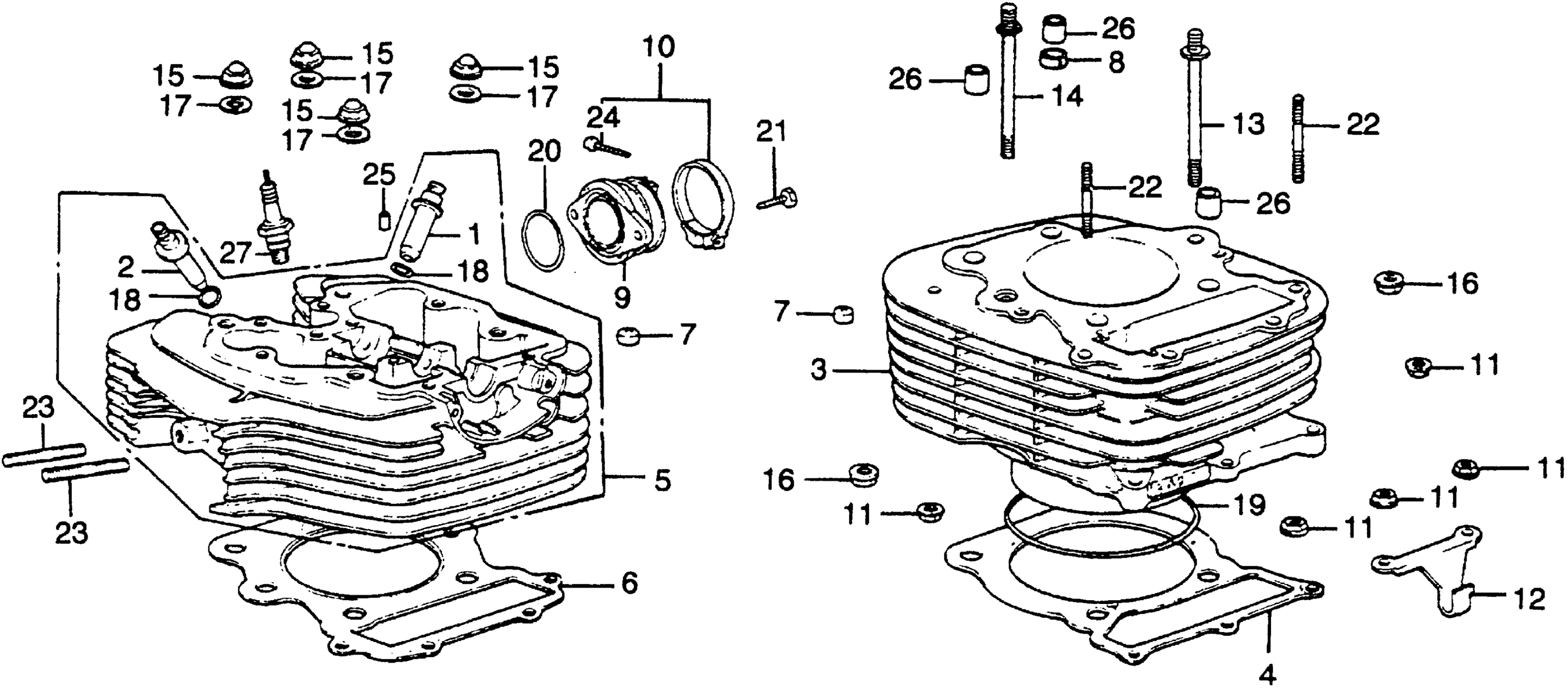

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

GUIDE, EX. VALVE This part replaces 12021-329-300.

12021-329-405

Unavailable

1

GUIDE, EX. VALVE

12021-329-405

Unavailable

2

GUIDE, EX. VALVE

12021-329-405

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-356-305.

12021-329-405

Unavailable

3

CYLINDER (NOT AVAILABLE)

12100-356-010

Unavailable

4

GASKET, CYLINDER This part replaces 12191-356-000.

12191-356-306

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-385-000

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-356-010.

12251-356-306

Unavailable

6

GASKET, CYLINDER HEAD

12251-356-306

Unavailable

7

RUBBER, INSERT (NOT AVAILABLE)

12620-329-000

Unavailable

8

GASKET, CYLINDER HEAD This part replaces 12909-333-000.

12909-428-003

Unavailable

8

GASKET, CYLINDER HEAD

12909-428-003

Unavailable

9

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-385-680

Unavailable

10

BAND, CARBURETOR INSULATOR (NOT AVAILABLE)

17255-385-680

Unavailable

11

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

11

NUT, FLANGE (6MM)

94050-06000

$1.49

12

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

22821-356-010

Unavailable

13

BOLT, CYLINDER FLANGE (8MM) (NOT AVAILABLE)

90032-356-000

Unavailable

14

BOLT, CYLINDER FLANGE (12X8) (NOT AVAILABLE)

90033-356-000

Unavailable

15

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

16

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

16

NUT, FLANGE (8MM)

94050-08000

$1.49

16

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

17

WASHER, SEAL (10MM)

90441-329-000

$3.60

18

O-RING (10X1.6)

91301-200-000

$3.01

19

O-RING (88X2)

91302-356-000

$9.63

20

O-RING (42X2.4)

91304-704-000

$3.21

20

O-RING (42X2.4) This part replaces 91325-568-000.

91304-704-000

$3.21

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

22

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

22

BOLT, STUD (6X28)

92900-06028-0B

$1.89

22

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

23

BOLT, STUD (8X28) This part replaces 92700-08045.

92900-08028-0B

$2.16

23

BOLT, STUD (8X28) This part replaces 92700-08045-0B.

92900-08028-0B

$2.16

23

BOLT, STUD (8X28)

92900-08028-0B

$2.16

24

SCREW, PAN (5X20)

93500-05020-0G

$1.49

25

PIN A, DOWEL (6X10)

94301-06100

$2.25

26

PIN A, DOWEL (12X20)

94301-12200

$2.29

27

SPARK PLUG (D7EA) (NGK)

98069-57717

$2.44

27

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

27

SPARK PLUG (X22ES-U) (DENSO)

98069-57727

Unavailable

27

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$2.20
