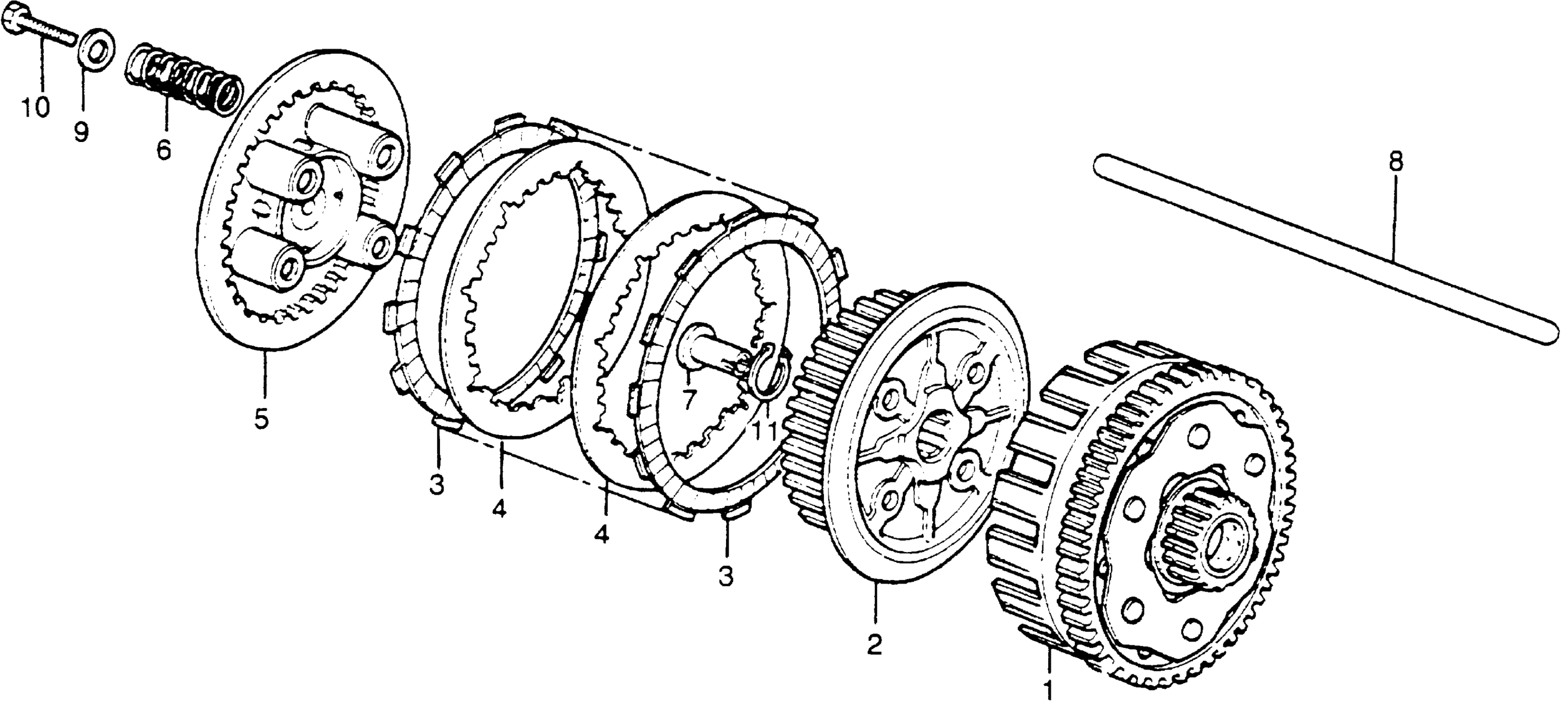

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 CLUTCH Diagram

CLUTCH (OUTER) (NOT AVAILABLE)

22100-356-000

Unavailable

CENTER, CLUTCH

22120-329-010

Unavailable

DISK, CLUTCH FRICTION

22201-286-010

$19.81

PLATE B, CLUTCH

22321-329-000

$16.92

PLATE, CLUTCH PRESSURE

22350-329-000

Unavailable

SPRING, CLUTCH

22401-356-000

Unavailable

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-329-000

Unavailable

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-329-770

Unavailable

WASHER (6X19)

90481-259-000

Unavailable

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
