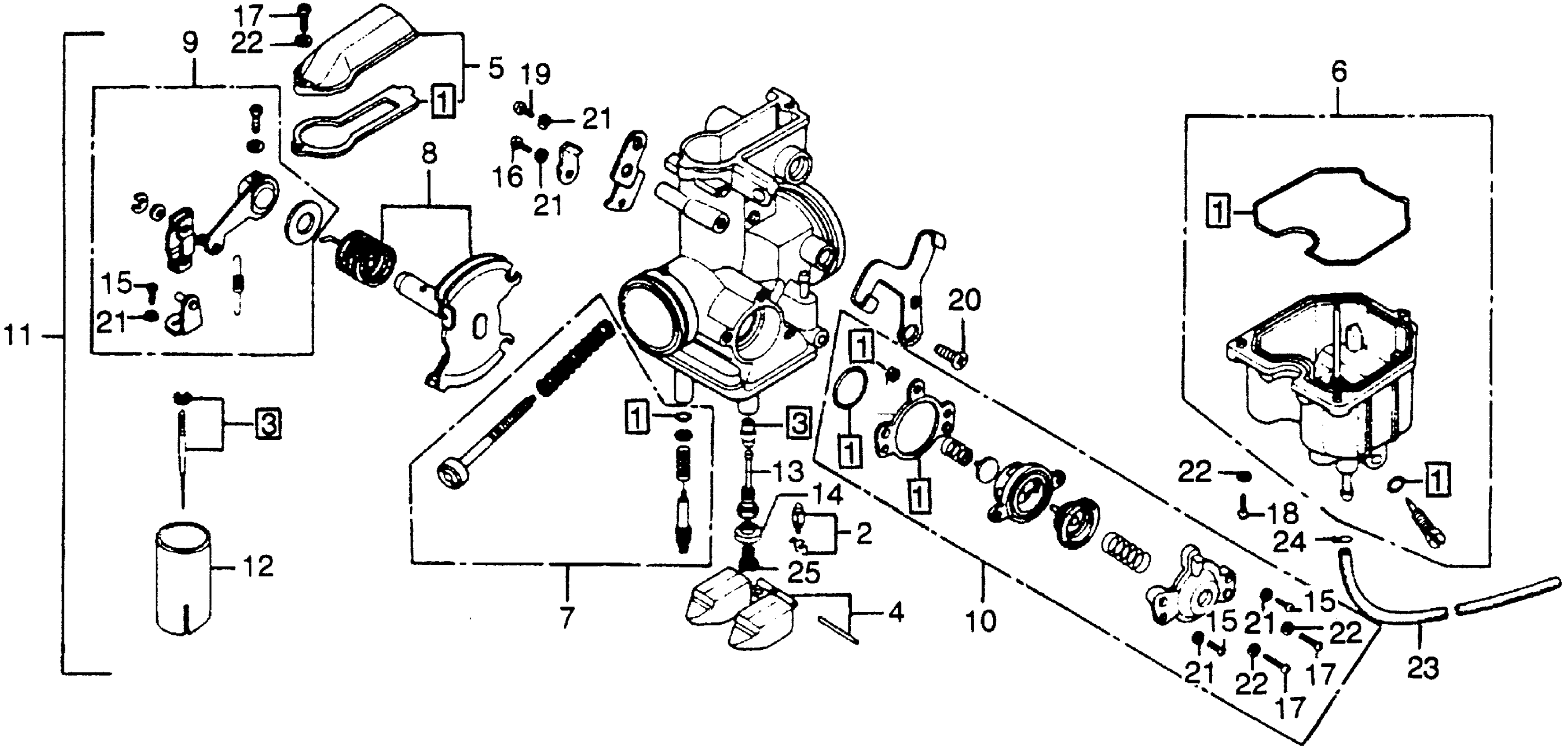

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 CARBURETOR 77-78 Diagram

GASKET SET This part replaces 16010-385-680.

16010-386-305

Unavailable

VALVE SET, FLOAT This part replaces 16011-KG0-004.

16011-KCK-910

$33.82

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

VALVE SET, FLOAT This part replaces 16011-393-004.

16011-KCK-910

$33.82

NEEDLE SET, JET (NOT AVAILABLE)

16012-385-680

Unavailable

FLOAT SET

16013-KCY-670

$64.31

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

TOP SET

16014-KCE-771

Unavailable

TOP SET This part replaces 16014-KR6-004.

16014-KCE-771

Unavailable

TOP SET This part replaces 16014-385-680.

16014-KCE-771

Unavailable

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

CHAMBER SET, FLOAT This part replaces 16015-393-004.

16015-KN4-A10

$97.52

CHAMBER SET, FLOAT This part replaces 16015-428-014.

16015-KN4-A10

$97.52

SCREW SET (NOT AVAILABLE)

16016-385-680

Unavailable

LINK SET

16017-385-680

Unavailable

ARM SET, LINK

16018-385-680

Unavailable

VALVE SET, AIR CUT (NOT AVAILABLE)

16048-385-680

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE)

16100-385-681

Unavailable

VALVE SET, THROTTLE

16111-385-680

Unavailable

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-385-680

Unavailable

HOLDER, JET

16168-382-014

$9.81

SCREW, PAN (3X8)

93500-03008-0H

$1.49

SCREW, PAN (4X8)

93500-04008-0H

$1.49

SCREW, PAN (4X12)

93500-04012-0H

$1.49

SCREW, PAN (4X16)

93500-04016-0H

$1.49

SCREW, PAN (5X8)

93500-05008-0H

$1.49

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

WASHER, SPRING (3MM)

94111-03800

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49

BULK HOSE, FUEL (3.5X3000) (3.5X360)

95001-35003-60M

$20.85

CLIP, TUBE (B7)

95002-02070

$1.80

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.77

JET, MAIN (#115)

99101-MAZ-1150

$8.77

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.77
