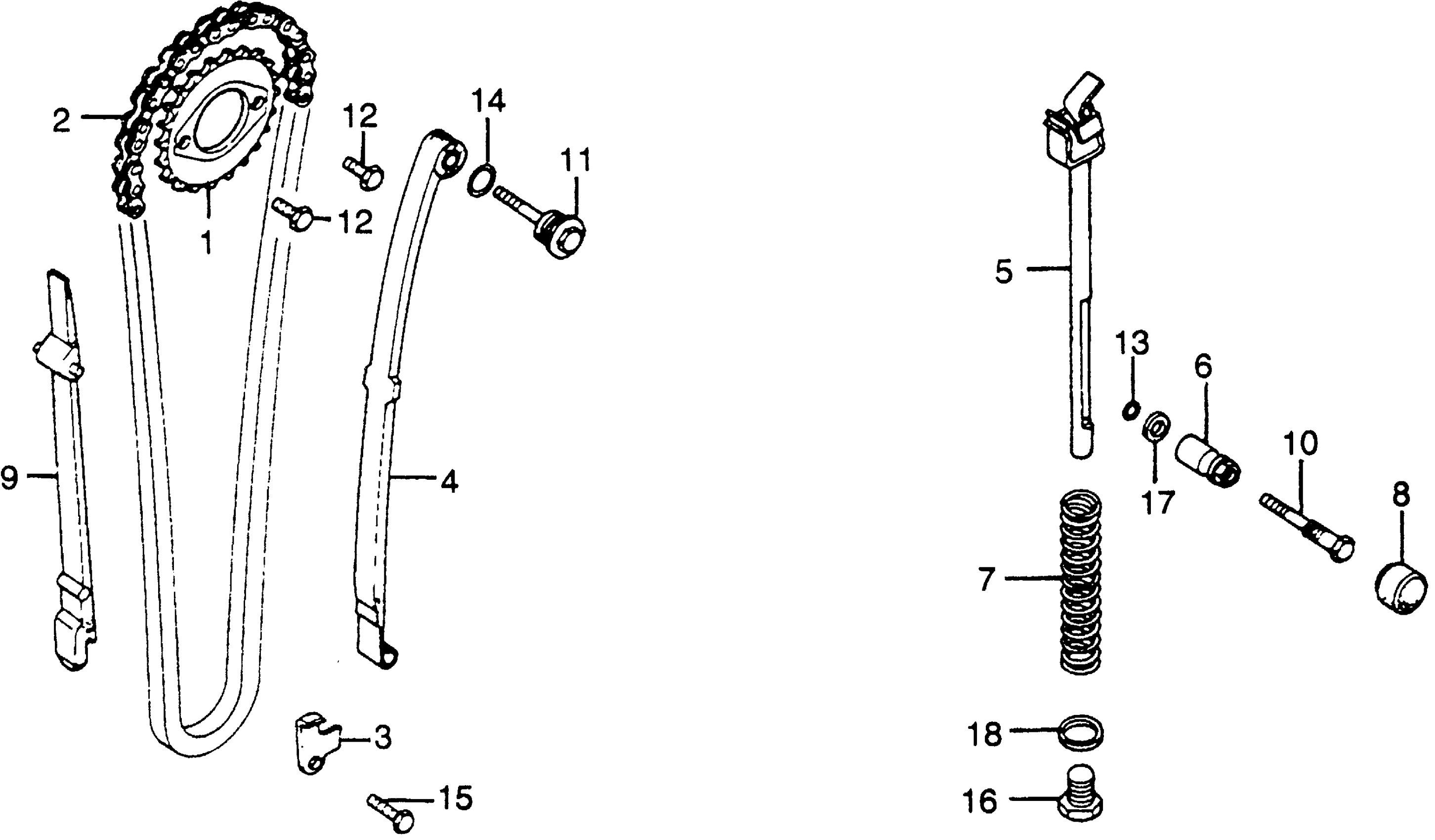

Honda XL350A (78) MOTORCYCLE, JPN, VIN# XL350-3200001 TO XL350-3207569 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (NOT AVAILABLE)

14321-329-000

Unavailable

2

CHAIN, CAM (DAIDO) (NOT AVAILABLE)

14401-356-003

Unavailable

3

PLATE, CAM CHAIN SET (NOT AVAILABLE)

14414-329-000

Unavailable

4

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-356-003

Unavailable

5

BAR, CAM CHAIN TENSIONER SETTING

14510-329-000

Unavailable

6

NUT, CAM CHAIN TENSIONER SETTING (NOT AVAILABLE)

14515-329-000

Unavailable

7

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-329-000

Unavailable

8

CAP, CAM CHAIN TENSIONER SETTING BOLT (NOT AVAILABLE)

14561-391-000

Unavailable

9

GUIDE, CAM CHAIN (NOT AVAILABLE)

14611-376-000

Unavailable

10

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90018-329-000

Unavailable

11

BOLT, TENSIONER (NOT AVAILABLE)

90019-329-000

Unavailable

12

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

12

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

13

O-RING (4.9X2.5) This part replaces 91301-283-005.

91301-426-010

$3.60

13

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

13

O-RING (4.9X2.5)

91301-426-010

$3.60

14

O-RING (13X2.5)

91319-300-000

$5.07

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49
