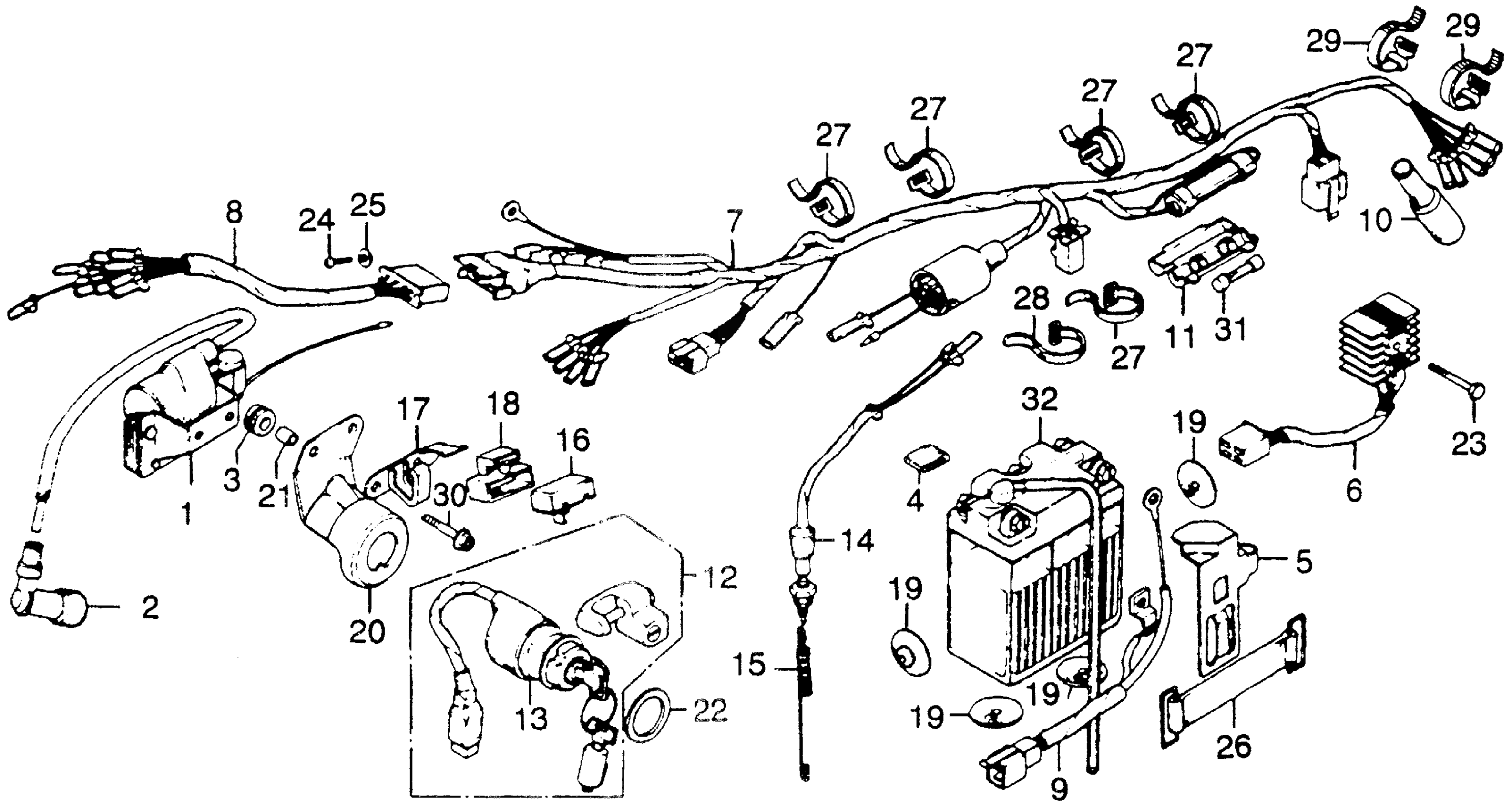

Honda XL350A (76) MOTORCYCLE, JPN, VIN# XL350-3000001 TO XL350-3008851 WIRE HARNESS + IGNITION COIL + BATTERY Diagram

#

Description
Price

1

COIL ASSY., IGNITION This part replaces 30500-376-003.

30530-376-405

Unavailable

1

COIL ASSY., IGNITION This part replaces 30530-376-003.

30530-376-405

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30600-918-670.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

3

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

4

RUBBER B, BATTERY SETTING

31503-044-670

$2.56

5

COVER, BATTERY (NOT AVAILABLE)

31532-385-000

Unavailable

6

RECTIFIER ASSY.

31700-385-000

Unavailable

7

WIRE HARNESS A (NOT AVAILABLE)

32100-385-000

Unavailable

8

WIRE HARNESS B (NOT AVAILABLE)

32105-385-000

Unavailable

9

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

32106-356-000

Unavailable

10

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

11

CASE, FUSE (10A) (NOT AVAILABLE)

32120-329-000

Unavailable

12

LOCK SET (NOT AVAILABLE) | Use up to Frame SN 3009552

35010-385-670

Unavailable

13

SWITCH ASSY., COMBINATION (HONDALOCK) (NOT AVAILABLE) This part replaces 35100-391-003.

35100-391-007

Unavailable

13

SWITCH ASSY., COMBINATION (HONDALOCK) (NOT AVAILABLE)

35100-391-007

Unavailable

14

SWITCH ASSY., STOP (NOT AVAILABLE) This part replaces 35350-240-000.

35350-240-305

Unavailable

14

SWITCH ASSY., STOP (NOT AVAILABLE)

35350-240-305

Unavailable

15

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-387-770

Unavailable

16

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

16

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

16

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

16

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

16

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

16

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

17

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38301-386-000

Unavailable

18

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

19

RUBBER B, BATTERY

50327-300-000

$4.58

19

RUBBER B, BATTERY This part replaces 50327-300-010.

50327-300-000

$4.58

20

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-385-000

Unavailable

21

COLLAR, TAILLIGHT UNIT

84706-342-000

Unavailable

22

WASHER (25X33) This part replaces 90501-374-003.

90501-374-007

Unavailable

23

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

23

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

23

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

24

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-24110

Unavailable

25

WASHER, PLAIN (4MM)

94101-04000

$1.49

26

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

26

BAND B2, BATTERY

95012-13001

$5.28

27

BAND B1, CABLE

32161-404-000

$2.23

27

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

28

BAND A2, CABLE

95014-61200

$2.33

29

BAND B1, CABLE

95014-62100

$1.64

30

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

30

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

31

FUSE A (10A)

98200-11000

$1.80

32

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

32

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable
