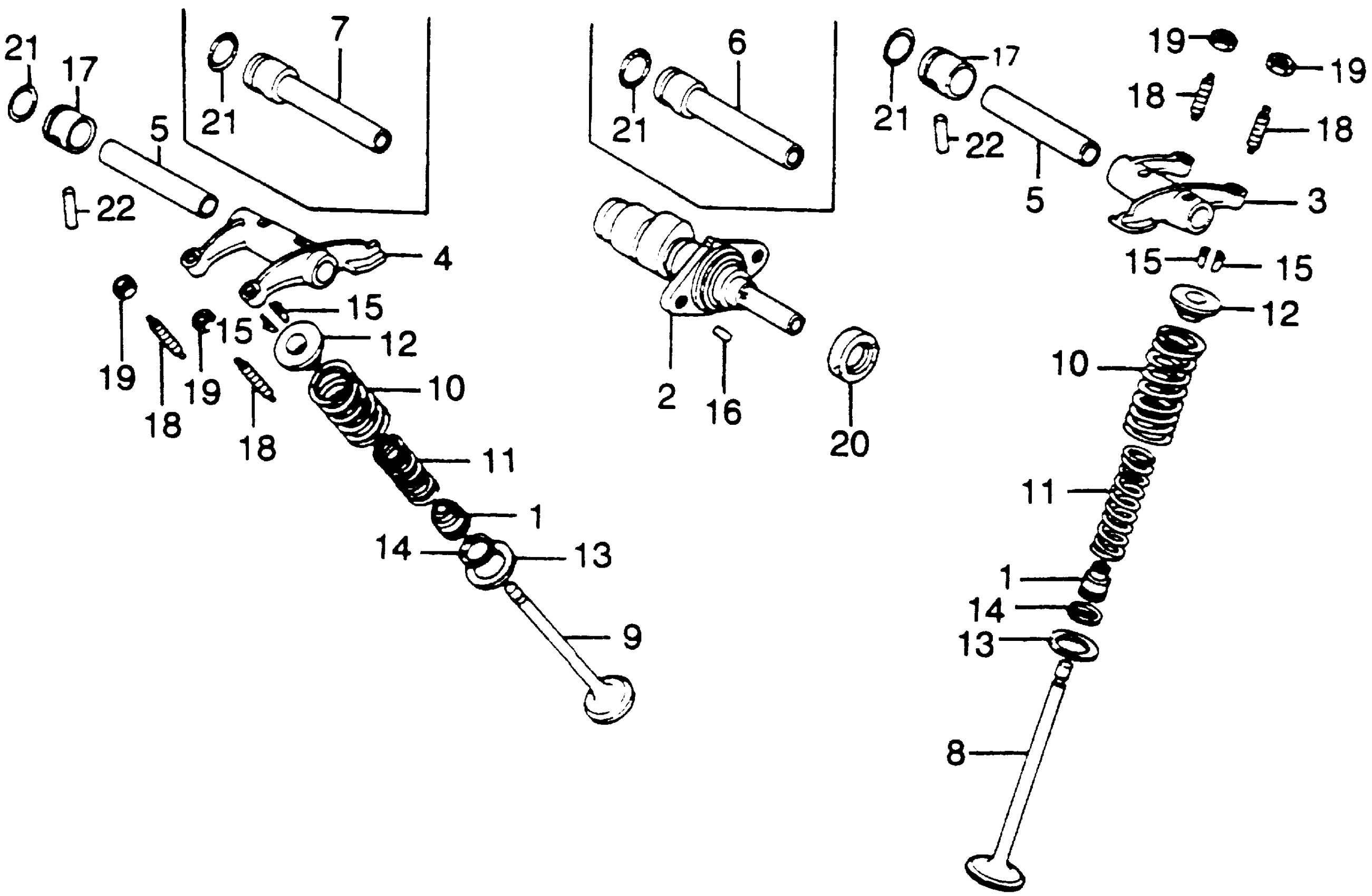

Honda XL350A (76) MOTORCYCLE, JPN, VIN# XL350-3000001 TO XL350-3008851 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (NIPPON)

12209-333-005

$10.65

2

CAMSHAFT (NOT AVAILABLE)

14101-356-000

Unavailable

3

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-356-010

$76.15

4

ARM, VALVE ROCKER (NOT AVAILABLE)

14441-385-000

Unavailable

5

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-385-000

Unavailable

8

VALVE, IN. (NOT AVAILABLE)

14711-356-000

Unavailable

9

VALVE, EX. (NOT AVAILABLE)

14721-356-000

Unavailable

10

SPRING, VALVE (OUTER) (NIPPON HATSUJO) (NOT AVAILABLE)

14751-329-005

Unavailable

11

SPRING, VALVE (INNER) (NIPPON HATSUJO) (NOT AVAILABLE)

14761-329-005

Unavailable

12

RETAINER, VALVE SPRING

14771-329-000

$5.93

13

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-329-000

Unavailable

14

SEAT, VALVE SPRING (INNER)

14776-MA6-000

Unavailable

14

SEAT, VALVE SPRING (INNER) This part replaces 14776-329-000.

14776-MA6-000

Unavailable

15

COTTER, VALVE (SANKO)

14781-107-003

$2.55

15

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

16

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

17

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE)

90011-356-000

Unavailable

18

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

18

SCREW, TAPPET ADJ.

90012-426-000

$5.94

19

NUT, TAPPET ADJ.

90206-250-000

$2.94

20

OIL SEAL (15X27X7)

91207-329-003

Unavailable

21

O-RING (16X1.9)

91306-329-000

$2.92

22

ROLLER (6X16) (NOT AVAILABLE)

96220-60160

Unavailable
