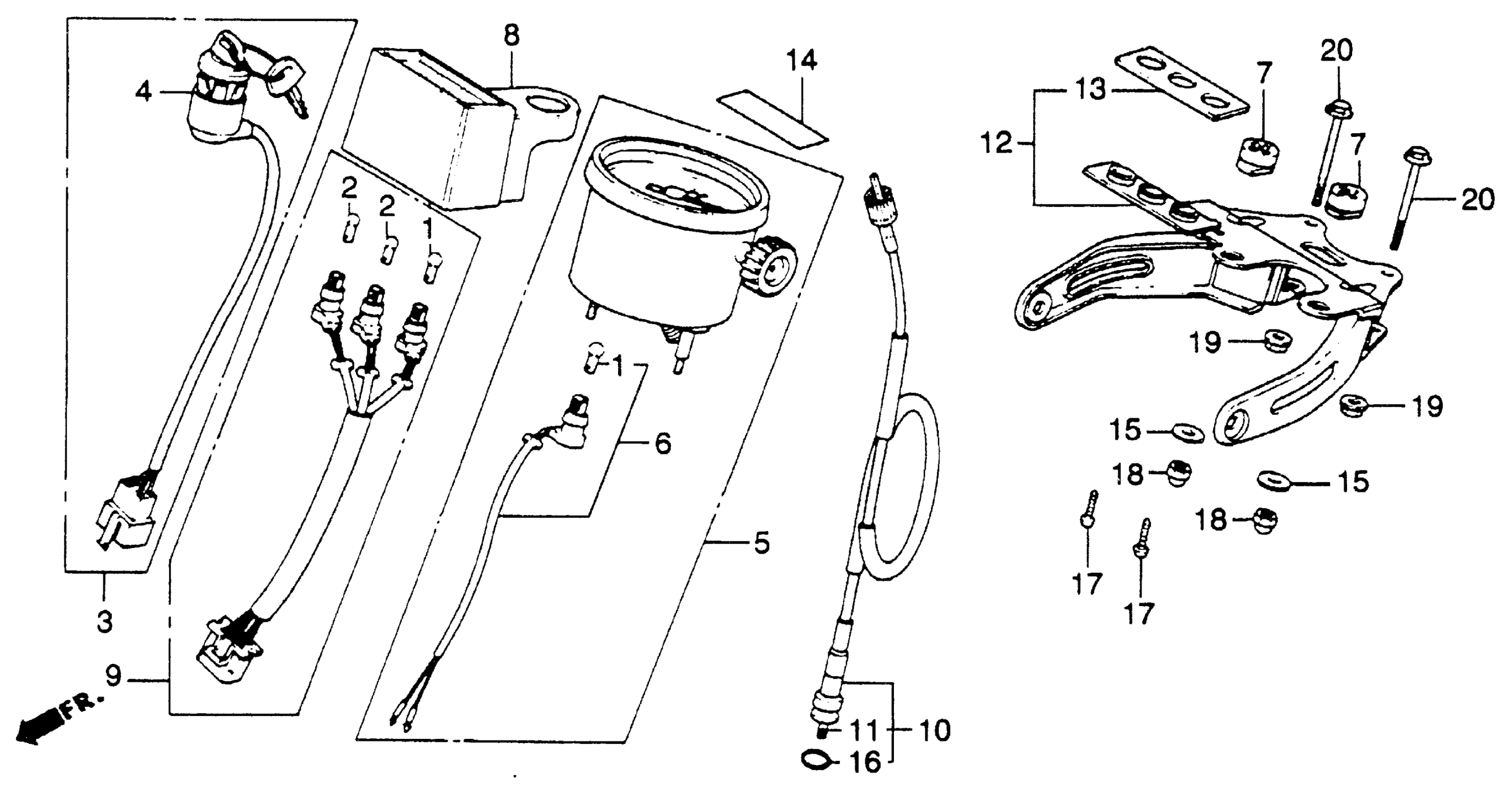

Honda XL250SA (81) MOTORCYCLE, JPN, VIN# JH2MD010-BM300001 TO JH2MD010-BM306471 SPEEDOMETER 81 Diagram

#

Description
Price

1

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

2

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

3

LOCK SET (NOT AVAILABLE)

35010-428-730

Unavailable

4

SWITCH ASSY., COMBINATION

35100-428-405

Unavailable

4

SWITCH ASSY., COMBINATION This part replaces 35100-428-840.

35100-428-405

Unavailable

5

SPEEDOMETER ASSY. (MPH) | Use up to Frame SN BM300890 This part replaces 37200-428-731.

37200-428-732

Unavailable

5

SPEEDOMETER ASSY. (MPH) | Use up to Frame SN BM300890

37200-428-732

Unavailable

5

SPEEDOMETER ASSY. (MPH)

37200-428-732

Unavailable

6

SOCKET, ILLUMINATION (NOT AVAILABLE)

37224-437-711

Unavailable

7

RUBBER, SPEEDOMETER SETTING

37242-429-000

Unavailable

8

CASE, PILOT (NOT AVAILABLE)

37310-428-841

Unavailable

9

WIRE, PILOT (NOT AVAILABLE)

37311-428-841

Unavailable

10

CABLE ASSY., SPEEDOMETER

44830-KJ9-000

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-010.

44830-KJ9-000

Unavailable

10

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-900.

44830-KJ9-000

Unavailable

11

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE)

44831-KJ9-000

Unavailable

11

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE) This part replaces 44831-371-010.

44831-KJ9-000

Unavailable

12

STAY, HEADLIGHT CASE (NOT AVAILABLE)

61310-428-840

Unavailable

13

MOUNT, PILOT CASE (NOT AVAILABLE)

61313-428-840

Unavailable

14

LABEL, BREAK IN CAUTION

87523-102-720

Unavailable

15

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

16

O-RING

91351-121-710

Unavailable

17

SCREW, TAPPING (4X16)

93901-34480

$1.49

18

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

18

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

18

NUT, CAP (6MM)

94021-06020

$1.73

18

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

18

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

20

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

20

BOLT, FLANGE (6X45)

95701-06045-07

$2.06
