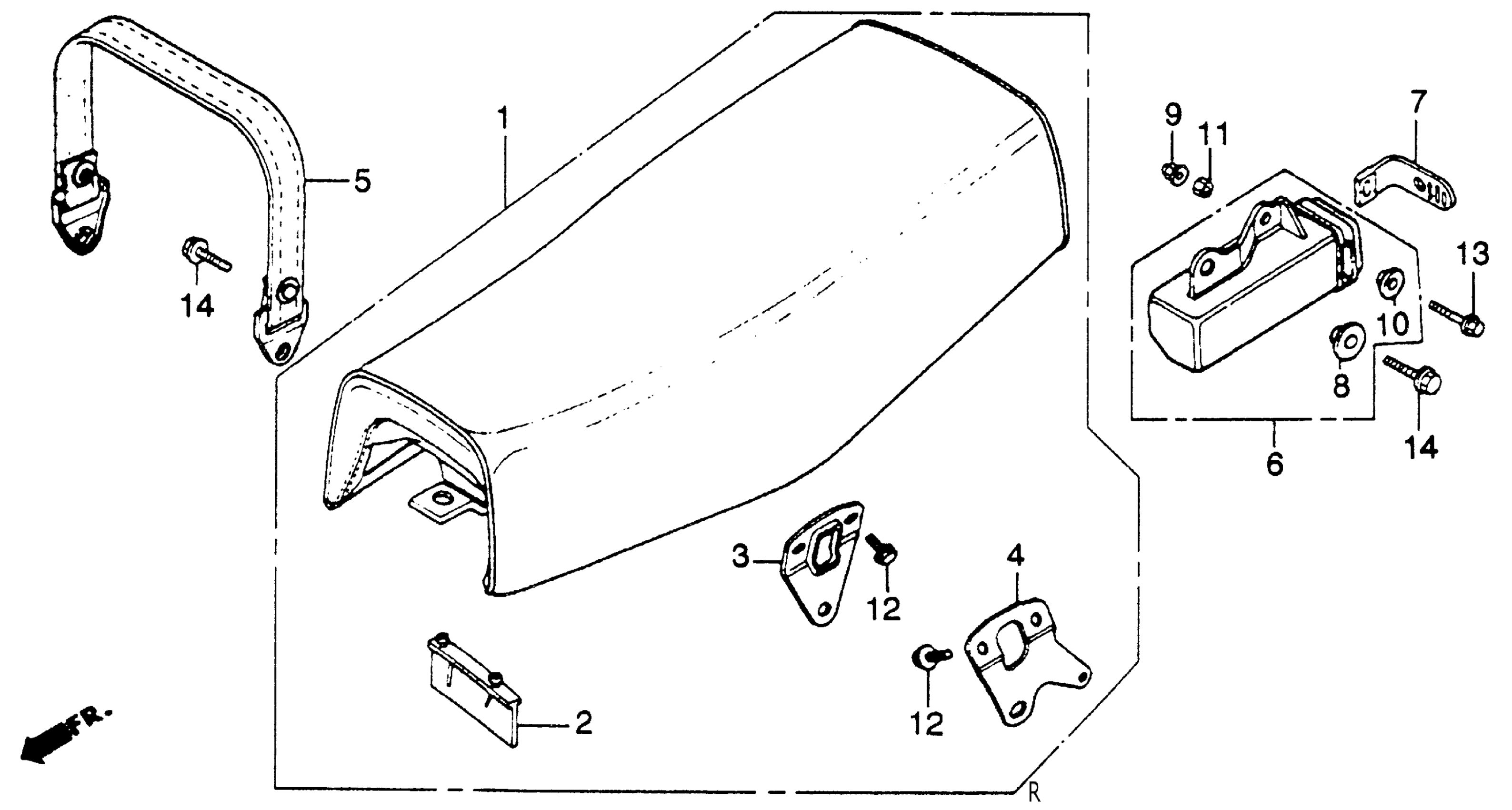

Honda XL250SA (81) MOTORCYCLE, JPN, VIN# JH2MD010-BM300001 TO JH2MD010-BM306471 SEAT 78-81 Diagram

#

Description
Price

1

SEAT ASSY. (NOT AVAILABLE)

77200-428-870

Unavailable

2

RUBBER, SEAT (NOT AVAILABLE)

77201-428-000

Unavailable

3

STAY A, R. SEAT SETTING (NOT AVAILABLE)

77202-428-000

Unavailable

4

STAY A, L. SEAT SETTING

77203-428-000

Unavailable

5

SEAT BELT (NOT AVAILABLE)

77210-428-870

Unavailable

6

BOX, TOOL

83501-428-300

Unavailable

7

BAND, TOOL BOX

83510-428-000

$4.55

8

COLLAR, TOOL BOX This part replaces 83515-428-000.

83515-KF9-900

Unavailable

9

NUT, CAP (6MM)

90201-415-000

$2.05

9

NUT, FLANGE (6MM)

94050-06000

$1.49

10

WASHER (6X20)

90512-300-000

$3.08

11

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM)

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

12

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

12

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

13

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

13

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

14

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

14

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
