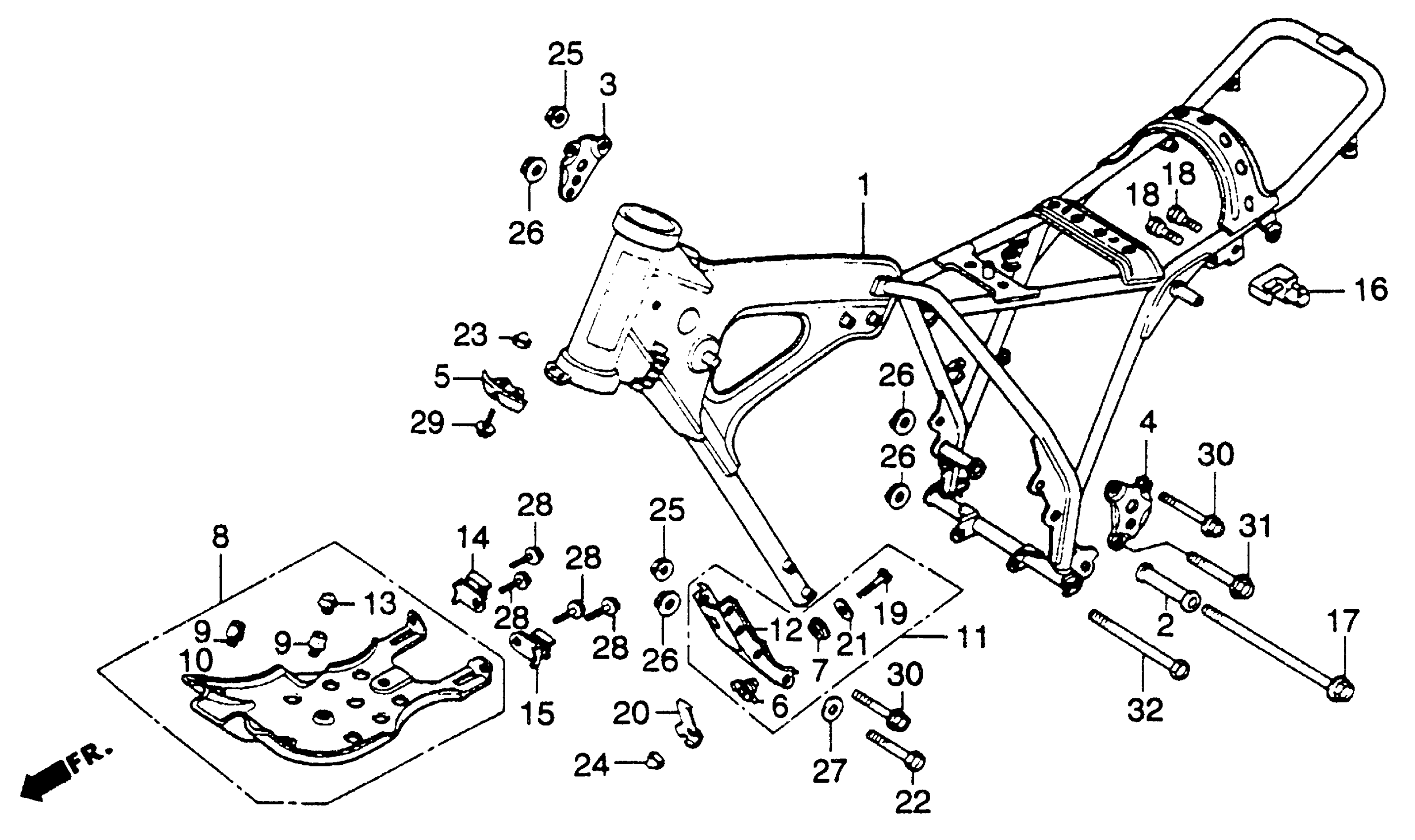

Honda XL250SA (81) MOTORCYCLE, JPN, VIN# JH2MD010-BM300001 TO JH2MD010-BM306471 FRAME 78-81 Diagram

#

Description
Price

1

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-428-870ZA

Unavailable

2

COLLAR, ENGINE HANGER (NOT AVAILABLE)

50130-428-000

Unavailable

3

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50138-428-000ZA

Unavailable

4

PLATE, L. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50139-428-000ZA

Unavailable

5

STAY, HANDLE LOCK (NOT AVAILABLE)

50141-428-000

Unavailable

8

PLATE, SKID *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

50351-428-871ZA

Unavailable

9

RUBBER A, STOPPER

50352-428-000

$2.75

10

RUBBER A, STOPPER

50352-434-000

$5.55

12

HANGER, FR. ENGINE *NH1* (BLACK) (NOT AVAILABLE)

50353-434-000ZA

Unavailable

13

RUBBER B, STOPPER

50354-428-000

$2.75

14

RUBBER, R. SKID MOUNTING (NOT AVAILABLE)

50360-428-000

Unavailable

15

RUBBER, L. SKID MOUNTING (NOT AVAILABLE)

50361-428-000

Unavailable

16

HOLDER ASSY., HELMET

50710-382-671

$72.08

17

BOLT, FLANGE (10X238) (NOT AVAILABLE)

90104-428-000

Unavailable

18

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

18

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

22

BOLT, HEX. (10X60) This part replaces 92200-10060-0A.

92201-10060-0A

$3.02

22

BOLT, HEX. (10X60)

92201-10060-0A

$3.02

23

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

23

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

23

NUT, CAP (6MM)

94021-06020

$1.73

23

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

23

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

25

NUT, FLANGE (8MM)

94050-08000

$1.49

26

NUT, FLANGE (10MM)

94050-10000

$1.59

27

WASHER, PLAIN (10MM)

94101-10000

$1.49

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

30

BOLT, FLANGE (8X60) This part replaces 95800-08060-00.

95801-08060-00

$2.48

31

BOLT, FLANGE (10X70) This part replaces 95800-10070-00.

95801-10070-00

$1.80

31

BOLT, FLANGE (10X70)

95801-10070-00

$1.80

32

BOLT, FLANGE (10X125) This part replaces 95800-10125-00.

95801-10125-00

Unavailable

32

BOLT, FLANGE (10X125)

95801-10125-00

Unavailable
