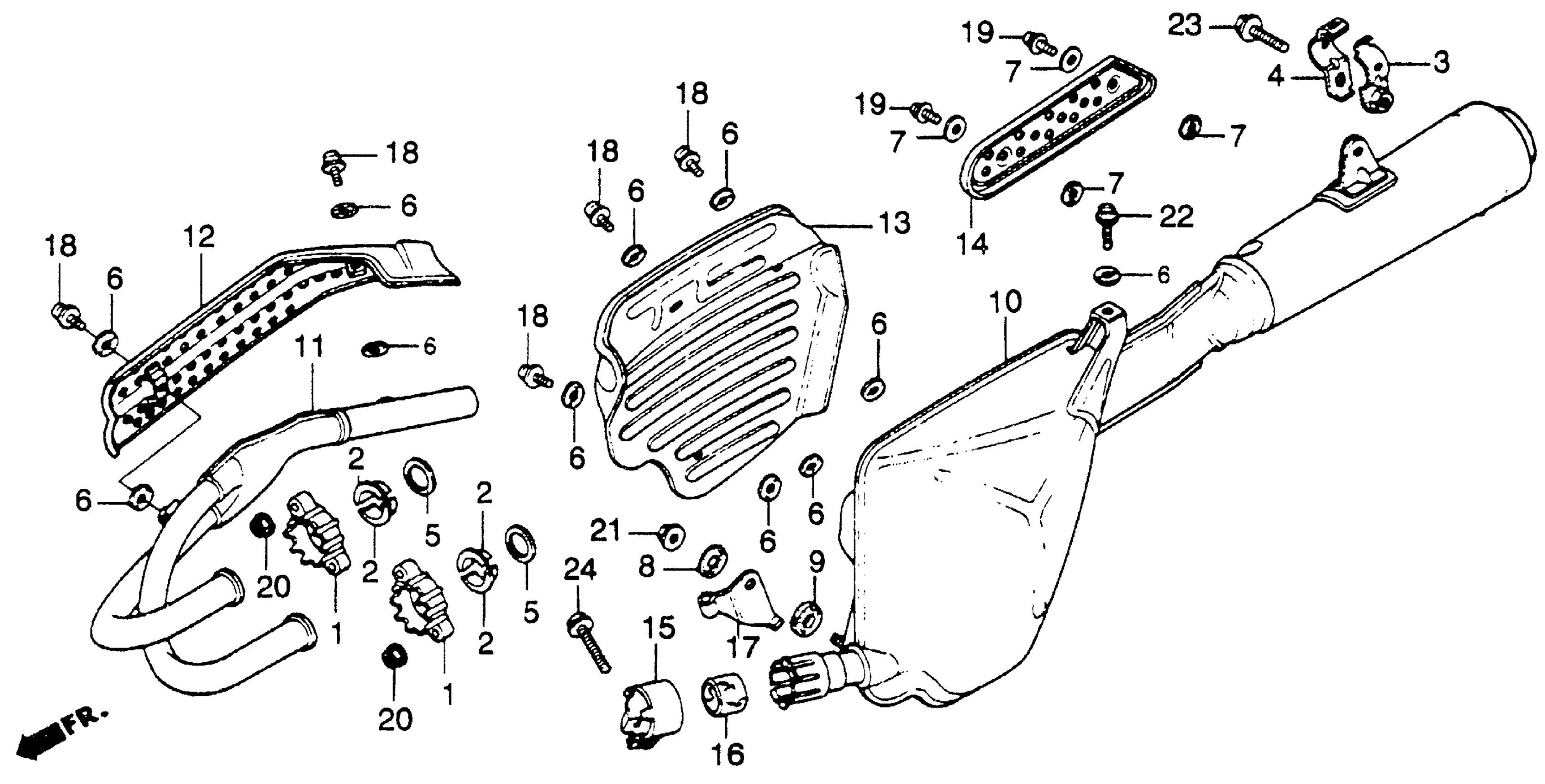

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 MUFFLER 78-81 Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-428-870

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-428-000

Unavailable

3

BAND A, SUB-MUFFLER (NOT AVAILABLE)

18283-428-000

Unavailable

4

BAND B, SUB-MUFFLER

18284-428-000

Unavailable

5

GASKET, EX. PIPE

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

6

GASKET, PROTECTOR

18292-167-890

$1.88

6

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

7

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

7

GASKET, PROTECTOR

18292-MM9-740

$3.03

7

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

8

GASKET A, MUFFLER | Use up to Frame SN 5200020 This part replaces 18292-428-000.

18292-429-405

Unavailable

8

GASKET A, MUFFLER | Use from Frame SN 5200021 This part replaces 18292-429-000.

18292-429-405

Unavailable

9

GASKET B, MUFFLER (NOT AVAILABLE)

18295-428-000

Unavailable

10

MUFFLER, ARRESTER (NOT AVAILABLE) This part replaces 18300-428-770.

18300-428-777

Unavailable

10

MUFFLER, ARRESTER (NOT AVAILABLE)

18300-428-777

Unavailable

11

PIPE, EX. This part replaces 18320-428-000.

18320-428-920

Unavailable

12

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-428-000

Unavailable

13

PROTECTOR, MUFFLER

18345-428-000

Unavailable

14

PROTECTOR B, MUFFLER (NOT AVAILABLE)

18355-428-000

Unavailable

15

BAND, MUFFLER

18371-355-710

Unavailable

15

BAND, MUFFLER This part replaces 18371-428-000.

18371-355-710

Unavailable

16

GASKET, MUFFLER

18391-MB0-891

$17.92

16

GASKET, EX. This part replaces 18391-313-000.

18391-MB0-891

$17.92

17

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50355-428-000

Unavailable

18

SCREW-WASHER (6X10)

93891-06010-00

$1.49

19

SCREW-WASHER (6X12)

93891-06012-00

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

NUT, FLANGE (8MM)

94050-08000

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

23

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

24

BOLT, FLANGE (8X35)

95728-08035-00

Unavailable
