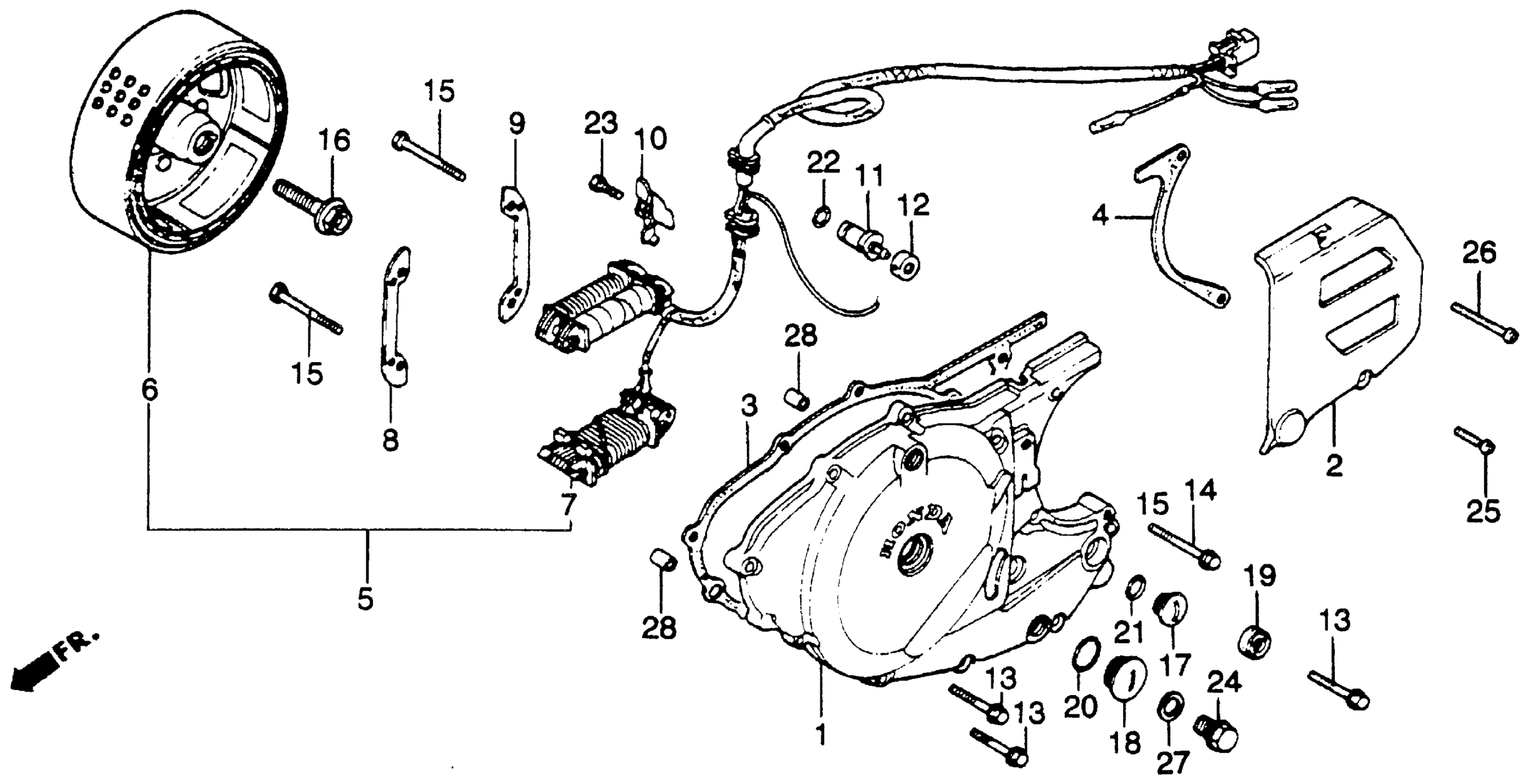

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 LEFT CRANKCASE COVER ALTERNATOR + LEFT 78-81 Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-428-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-428-300

Unavailable

3

GASKET, L. CRANKCASE COVER | Use up to Engine SN 5200940 This part replaces 11395-428-000.

11395-429-306

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-429-000.

11395-429-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-429-306

Unavailable

4

GASKET, R. COVER This part replaces 11396-428-300.

11396-428-306

Unavailable

5

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-428-004

Unavailable

6

FLYWHEEL This part replaces 31110-428-004.

31110-428-681

Unavailable

7

STATOR (NOT AVAILABLE) This part replaces 31120-428-004.

31120-435-004

Unavailable

7

STATOR (NOT AVAILABLE)

31120-435-004

Unavailable

8

PLATE A, COIL SETTING (NOT AVAILABLE)

31125-428-000

Unavailable

9

PLATE B, COIL SETTING (NOT AVAILABLE)

31126-428-000

Unavailable

10

CLAMP, CABLE

32111-428-000

Unavailable

11

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

12

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-300

Unavailable

13

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

13

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

14

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

14

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

15

BOLT, HEX. (6X42) (NOT AVAILABLE)

90012-634-670

Unavailable

16

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

16

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

16

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

17

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

17

CAP, ALTERNATOR

90084-471-000

Unavailable

18

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

19

OIL SEAL (12X25X7)

91201-362-000

$5.55

20

O-RING (27X2.0)

91301-028-000

$2.92

20

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.92

20

O-RING (27X2.0)

91305-KF0-003

$2.92

21

O-RING (13.8X2.5)

91303-MG7-003

$3.12

21

O-RING (13.8X2.5)

91303-377-000

$3.42

21

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

22

O-RING (7X1.7)

91312-107-000

$3.18

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

25

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

25

SCREW, PAN (6X18)

93500-06018-0A

$1.49

26

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

26

SCREW, PAN (6X40)

93500-06040-0A

$1.49

27

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

28

PIN A, DOWEL (10X16)

94301-10160

$2.28
