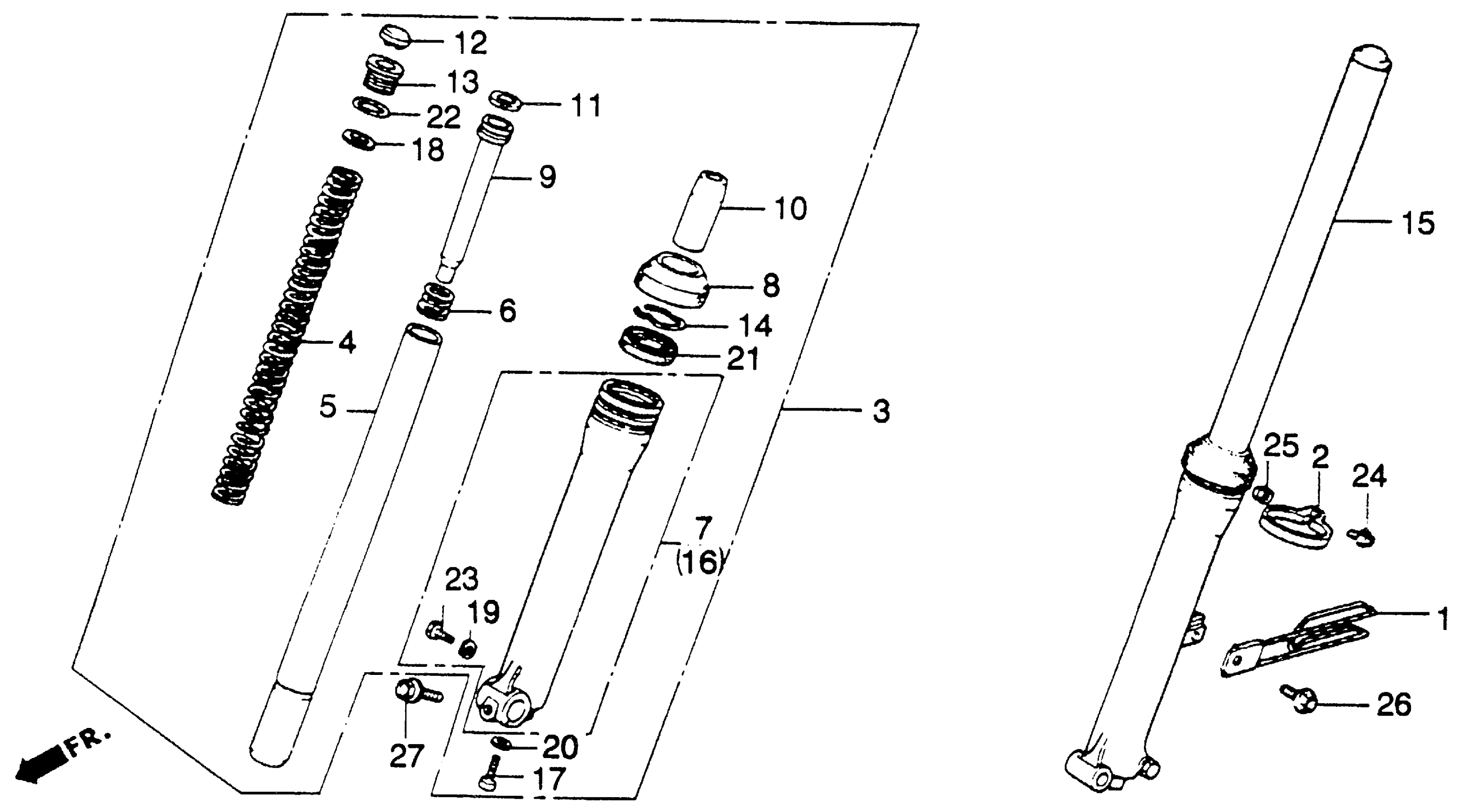

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 FRONT FORK 80-81 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-428-870

Unavailable

2

GUIDE C, BRAKE CABLE (NOT AVAILABLE)

45469-428-000

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use up to Frame SN 5200430 This part replaces 51400-428-872.

51400-428-874

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE) | Use up to Frame SN 5204066 This part replaces 51400-428-873.

51400-428-874

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-428-874

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-428-871

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-428-003

Unavailable

6

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

7

CASE, R. (LOWER) (NOT AVAILABLE) | Use up to Frame SN 5204066

51420-428-671

Unavailable

7

CASE, R. (LOWER) | Use from Frame SN 5204067

51420-428-672

Unavailable

7

CASE, R. (LOWER) (NOT AVAILABLE) | Use up to Frame SN 5200430 This part replaces 51420-428-872.

51420-428-671

Unavailable

8

DUST SEAL, FR. FORK | Use up to Frame SN 5204066 This part replaces 51425-340-000.

91254-435-003

$15.40

8

DUST SEAL, FR. FORK | Use up to Frame SN 5204066

91254-435-003

$15.40

8

DUST SEAL, FR. FORK

91254-435-003

$15.40

9

PIPE, SEAT

51430-428-871

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

11

RING, PISTON

51437-400-771

$6.30

12

CAP, FORK PIPE

51449-428-003

Unavailable

13

BOLT, FR. FORK

51454-422-003

Unavailable

13

BOLT, FR. FORK (NOT AVAILABLE)

51454-428-003

Unavailable

14

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

14

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

15

FORK ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN 5200430 This part replaces 51500-428-872.

51500-428-874

Unavailable

15

FORK ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN 5204066 This part replaces 51500-428-873.

51500-428-874

Unavailable

15

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-428-874

Unavailable

16

CASE, L. (LOWER) (NOT AVAILABLE) | Use up to Frame SN 5204066

51520-428-671

Unavailable

16

CASE, L. (LOWER) (NOT AVAILABLE) | Use from Frame SN 5204067

51520-428-672

Unavailable

16

CASE, L. (LOWER) (NOT AVAILABLE) | Use up to Frame SN 5200430 This part replaces 51520-428-872.

51520-428-671

Unavailable

17

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

17

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

18

WASHER, FR. FORK (NOT AVAILABLE)

90504-425-003

Unavailable

19

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

21

OIL SEAL (35X48X14) OIL SEAL (35X48X11) | Use up to Frame SN 5204066

51495-425-830

Unavailable

21

OIL SEAL (35X48X11) | Use from Frame SN 5204067

91255-KBH-003

$13.24

21

OIL SEAL (35X48X11) | Use from Frame SN 5204067 This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

21

OIL SEAL (35X48X14) | Use up to Frame SN 5204066 This part replaces 91255-341-305.

51495-425-830

Unavailable

21

OIL SEAL (35X48X14) | Use up to Frame SN 5204066 This part replaces 91255-400-771.

51495-425-830

Unavailable

21

OIL SEAL (35X48X11) | Use from Frame SN 5204067 This part replaces 91255-434-013.

91255-KBH-003

$13.24

22

O-RING (25.7X2.8)

91356-428-003

$3.60

23

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

23

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

24

SCREW-WASHER (4X25) (NOT AVAILABLE)

93891-04025-10

Unavailable

25

NUT, FLANGE (4MM)

94050-04000

$1.49

26

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

27

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

27

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
