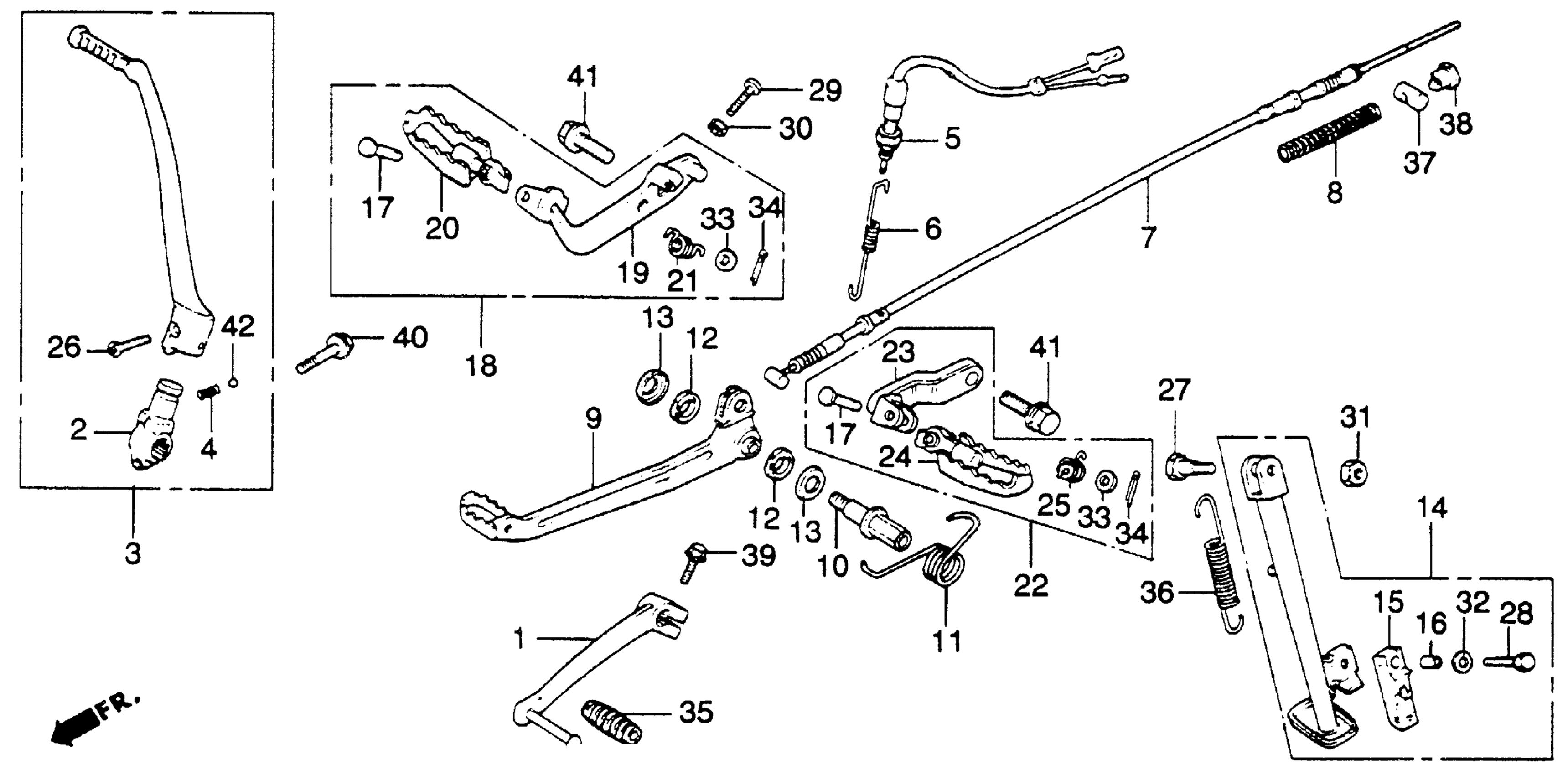

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 FOOTPEGS + GEARSHIFT BRAKE PEDALS + STANDS 78-81 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-428-000

Unavailable

2

JOINT, KICK ARM (NOT AVAILABLE)

28241-428-871

Unavailable

3

ARM, KICK STARTER This part replaces 28300-428-871.

28300-KB7-910

Unavailable

4

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

5

SWITCH ASSY., RR. STOP | Use up to Frame SN 5200940

35350-KJ9-405

$16.97

5

SWITCH ASSY., RR. STOP | Use up to Frame SN 5200940 This part replaces 35350-MC9-830.

35350-KJ9-405

$16.97

5

SWITCH ASSY., RR. STOP | Use up to Frame SN 5200940 This part replaces 35350-149-003.

35350-KJ9-405

$16.97

5

SW ASSY,REAR STOP | Use from Frame SN 5200941 This part replaces 35350-KF9-900.

35350-437-003

Unavailable

5

SW ASSY,REAR STOP | Use from Frame SN 5200941 This part replaces 35350-KF9-901.

35350-437-003

Unavailable

5

SW ASSY,REAR STOP | Use from Frame SN 5200941 This part replaces 35350-437-000.

35350-437-003

Unavailable

5

SW ASSY,REAR STOP | Use from Frame SN 5200941 This part replaces 35350-437-010.

35350-437-003

Unavailable

6

SPRING, STOP SWITCH

35357-MA2-610

Unavailable

6

SPRING, STOP SWITCH This part replaces 35357-428-000.

35357-MA2-610

Unavailable

7

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-428-870

Unavailable

8

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

9

PEDAL, BRAKE (NOT AVAILABLE) This part replaces 46500-428-000.

46500-428-610

Unavailable

9

PEDAL, BRAKE (NOT AVAILABLE)

46500-428-610

Unavailable

10

SHAFT, RR. BRAKE

46515-429-000

$26.56

11

SPRING, BRAKE PEDAL | Use up to Frame SN 5200130 This part replaces 46514-428-000.

46514-428-900

Unavailable

11

SPRING, BRAKE PEDAL This part replaces 46514-429-000.

46514-428-900

Unavailable

12

DUST SEAL, BRAKE PEDAL

46516-430-000

Unavailable

13

WASHER, BRAKE PIVOT (NOT AVAILABLE)

46518-361-000

Unavailable

14

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-428-670

Unavailable

15

RUBBER, STAND

50548-324-760

$12.47

16

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

17

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

17

PIN, STEP BAR JOINT

50603-033-010

$3.30

18

ARM ASSY., R. FOOTPEG (NOT AVAILABLE)

50610-428-000

Unavailable

18

ARM ASSY., R. FOOTPEG (NOT AVAILABLE) This part replaces 50610-429-000.

50610-428-000

Unavailable

19

ARM, R. FOOTPEG (NOT AVAILABLE) This part replaces 50615-429-000.

50615-428-000

Unavailable

20

FOOTPEG, R.

50616-428-000

Unavailable

21

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

21

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

22

ARM ASSY., L. FOOTPEG (NOT AVAILABLE)

50620-428-000

Unavailable

23

ARM, L. FOOTPEG

50624-428-000

Unavailable

24

FOOTPEG, L.

50642-428-000

Unavailable

25

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

25

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

26

BOLT, KICK ARM

90101-329-000

$3.67

27

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

28

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

28

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

29

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (10MM)

94030-10000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

34

PIN, COTTER (1.6X25)

94201-16250

$1.49

35

RUBBER, SHIFT PEDAL

95011-40000

$1.49

36

SPRING, BRAKE PEDAL RETURN SPRING, SIDE STAND | Use up to Frame SN 5200130

95014-72302

Unavailable

36

SPRING, SIDE STAND | Use from Frame SN 5200131 This part replaces 50535-429-000.

50535-KN5-670

$6.54

37

JOINT, BRAKE ARM

95015-32001

$1.49

38

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

39

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

39

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

40

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

40

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

41

BOLT, FLANGE (12X25) This part replaces 95700-12025-00.

95701-12025-00

$2.05

41

BOLT, FLANGE (12X25)

95701-12025-00

$2.05

42

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
