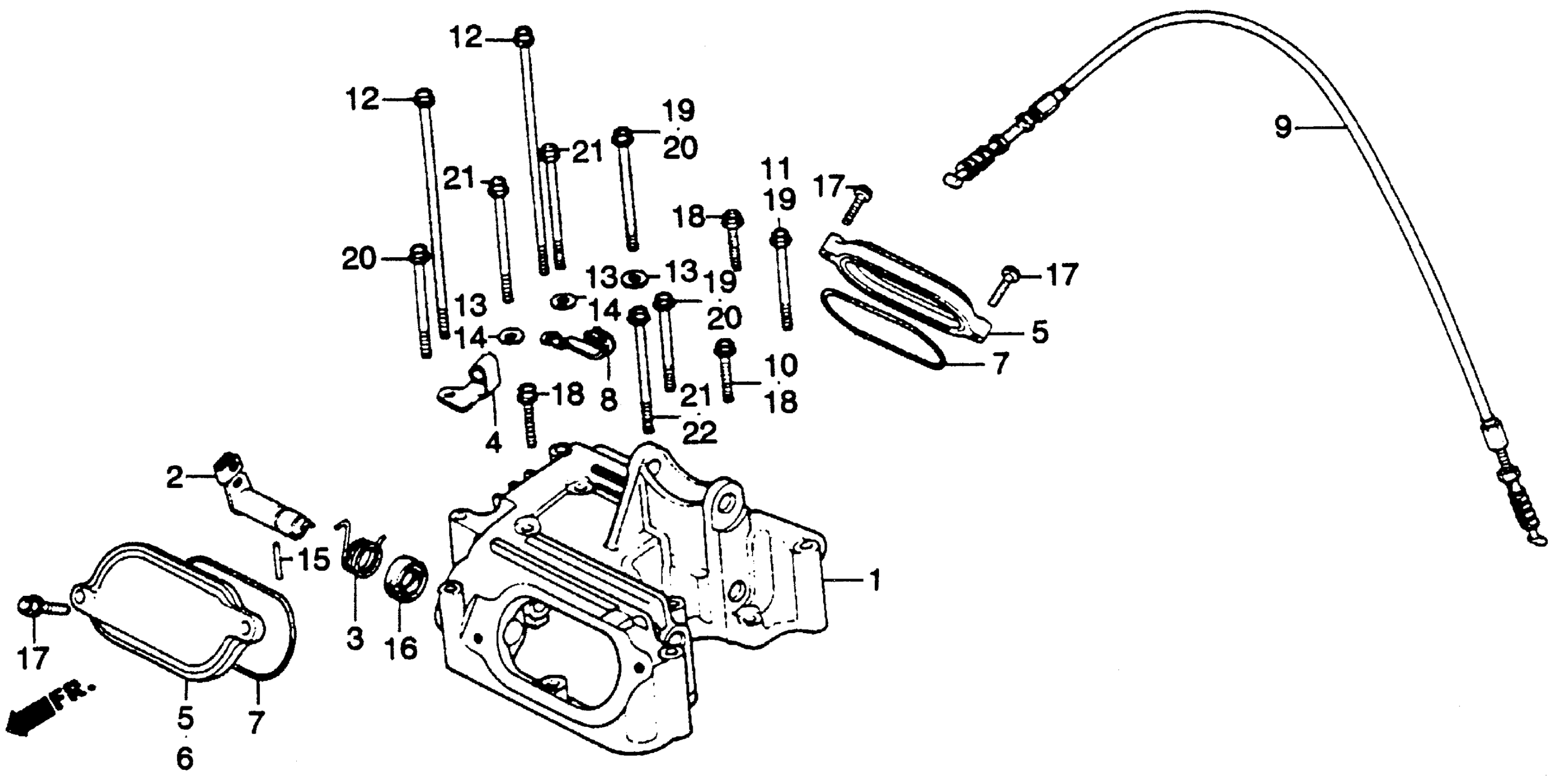

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 CYLINDER HEAD COVER Diagram

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12310-428-305.

12310-428-325

Unavailable

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-428-325

Unavailable

LIFTER, VALVE (NOT AVAILABLE)

12319-428-000

Unavailable

SPRING, VALVE LIFT

12321-428-000

Unavailable

RECEIVER, DECOMPRESSION (NOT AVAILABLE)

12323-428-000

Unavailable

COVER, TAPPET ADJ. HOLE

12351-428-000

$37.87

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.92

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22825-428-000

Unavailable

CABLE, DECOMPRESSION (NOT AVAILABLE)

28291-428-000

Unavailable

BOLT, FLANGE (6X130) This part replaces 90048-329-000.

95701-06130-00

$3.06

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

WASHER, SEALING (6MM)

90442-397-000

$2.28

PIN, DOWEL (5X28)

91101-428-000

$3.83

OIL SEAL (17X27X5) (KOYO) This part replaces 91201-428-005.

91202-HC5-005

$3.56

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

BOLT, FLANGE (6X65) This part replaces 95718-06065-00.

95701-06065-00

$1.51
