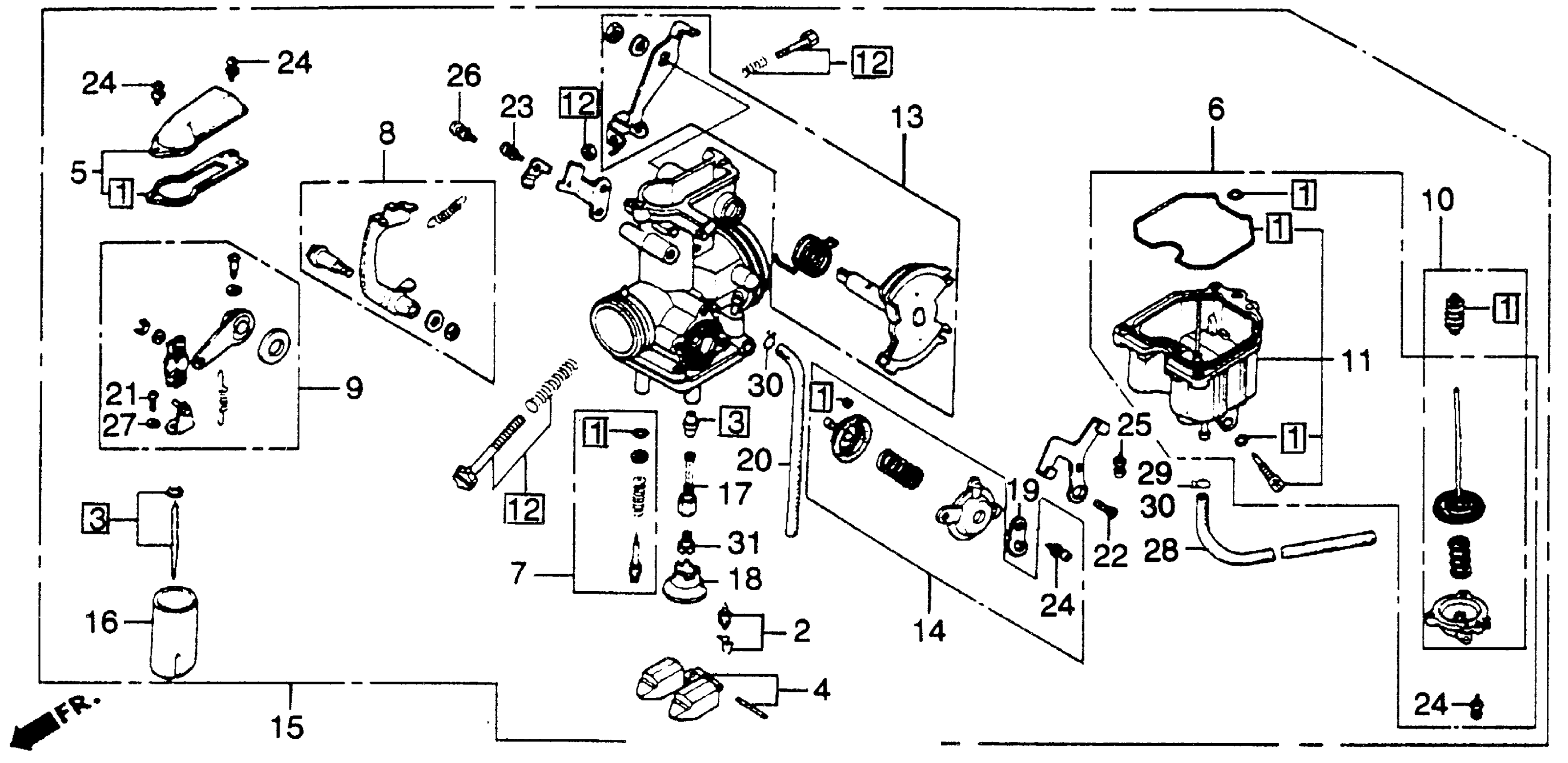

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 CARBURETOR 78-81 Diagram

#

Description
Price

1

GASKET SET

16010-428-671

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-428-771

Unavailable

4

FLOAT SET

16013-KCY-670

$64.31

4

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

5

TOP SET

16014-KCE-771

Unavailable

5

TOP SET This part replaces 16014-KR6-004.

16014-KCE-771

Unavailable

5

TOP SET This part replaces 16014-385-680.

16014-KCE-771

Unavailable

7

SCREW SET A

16016-KC2-970

$25.35

7

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

9

ARM SET, LINK

16018-428-671

$117.16

10

PUMP SET, DIAPHRAGM This part replaces 16021-KW3-004.

16021-KW3-671

Unavailable

10

PUMP SET, DIAPHRAGM

16021-KW3-671

Unavailable

10

PUMP SET, DIAPHRAGM This part replaces 16021-428-771.

16021-KW3-671

Unavailable

11

CHAMBER SET, FLOAT

16015-428-771

Unavailable

11

CHAMBER SET, FLOAT This part replaces 16023-426-003.

16015-428-771

Unavailable

12

SCREW SET B (NOT AVAILABLE) | Use up to Engine SN PD10A B

16028-428-671

Unavailable

12

SCREW SET B (NOT AVAILABLE) | Use from Engine SN PD10A C

16028-428-771

Unavailable

13

LINK SET, THROTTLE (NOT AVAILABLE)

16032-428-671

Unavailable

14

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

15

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 5202034

16100-428-771

Unavailable

15

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 5202035 to 5204883 This part replaces 16100-428-772.

16100-428-774

Unavailable

15

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 5202035 This part replaces 16100-428-773.

16100-428-774

Unavailable

15

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 5202035

16100-428-774

Unavailable

16

VALVE, THROTTLE This part replaces 16111-428-671.

16111-471-004

Unavailable

16

VALVE, THROTTLE

16111-471-004

Unavailable

17

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-428-771

Unavailable

18

HOLDER, JET

16168-382-014

$9.81

20

TUBE, OVERFLOW (NOT AVAILABLE)

16199-428-771

Unavailable

21

SCREW, PAN (3X8)

93500-03008-0H

$1.49

22

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

23

SCREW-WASHER (4X8)

93892-04008-08

$1.49

24

SCREW-WASHER (4X12)

93892-04012-08

$1.49

25

SCREW-WASHER (4X16)

93892-04016-08

$1.49

26

SCREW-WASHER (5X10)

93892-05010-08

$1.49

27

WASHER, SPRING (3MM)

94111-03800

$1.49

28

TUBE, FUEL This part replaces 16143-413-751.

16199-KG4-405

$9.49

30

CLIP, TUBE (B7) | Use from Engine SN PD10A B

95002-02070

$1.80

30

CLIP, TUBE (B6.5) | Use up to Engine SN PD10A A

95002-02650

$1.49

31

JET SET, MAIN (#110) | (Optional).

16110-428-770

Unavailable

31

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.77

31

JET, MAIN (#115)

99101-MAZ-1150

$8.77

31

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.77
