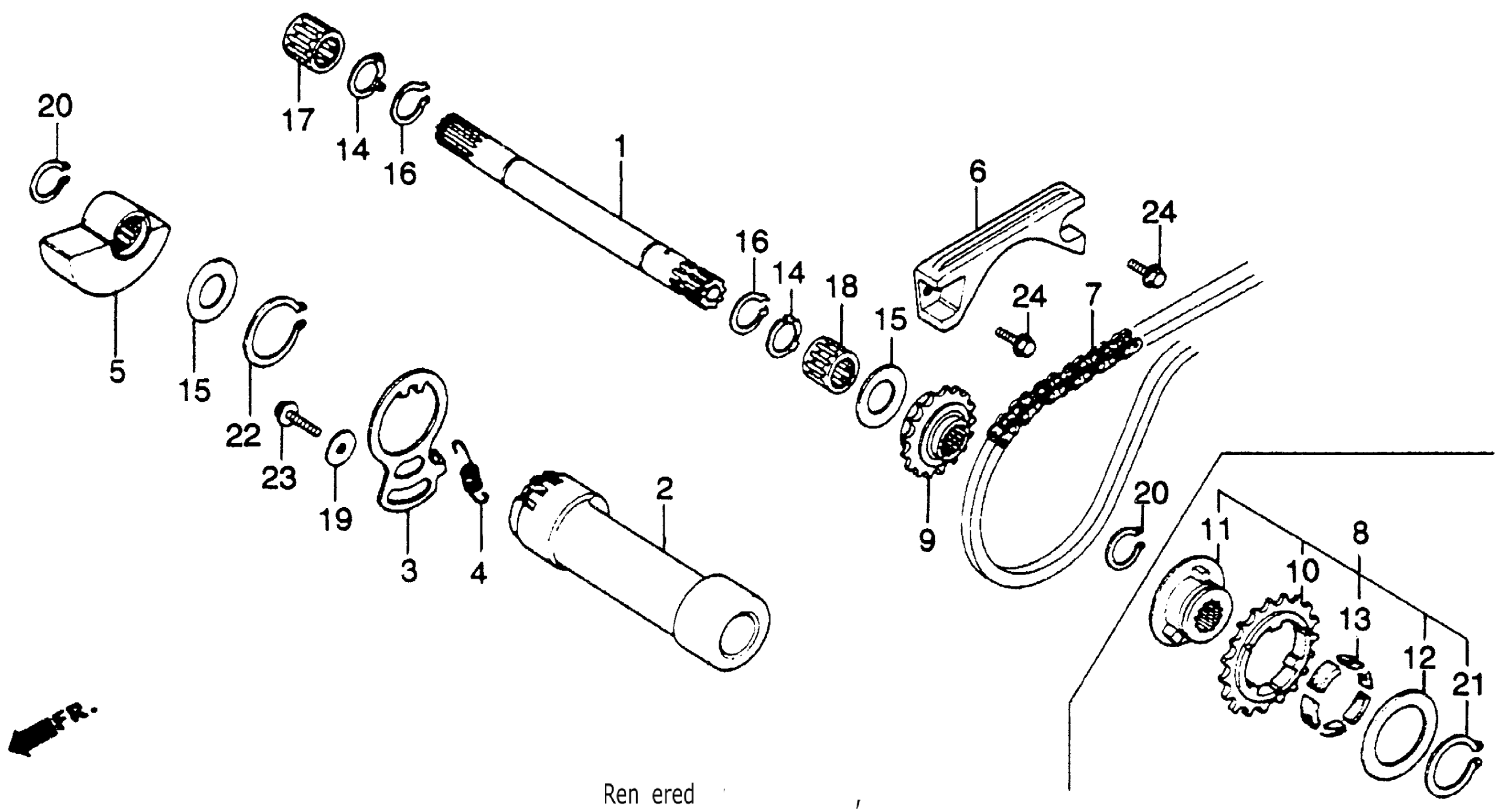

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 BALANCER 78-81 Diagram

#

Description
Price

1

SHAFT, BALANCER | Use up to Engine SN 5200130

13411-428-000

Unavailable

1

SHAFT, BALANCER (NOT AVAILABLE) | Use from Engine SN 5200131 This part replaces 13411-429-000.

13411-471-000

Unavailable

2

HOLDER, BALANCER SHAFT (NOT AVAILABLE)

13412-428-020

Unavailable

3

FLANGE, BALANCER HOLDER (NOT AVAILABLE)

13413-428-020

Unavailable

4

SPRING, CHAIN ADJUSTING (NOT AVAILABLE)

13414-428-000

Unavailable

5

WEIGHT, FR. BALANCER (NOT AVAILABLE)

13421-428-000

Unavailable

6

SLIPPER, BALANCER CHAIN (NOT AVAILABLE)

13430-428-000

Unavailable

7

CHAIN, BALANCER (NOT AVAILABLE)

13440-428-003

Unavailable

9

SPROCKET, FR. BALANCER (NOT AVAILABLE) This part replaces 13610-428-010.

13610-471-000

Unavailable

9

SPROCKET, FR. BALANCER (NOT AVAILABLE)

13610-471-000

Unavailable

14

WASHER, SPECIAL (20MM)

90456-428-000

Unavailable

15

WASHER, THRUST (20MM)

90458-292-000

$3.54

16

SET-RING (20MM)

90605-200-000

$2.92

17

BEARING, NEEDLE (20X26X20)

91011-P48-008

Unavailable

17

BEARING, NEEDLE (20X26X20) This part replaces 91011-428-008.

91011-P48-008

Unavailable

18

BEARING, NEEDLE (20X26X17) (TOYO) This part replaces 91012-428-008.

91012-471-008

Unavailable

18

BEARING, NEEDLE (20X26X17) (TOYO)

91012-471-008

Unavailable

19

WASHER, SPECIAL (22X8.5X2) (NOT AVAILABLE)

90436-611-000

Unavailable

20

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

22

CIRCLIP (OUTER) (38MM)

94510-38000

$2.28

23

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

23

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

24

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

24

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
