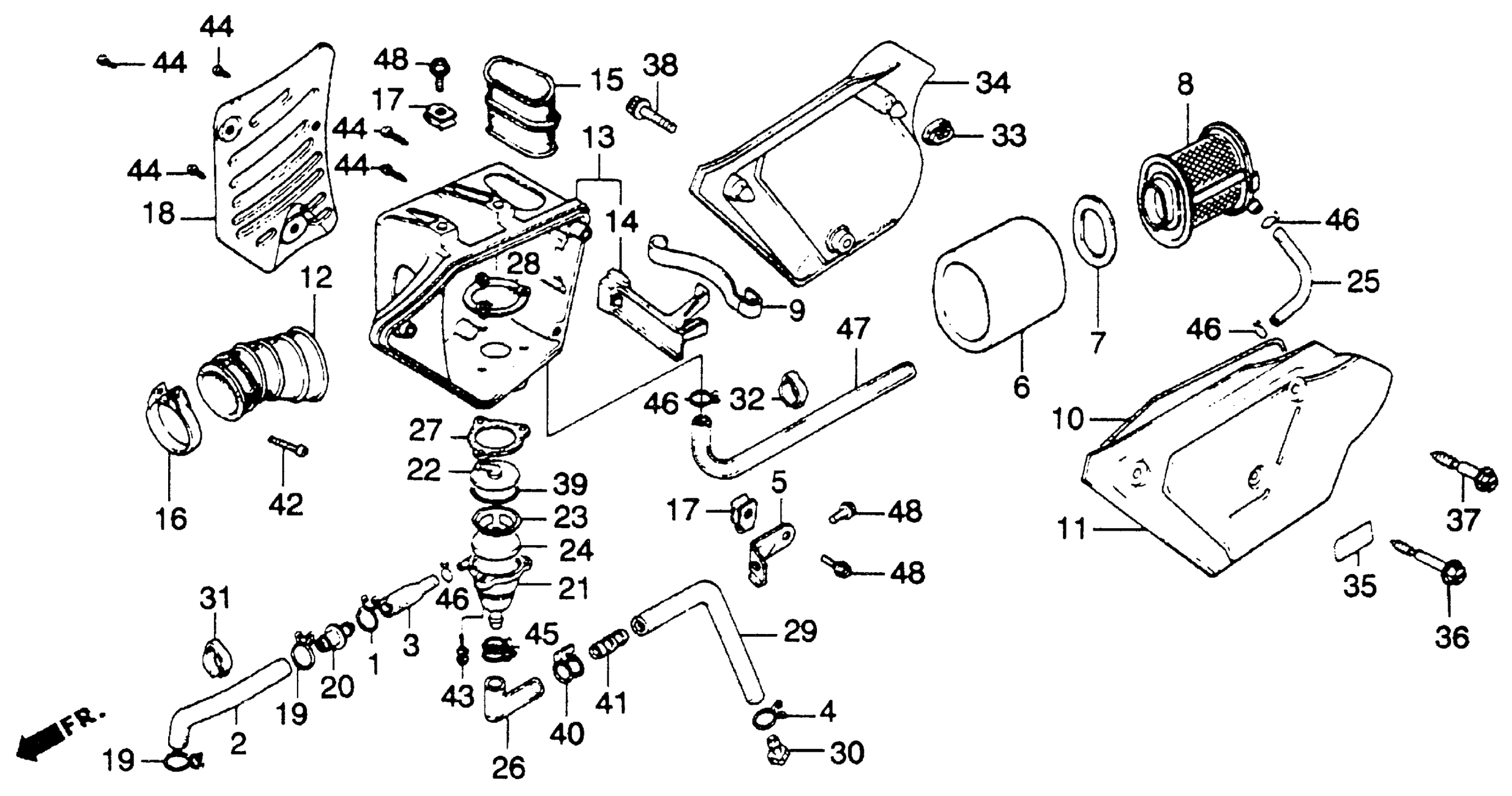

Honda XL250SA (80) MOTORCYCLE, JPN, VIN# MD01-5200001 TO MD01-5207793 AIR CLEANER 80-81 Diagram

#

Description
Price

1

CLIP, OIL DRAIN

15707-634-000

$5.13

2

TUBE A, BREATHER (NOT AVAILABLE)

15761-428-670

Unavailable

3

TUBE B, BREATHER (NOT AVAILABLE)

15762-428-670

Unavailable

4

CLIP, BREATHER TUBE

15772-292-010

$2.92

5

STAY, AIR CLEANER (NOT AVAILABLE)

17201-428-000

Unavailable

6

ELEMENT, AIR CLEANER

17211-428-000

$14.08

7

RUBBER, ELEMENT SEAL

17213-428-300

Unavailable

8

HOLDER, ELEMENT (NOT AVAILABLE)

17214-428-000

Unavailable

9

SPRING, ELEMENT

17217-385-000

Unavailable

10

SEAL, AIR CLEANER COVER

17219-413-000

$5.60

11

COVER, AIR CLEANER HOUSING *R33* (WOL) (HELIOS RED) (NOT AVAILABLE)

17220-428-870ZA

Unavailable

12

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-428-000

Unavailable

13

HOUSING, AIR CLEANER

17230-428-000

Unavailable

14

HOLDER, SET SPRING (NOT AVAILABLE)

17231-428-300

Unavailable

15

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17240-428-000

Unavailable

16

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17252-428-000.

95018-52250

$5.14

16

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 90652-GHB-690.

95018-52250

$5.14

16

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$5.14

17

NUT, AIR CLEANER SETTING

17254-428-000

Unavailable

18

PROTECTOR, AIR CLEANER (NOT AVAILABLE)

17260-428-000

Unavailable

19

CLIP, BREATHER TUBE

17316-611-000

$9.23

20

JOINT, BREATHER TUBE

17359-428-000

$5.46

21

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

22

CAP, BREATHER SEPARATOR

17362-419-670

Unavailable

23

HOLDER, ELEMENT

17363-419-670

Unavailable

24

ELEMENT, CONDENSATION

17364-419-000

Unavailable

25

TUBE, BREATHER JOINT (NOT AVAILABLE)

17365-428-670

Unavailable

26

TUBE A, DRAIN

17366-428-670

$8.39

27

RUBBER, BREATHER SEAL (NOT AVAILABLE)

17367-428-000

Unavailable

28

PLATE, SEPARATE BACK (NOT AVAILABLE)

17368-428-000

Unavailable

29

TUBE B, DRAIN (NOT AVAILABLE)

17369-428-670

Unavailable

30

PLUG, BREATHER TUBE

17370-382-870

$3.74

31

CLIP, PULSER CABLE (NOT AVAILABLE)

32975-428-000

Unavailable

32

CLIP, CABLE

32976-428-000

Unavailable

33

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

34

COVER, R. SIDE *R33* (WOL) (HELIOS RED) (NOT AVAILABLE)

83600-428-870ZA

Unavailable

35

LABEL, AIR CLEANER CAUTION (NOT AVAILABLE)

87507-435-670

Unavailable

36

BOLT A, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

90112-434-000

Unavailable

37

BOLT C, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

90113-434-000

Unavailable

38

BOLT B, AIR CLEANER HOUSING (NOT AVAILABLE)

90114-429-000

Unavailable

39

O-RING (47X1.9)

91305-419-670

Unavailable

40

CLIP, TUBE (NOT AVAILABLE)

91462-393-780

Unavailable

41

JOINT, TUBE

91463-393-780

$1.80

42

SCREW, PAN (5X25)

93500-05025-0G

$1.49

43

SCREW-WASHER (4X20)

93891-04020-08

$1.49

44

SCREW, TAPPING (4X20)

93901-34520

$1.49

45

CLIP, TUBE (A16)

95002-01160

$4.05

46

CLIP, TUBE (B12.5)

95002-02130

$1.49

47

TUBE, VINYL (8X12X3000) (8X12X380)

95003-23003-10M

$14.69

48

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

48

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
