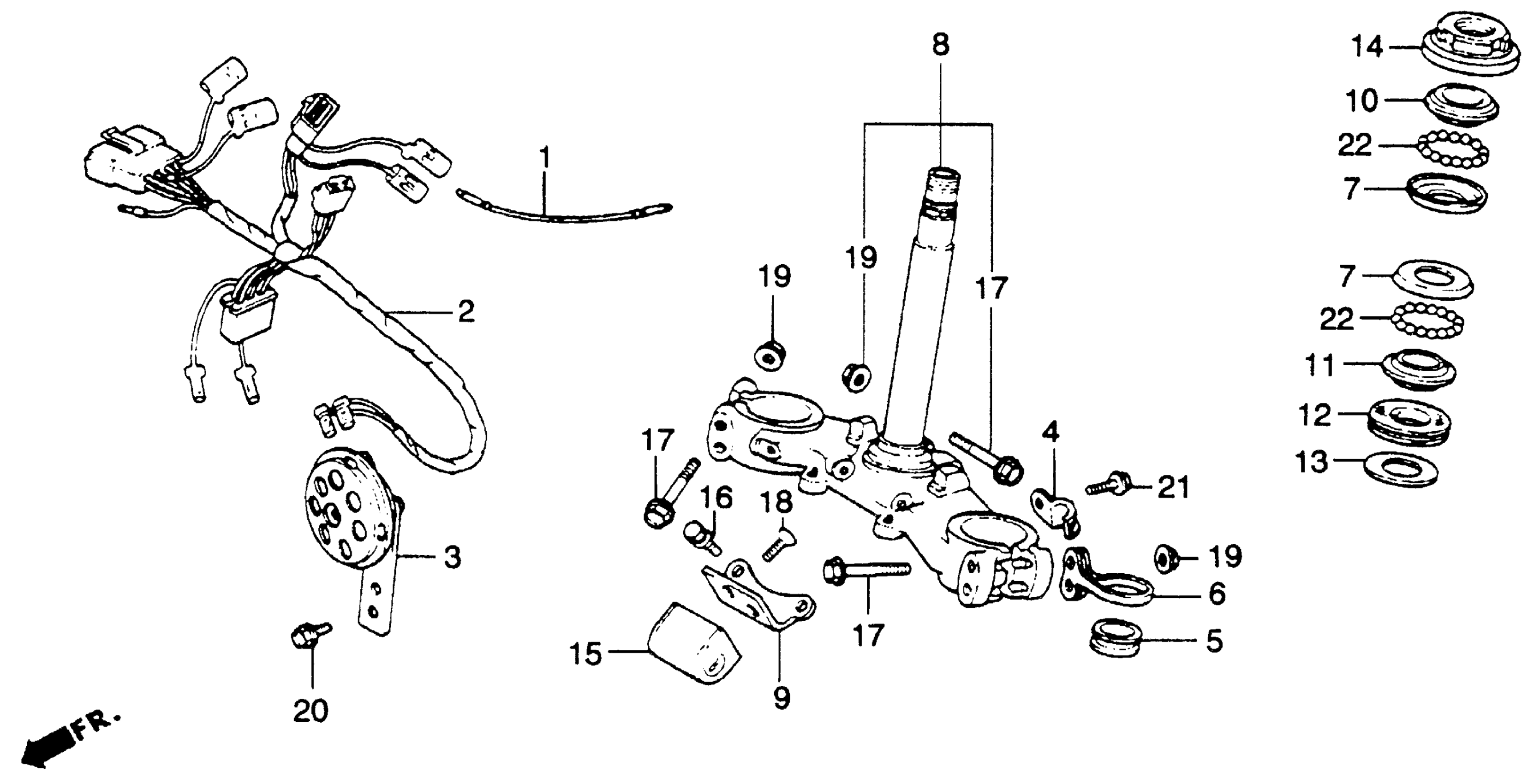

Honda XL250SA (79) MOTORCYCLE, JPN, VIN# L250S-5100007 TO L250S-5108504 STEERING STEM 78-79 Diagram

#

Description
Price

1

CABLE A, SUB (NOT AVAILABLE)

32101-385-000

Unavailable

2

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-428-010

Unavailable

3

HORN (NOT AVAILABLE) This part replaces 38110-428-004.

38110-428-900

Unavailable

3

HORN (NOT AVAILABLE) This part replaces 38110-428-870.

38110-428-900

Unavailable

3

HORN (NOT AVAILABLE)

38110-428-900

Unavailable

4

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

45465-428-000

Unavailable

5

GUIDE, CABLE (INNER)

45466-329-000

$2.80

6

GUIDE B, BRAKE CABLE (NOT AVAILABLE)

45468-428-000

Unavailable

7

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

7

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

8

STEM, STEERING (NOT AVAILABLE)

53200-428-000

Unavailable

9

HOLDER, LOCK (NOT AVAILABLE)

53203-428-000

Unavailable

10

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

10

RACE, STEERING CONE (UPPER)

53211-268-010

$23.45

11

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$17.77

11

RACE, STEERING CONE (LOWER)

53212-200-305

$17.77

12

DUST SEAL, STEERING HEAD

53214-200-000

$2.80

13

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.61

14

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

15

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$43.61

15

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$43.61

16

BOLT B, SPECIAL (6MM) This part replaces 90106-428-000.

90107-195-860

Unavailable

16

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

16

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

17

BOLT, FLANGE (8X57) (NOT AVAILABLE)

90125-428-000

Unavailable

18

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

19

NUT, FLANGE (8MM) This part replaces 90303-369-000.

94050-08020

$1.83

19

NUT, FLANGE (8MM)

94050-08020

$1.83

20

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.14

20

BOLT, FLANGE (6X10)

95701-06010-00

$1.14

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

22

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
