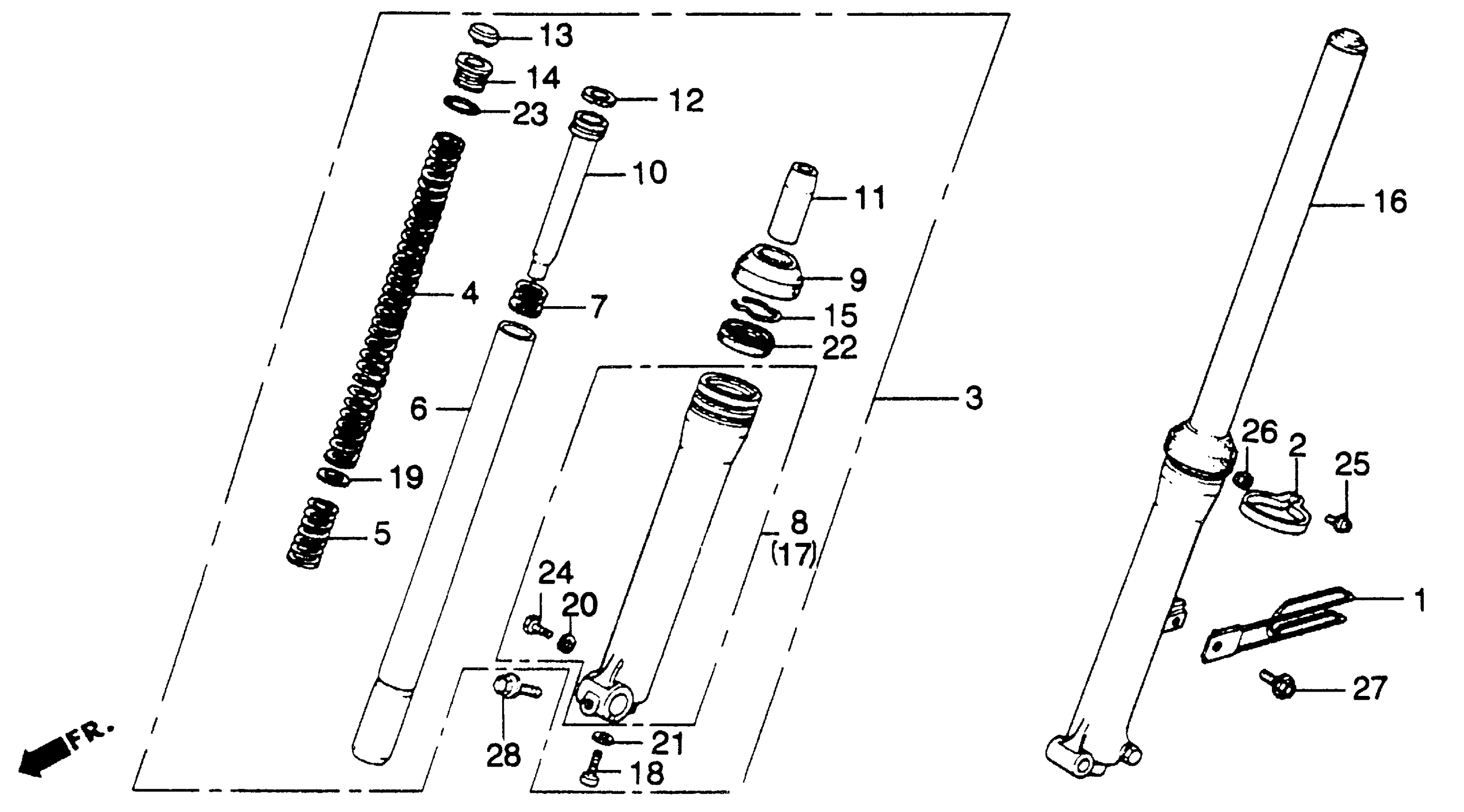

Honda XL250SA (79) MOTORCYCLE, JPN, VIN# L250S-5100007 TO L250S-5108504 FRONT FORK 78-79 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-428-000

Unavailable

2

GUIDE C, BRAKE CABLE (NOT AVAILABLE)

45469-428-000

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-428-671

Unavailable

4

SPRING A, FR. FORK (NOT AVAILABLE)

51401-428-003

Unavailable

5

SPRING B, FR. FORK (NOT AVAILABLE)

51402-428-003

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-428-003

Unavailable

7

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

8

CASE, R. (LOWER) (NOT AVAILABLE)

51420-428-671

Unavailable

9

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

9

DUST SEAL, FR. FORK

91254-435-003

$15.40

10

PIPE (LOWER) (NOT AVAILABLE)

51430-428-003

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

12

RING, PISTON

51437-400-771

$6.30

13

CAP, FORK PIPE

51449-428-003

Unavailable

14

BOLT, FR. FORK

51454-422-003

Unavailable

14

BOLT, FR. FORK (NOT AVAILABLE)

51454-428-003

Unavailable

15

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

15

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

16

FORK ASSY., L. FR.

51500-428-671

Unavailable

17

CASE, L. (LOWER) (NOT AVAILABLE)

51520-428-671

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

19

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

20

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

OIL SEAL (35X48X14)

51495-425-830

Unavailable

22

OIL SEAL (35X48X14) This part replaces 91255-341-305.

51495-425-830

Unavailable

22

OIL SEAL (35X48X14) This part replaces 91255-400-771.

51495-425-830

Unavailable

23

O-RING (25.7X2.8)

91356-428-003

$3.60

24

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

25

SCREW-WASHER (4X25) (NOT AVAILABLE)

93891-04025-10

Unavailable

26

NUT, FLANGE (4MM)

94050-04000

$1.49

27

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

27

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

28

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

28

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
