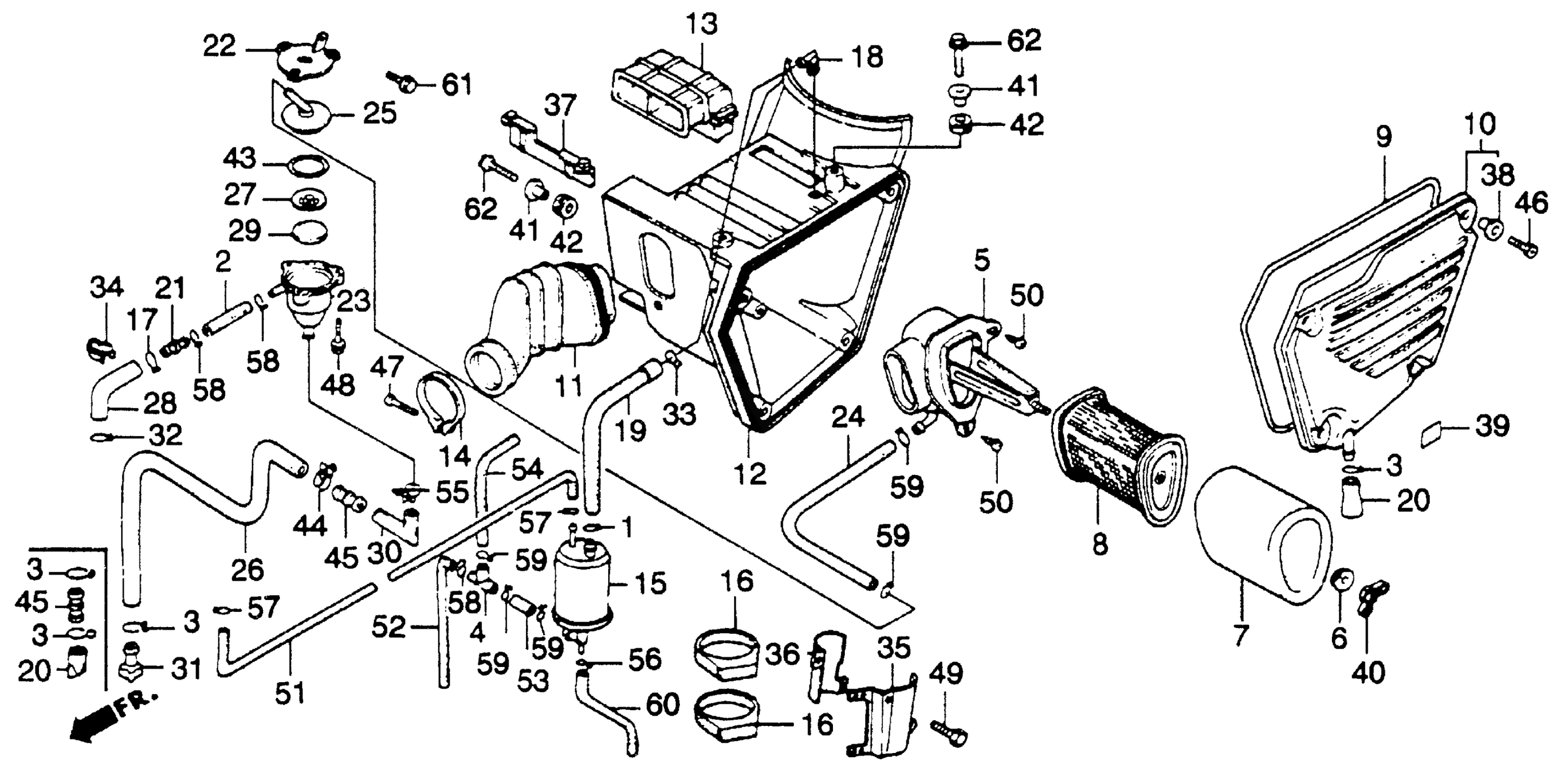

Honda XL250RAC (83) MOTORCYCLE, JPN, VIN# JH2MD031-DM100001 TO JH2MD031-DM100686 AIR CLEANER 82-83 Diagram

CLIP, OIL DRAIN

15707-634-000

$5.13

TUBE B, BREATHER (NOT AVAILABLE)

15762-428-670

Unavailable

CLIP, BREATHER TUBE

15772-292-010

$2.92

JOINT, THREE-WAY

17208-657-670

Unavailable

STAY, ELEMENT SETTING (NOT AVAILABLE)

17212-KB7-000

Unavailable

WASHER, AIR CLEANER This part replaces 17212-PA0-000.

17212-PC0-000

Unavailable

WASHER, AIR CLEANER

17212-PC0-000

Unavailable

ELEMENT A, AIR CLEANER

17213-KB7-000

$12.37

HOLDER, ELEMENT (NOT AVAILABLE)

17214-KB7-000

Unavailable

SEAL, AIR CLEANER COVER This part replaces 17219-KB7-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

COVER, AIR CLEANER HOUSING

17220-KB7-000

Unavailable

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-KB7-000

Unavailable

HOUSING, AIR CLEANER

17230-KB7-870

Unavailable

DUCT, AIR IN.

17240-KB7-000

$36.26

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17252-428-000.

95018-52250

$5.14

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 90652-GHB-690.

95018-52250

$5.14

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$5.14

CANISTER ASSY.

17300-KB7-871

Unavailable

RUBBER, CANISTER MOUNTING

17301-KB7-870

Unavailable

CLIP, BREATHER TUBE

17316-611-000

$9.23

JOINT, TUBE (NOT AVAILABLE)

17357-KB7-870

Unavailable

TUBE A, CANISTER

17358-KB7-870

Unavailable

TUBE, DRAIN

17358-170-000

$3.74

JOINT, BREATHER TUBE

17359-428-000

$5.46

STAY, BREATHER

17361-KB7-870

Unavailable

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

TUBE, BREATHER (NOT AVAILABLE)

17362-KB7-000

Unavailable

CAP, BREATHER SEPARATOR

17362-419-670

Unavailable

TUBE, DRAIN (NOT AVAILABLE)

17363-KB7-000

Unavailable

HOLDER, ELEMENT

17363-419-670

Unavailable

TUBE A, BREATHER (NOT AVAILABLE)

17364-KB7-000

Unavailable

ELEMENT, CONDENSATION

17364-419-000

Unavailable

TUBE A, DRAIN

17366-428-670

$8.39

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

CLIP, AIR HOSE (16)

18534-634-670

$5.76

CLIP, PULSER CABLE (NOT AVAILABLE)

32975-428-000

Unavailable

STAY, CANISTER

50162-KB7-870

Unavailable

BAND, CANISTER

50163-KB7-870

Unavailable

RUBBER, BAFFLE (NOT AVAILABLE)

50371-KB7-000

Unavailable

COLLAR, COVER SETTING

83601-357-000

$5.56

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

WINGNUT, TOOL BOX SETTING

90325-044-000

$3.51

COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)

90501-MC4-000

$3.67

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

O-RING (47X1.9)

91305-419-670

Unavailable

CLIP, TUBE (NOT AVAILABLE)

91462-393-780

Unavailable

JOINT, TUBE

91463-393-780

$1.80

BOLT, RECESSED (6X16) This part replaces 92300-06016-0A.

92301-06016-0A

$1.64

BOLT, RECESSED (6X16)

92301-06016-0A

$1.64

SCREW, PAN (5X25)

93500-05025-0G

$1.49

SCREW-WASHER (4X16)

93891-04016-00

Unavailable

SCREW-WASHER (5X12)

93891-05012-00

$1.49

SCREW, TAPPING (6X16)

93903-36220

$1.49

BULK HOSE (3.5X3000) This part replaces 95001-35003-20M.

95001-35003-50M

Unavailable

BULK HOSE, FUEL (5.5X3000) (5.5X600)

95001-55003-60M

$47.32

BULK HOSE, FUEL (8X1000) (8X90)

95001-80001-60M

$23.91

BULK HOSE, FUEL (8X1000) (8X450)

95001-80001-60M

$23.91

CLIP, TUBE (A16)

95002-01160

$4.05

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (B12.5)

95002-02130

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X400)

95005-35001-30M

$8.63

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
