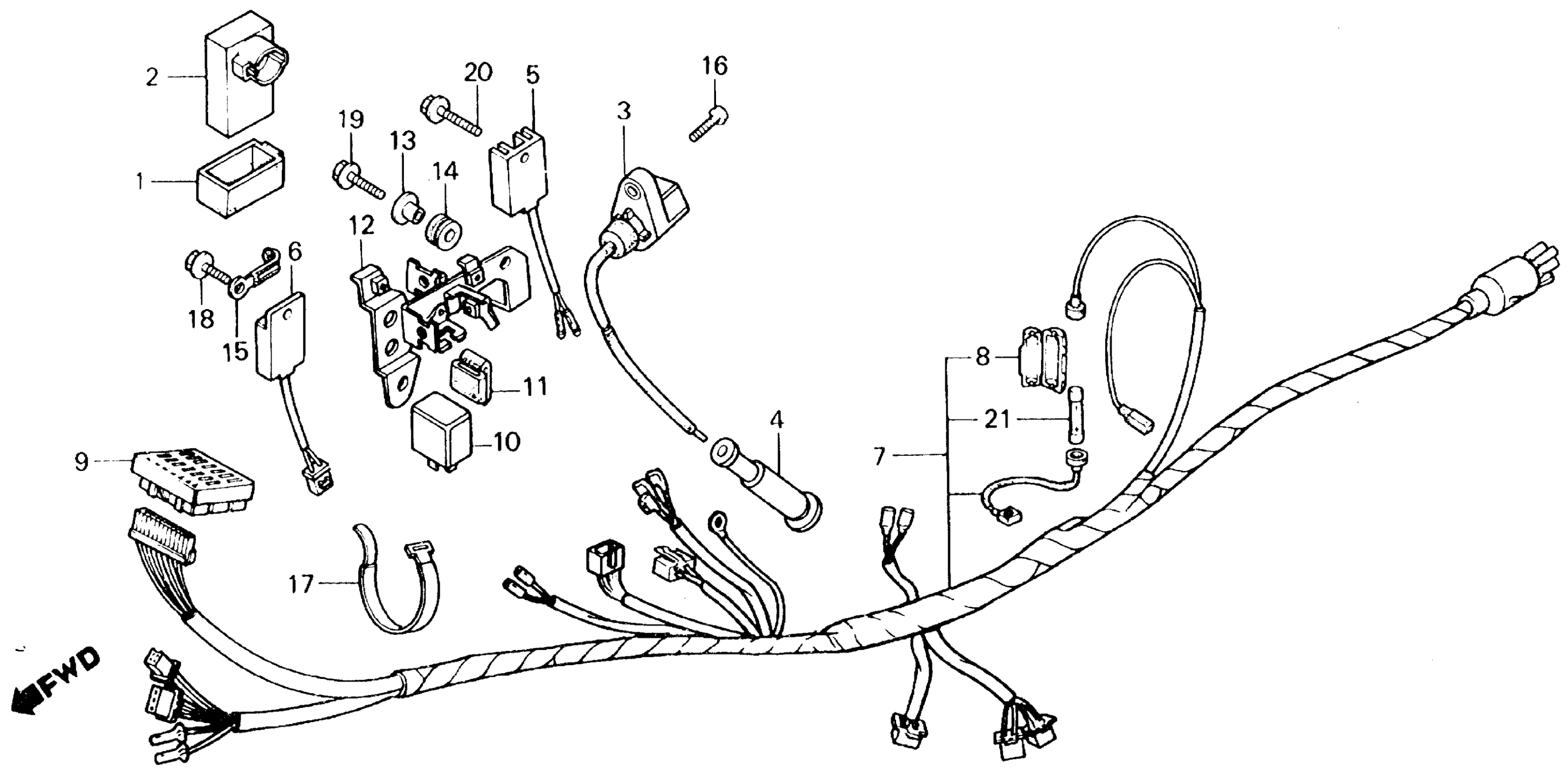

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER, IGNITION CONTROL MODULE

30401-VM0-000

$4.22

2

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-KK0-772.

30410-KK0-773

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30410-KK0-773

Unavailable

3

COIL, IGNITION

30510-GR2-405

$74.70

3

COIL, IGNITION This part replaces 30510-KG0-003.

30510-GR2-405

$74.70

4

CAP ASSY. This part replaces 30700-KF0-153.

30700-MK4-612

$18.93

4

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$18.93

4

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$18.93

5

REGULATOR, A.C. (SHINDENGEN)

31410-HA5-671

Unavailable

6

RECTIFIER, REGULATOR (NOT AVAILABLE)

31600-KG0-000

Unavailable

7

WIRE HARNESS

32100-KT4-670

Unavailable

8

CASE, FUSE CONNECTOR

32111-230-000

$4.28

9

MULTI-CONNECTOR (10X3)

32150-MG2-003

Unavailable

10

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

11

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

11

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-GE7-008.

38306-GE7-000

$4.74

12

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50301-KR6-000

Unavailable

13

COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)

90501-MC4-000

$3.67

14

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

15

CLIP (2X70)

91413-679-000

$9.23

16

SCREW, PAN (5X20)

93500-05020-0A

$1.49

17

BAND B3, CABLE HARNESS

95014-62300

$2.25

18

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

18

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

19

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

19

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

20

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

20

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

21

FUSE A (10A)

98200-11000

$1.80
