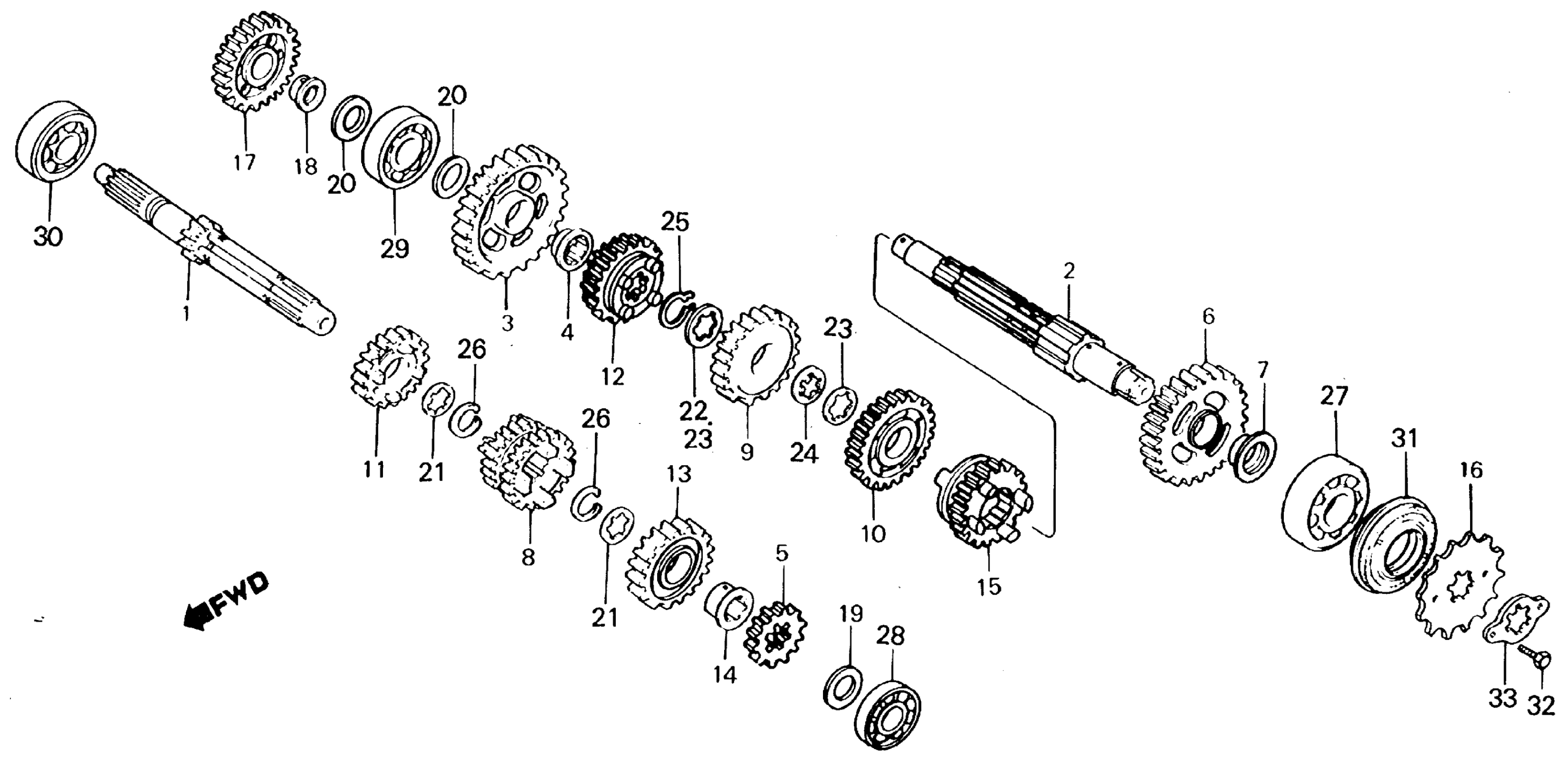

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23210-KR0-010.

23210-KR0-020

Unavailable

1

MAINSHAFT, TRANSMISSION (13T)

23210-KR0-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 5300532

23220-KS5-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 5300531 This part replaces 23220-KT1-000.

23220-KS5-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23411-KK1-000

Unavailable

4

BUSH (18MM)

23412-KK0-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23421-KK0-770

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23431-KK1-000

Unavailable

7

COLLAR (22MM)

23432-KK0-000

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (23T/20T)

23441-KL4-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (29T)

23451-KL4-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T) This part replaces 23471-KL4-000.

23471-KL4-010

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T)

23471-KL4-010

Unavailable

11

GEAR, MAINSHAFT FIFTH (26T)

23481-KL4-000

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (24T)

23491-KL4-000

Unavailable

13

GEAR, MAINSHAFT SIXTH (28T)

23501-KL4-770

Unavailable

14

COLLAR, SPLINE (23MM)

23505-KL4-000

Unavailable

15

GEAR, COUNTERSHAFT SIXTH (22T)

23511-KL4-770

Unavailable

16

SPROCKET, DRIVE (13T)

23801-KK1-000

Unavailable

17

GEAR, KICK STARTER IDLE (27T)

28200-KL4-308

Unavailable

17

GEAR, KICK STARTER IDLE (27T) This part replaces 28211-KK0-000.

28200-KL4-308

Unavailable

17

GEAR, KICK STARTER IDLE (27T) This part replaces 28221-KK0-000.

28200-KL4-308

Unavailable

18

BUSH (15MM)

28222-KK0-000

$34.48

19

WASHER, THRUST (15MM)

90451-107-000

$1.49

20

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

21

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

23

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.87

24

WASHER, LOCK

90465-KK0-000

Unavailable

25

CIRCLIP (OUTER) (22MM)

90601-437-000

$3.20

26

SET-RING (20MM)

90605-200-000

$2.92

27

BEARING, BALL (62/22) (KOYO) This part replaces 91004-KK0-003.

91004-KW3-004

$31.42

27

BEARING, BALL (62/22) (KOYO)

91004-KW3-004

$31.42

28

BEARING, BALL (6202) (TOYO)

91005-KK0-003

$37.11

29

BEARING, RADIAL BALL (17X42X12) (NTN CORP.)

91007-KK0-000

$27.33

30

BEARING, BALL (6204) (TOYO)

91006-KK0-003

$25.94

31

OIL SEAL (20X36X8) (NOK)

91201-KK1-641

$7.20

32

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

33

PLATE B, FIXING

95014-92100

$1.49
