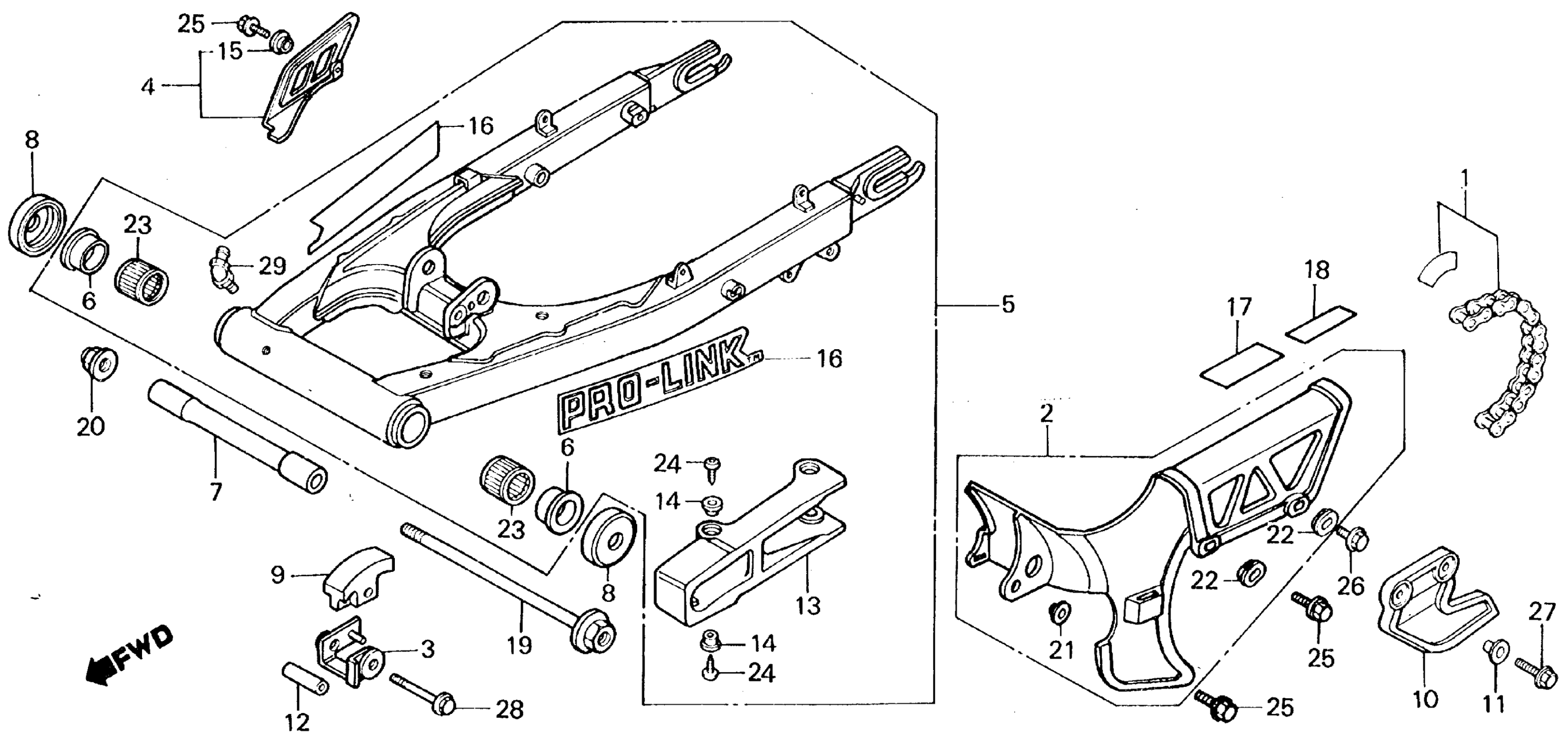

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (520SO-102LE) (TAKASAGO) This part replaces 405A3-KL4-700.

405A3-MG2-890

Unavailable

1

CHAIN SET, DRIVE (520SO-102LE) (TAKASAGO)

405A3-MG2-890

Unavailable

1

CHAIN SET, DRIVE (520SO-102LE) (TAKASAGO) This part replaces 405B3-KL4-700.

405A3-MG2-890

Unavailable

2

CASE, DRIVE CHAIN

40510-KL4-000

Unavailable

3

STAY, TENSIONER

50143-MA0-770

Unavailable

4

GUARD, PILLION STEP (NOT AVAILABLE)

50720-MG2-000

Unavailable

5

SWINGARM ASSY., RR.

52100-KT4-670

Unavailable

6

BUSH, PIVOT THRUST

52109-430-300

$16.01

7

COLLAR, RR. SWINGARM CENTER

52141-KK0-000

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

9

SLIDER, CHAIN

52155-KK0-771

$39.02

10

GUARD, DRIVE CHAIN

52156-KB9-000

$29.39

11

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

12

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

13

SLIDER, CHAIN

52170-KK0-771

$112.25

14

COLLAR, CHAIN SLIDER

52171-MC4-000

$4.99

15

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

16

MARK, SWINGARM

87121-KL3-760

Unavailable

17

MARK, TIRE CAUTION

87505-KT4-770

Unavailable

18

MARK, DRIVE CHAIN CAUTION

87509-KG0-650

Unavailable

19

BOLT, RR. SWINGARM PIVOT

90121-KL4-000

$93.30

20

NUT, U (14MM)

90305-GE8-003

$3.86

21

WASHER (6X20)

90512-300-000

$3.08

22

WASHER (6X9)

90513-323-000

$1.84

23

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

23

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

24

SCREW, TAPPING (6X12)

93901-26110

$1.49

25

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

25

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

26

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

26

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

27

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

27

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

28

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

28

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

29

FITTING, GREASE (B.76S)

96201-80000

$2.56
