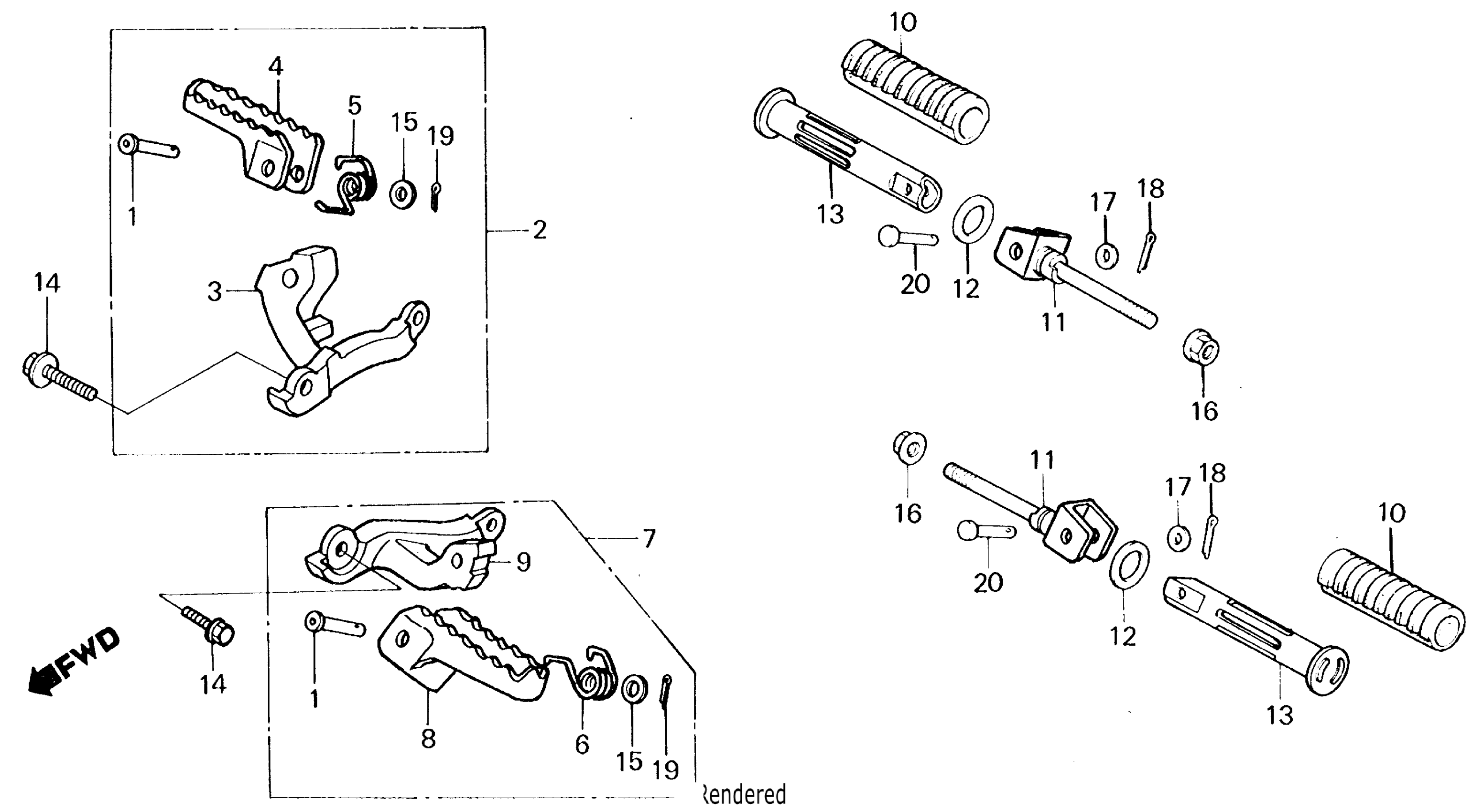

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOIN

50603-KL4-000

$6.75

2

ARM ASSY., R. STEP *NH105* (MAT BLACK) (NOT AVAILABLE)

50610-KL4-770ZA

Unavailable

3

ARM, R. STEP *NH105* (MAT BLACK) (NOT AVAILABLE)

50615-KL4-000ZA

Unavailable

4

STEP, R.

50616-KK0-000

Unavailable

5

SPRING, R. STEP RETURN

50617-KK0-770

$5.96

6

SPRING, L. STEP RETURN

50618-KK0-770

$5.96

7

ARM ASSY., L. STEP *NH105* (MAT BLACK) (NOT AVAILABLE)

50620-KL4-770ZA

Unavailable

8

STEP, L.

50626-KK0-000

Unavailable

9

ARM, L. STEP *NH105* (MAT BLACK)

50642-KL4-000ZA

Unavailable

10

RUBBER, PILLION STEP This part replaces 50710-KB7-000.

50710-MK5-000

$6.58

10

RUBBER, PILLION STEP

50710-MK5-000

$6.58

11

BRACKET, PILLION STEP

50711-435-000

Unavailable

12

WASHER, PILLION FOOTPEG

50712-405-000

$3.26

13

BAR, PILLION STEP

50715-KL4-000

Unavailable

14

BOLT, FLANGE (10X30)

90211-KF0-000

Unavailable

15

WASHER (10.2MM)

90401-430-000

$1.64

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

18

PIN, COTTER (1.6X25)

94201-16250

$1.49

19

PIN, COTTER (2.0X15)

94201-20150

$1.49

20

PIN A, PILLION STEP

95015-81000

$2.21
