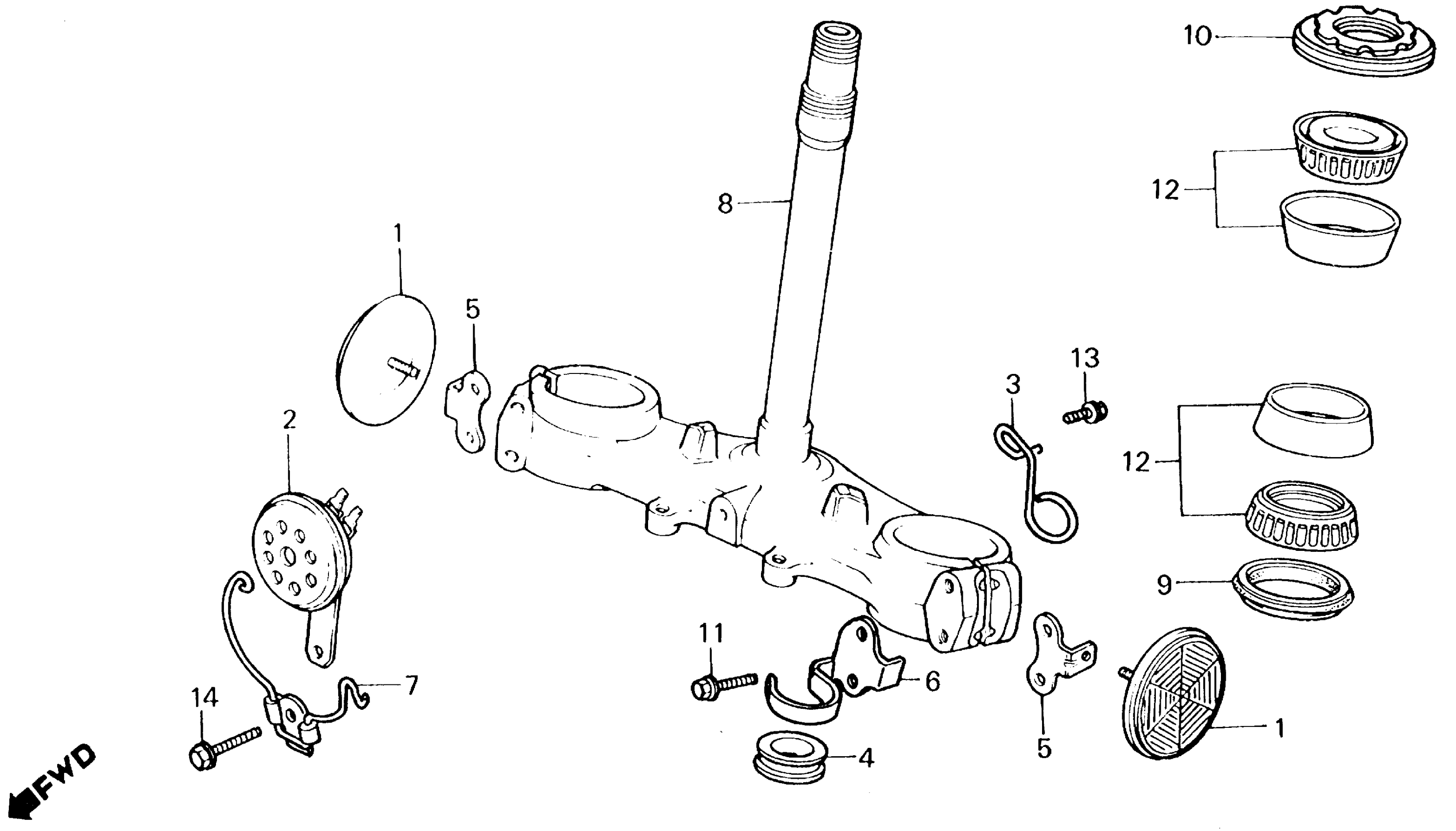

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 STEERING STEM Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

1

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

2

HORN This part replaces 38110-HC4-731.

38110-HC4-732

$40.90

2

HORN This part replaces 38110-KL4-671.

38110-HC4-732

$40.90

3

CLAMP, SPEEDOMETER CABLE

45465-KB7-700

Unavailable

4

GUIDE, CABLE (INNER)

45466-KA4-000

$6.51

5

STAY, FR. REFLECTOR

45467-KL4-670

Unavailable

6

GUIDE, BRAKE CABLE (LOWER)

45468-KL4-670

Unavailable

7

GUIDE, HORN

45473-KG0-000

Unavailable

8

STEM, STEERING

53200-KL4-670

Unavailable

9

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

10

THREAD, STEERING HEAD TOP (NOT AVAILABLE)

53220-KA4-700

Unavailable

11

BOLT, FLANGE (8X40)

90107-KF0-000

$4.48

12

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

12

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

13

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

13

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

14

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

14

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
