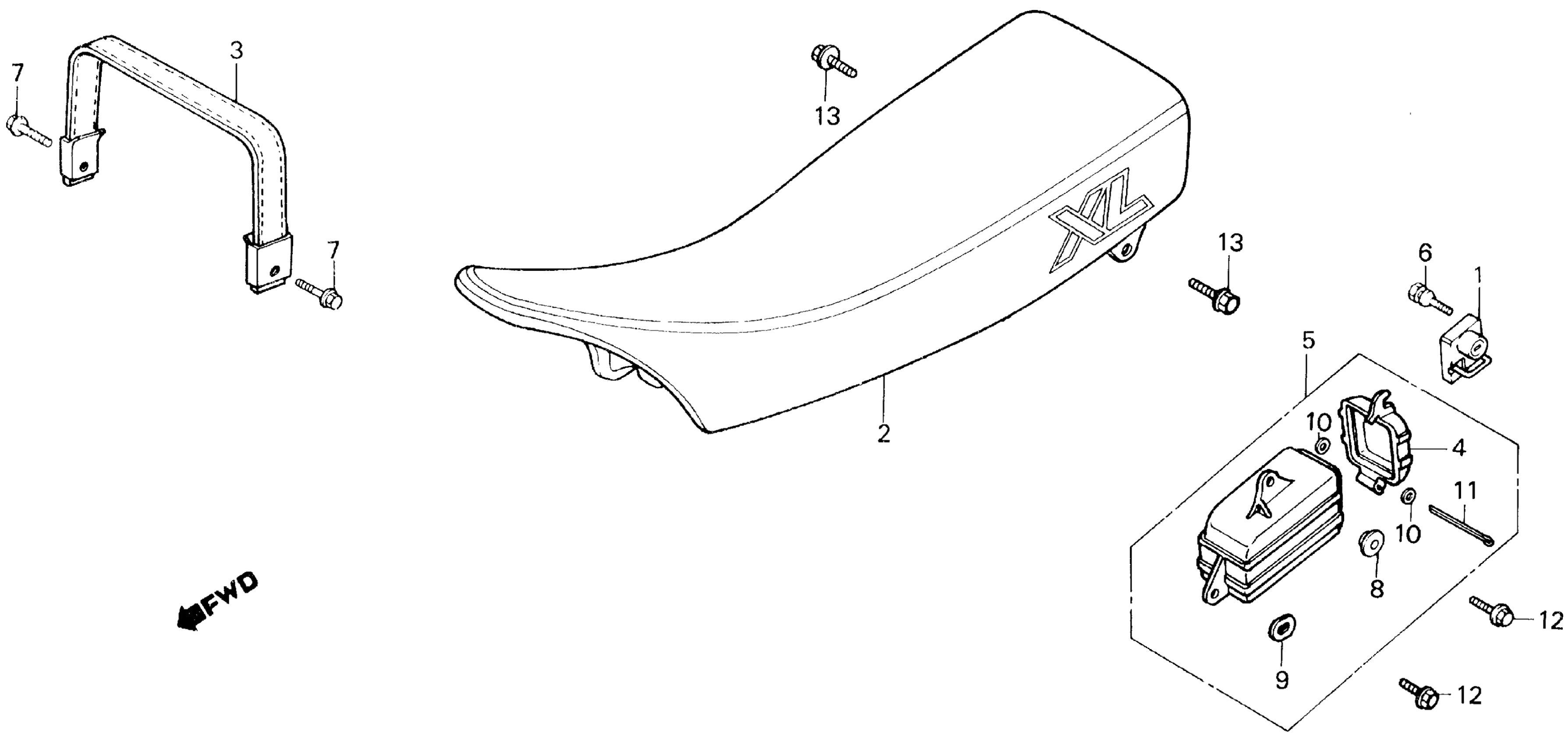

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 SEAT Diagram
#
Description
Price
1
HOLDER ASSY., HELMET
50710-MG2-003
Unavailable
2
SEAT ASSY., DOUBLE *PB5L* (FIJI BLUE) (NOT AVAILABLE)
77200-KT4-670ZA
Unavailable
3
BELT COMP,SEAT This part replaces 77210-KL4-770ZA.
77210-KL4-505
Unavailable
4
CAP, TOOL BOX
83504-KL4-000
Unavailable
5
BOX ASSY., TOOL
83510-KL4-000
Unavailable
6
BOLT B, SPECIAL (6MM)
90107-195-860
Unavailable
6
BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.
90107-195-860
Unavailable
7
BOLT, FLANGE (6X16)
90172-MG3-000
Unavailable
