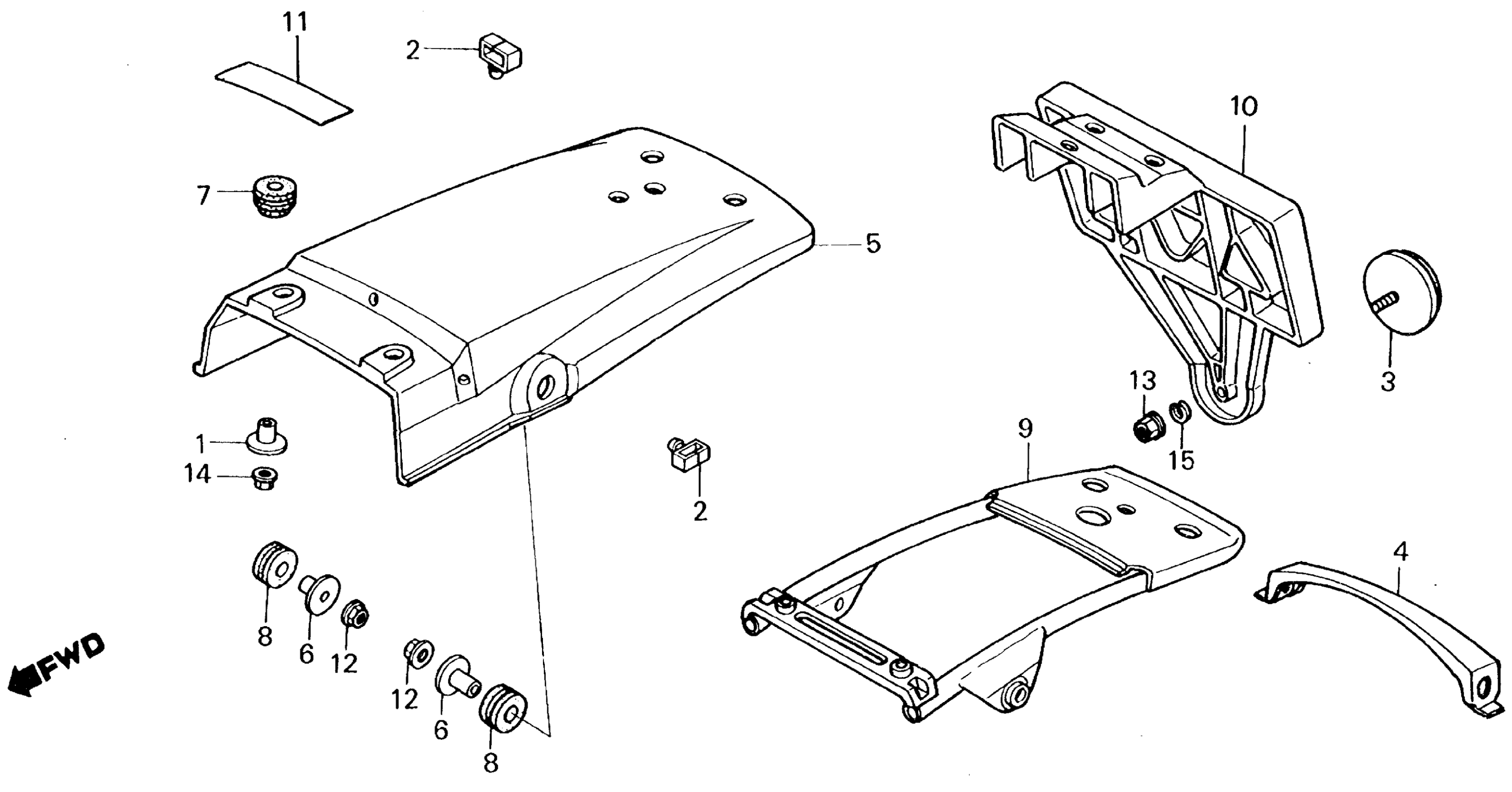

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 REAR FENDER Diagram

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA4-000.

19052-MB0-000

$6.34

COLLAR, RADIATOR SETTING

19052-MB0-000

$6.34

GROMMET, CABLE

32985-422-000

Unavailable

REFLECTOR, RR. REFLEX

33741-HB9-641

$13.66

REFLECTOR, RR. REFLEX This part replaces 33741-148-872.

33741-HB9-641

$13.66

SUB-BRIDGE

50261-KL4-670

Unavailable

FENDER, RR. *NH138* (SHASTA WHITE) (NOT AVAILABLE)

80100-KL4-670ZE

Unavailable

COLLAR (8X12)

80101-KB7-600

$5.90

RUBBER, RR. FENDER

80103-MG2-000

$3.04

RUBBER A, RR. FENDER

80105-028-000

$5.28

PATCH, RR. FENDER

80110-KL4-670

Unavailable

BRACKET, NUMBER PLATE

84701-KL4-670

Unavailable

MARK, ACCESSORIES & LOADING CAUTION

87512-KT4-670

Unavailable

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (8MM)

90309-428-731

$3.35

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
